Pack

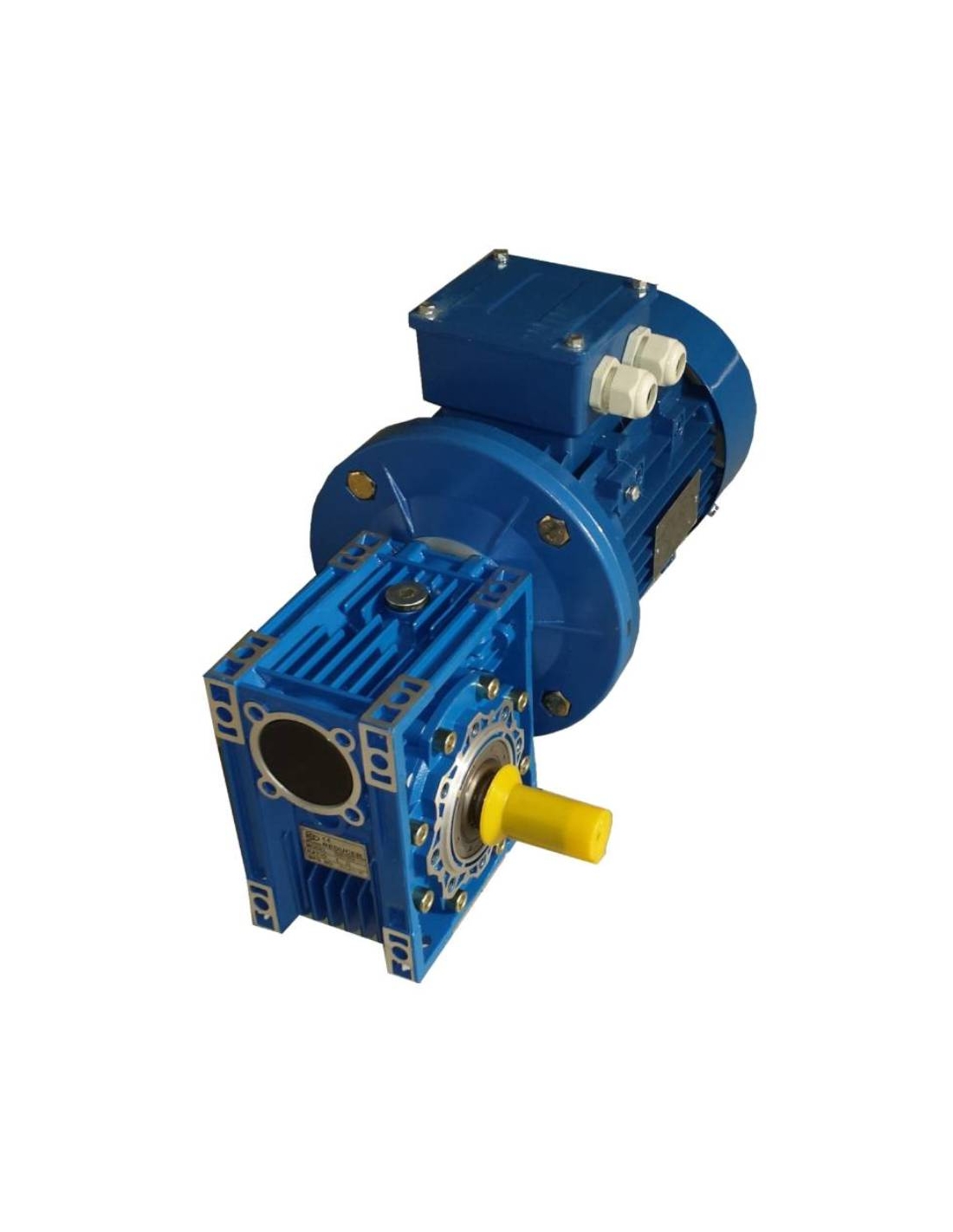

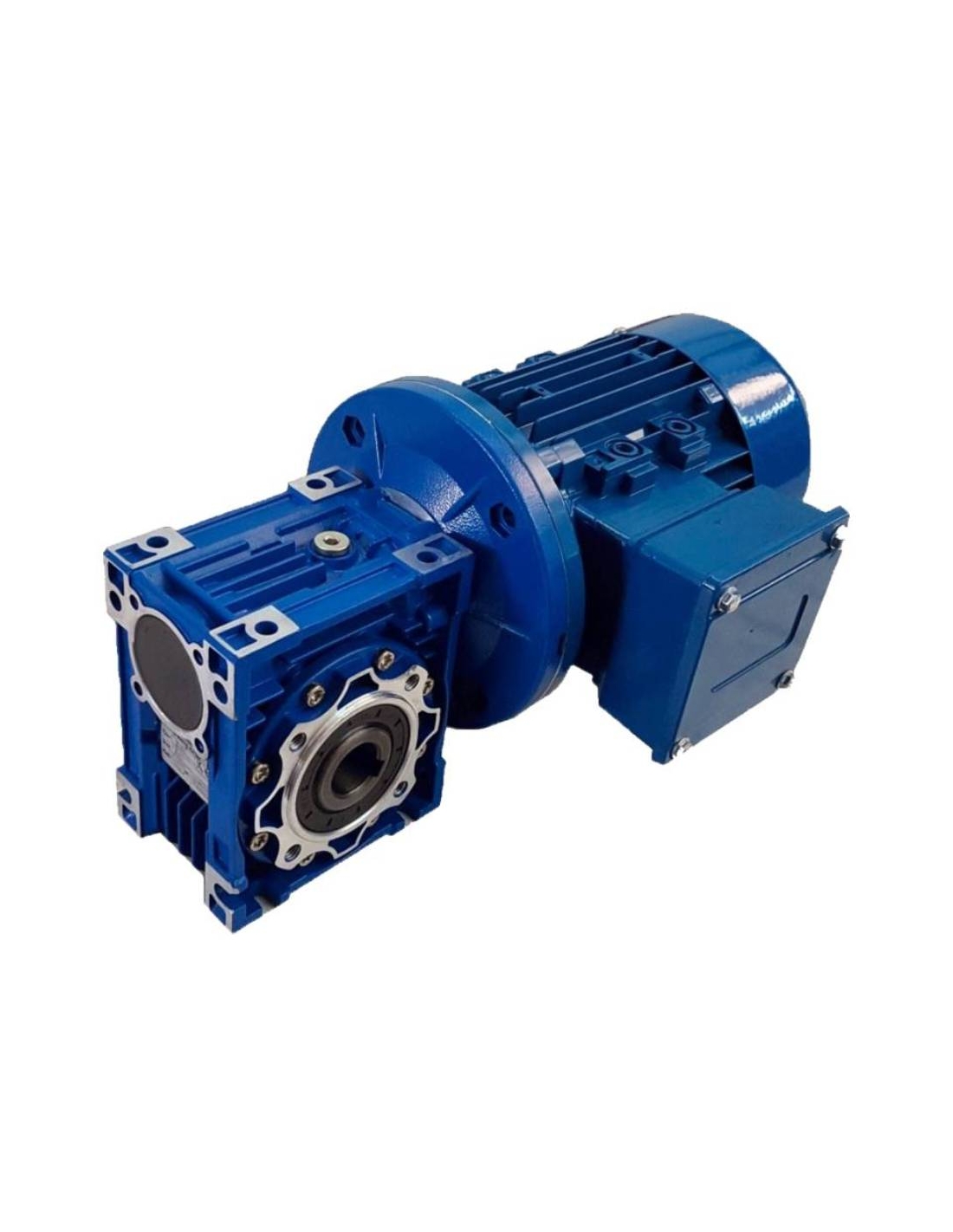

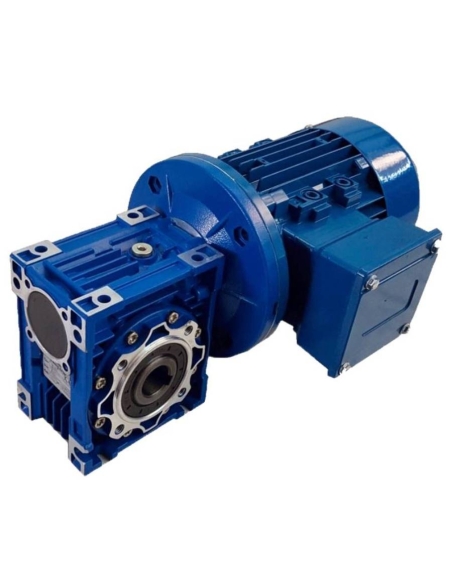

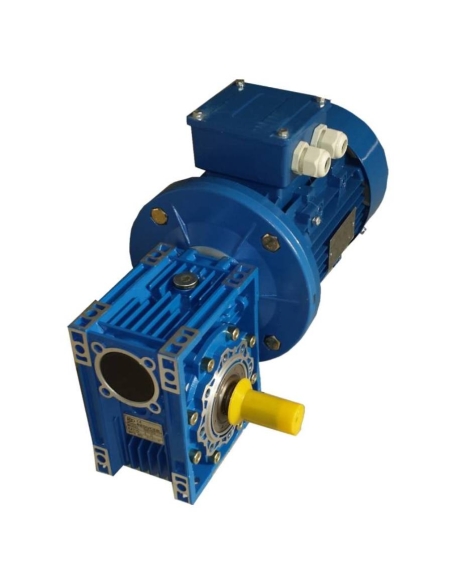

Three-phase Gear motor 0.55kW 0.75HP 230/400Vac 1500 rpm ratio 50 T75 (28rpm)

€315.37 Tax included

260.64 tax excl.

PK-9MR0750055504

Three-phase Gear motor 0.55kw 0.75HP 230/400Vac, reducer size 75 with reduction ratio I:50 that allows output turns of approximately 28rpm.

Motor: three-phase 0.55Kw 230/400Vac 1500rpm
Reducer : size 75 I:50.
Output laps: 28
For output shaft: Ø28mm

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

This pack contains

Three-phase motor 0.55Kw 0.75hp 230/400V 1500 rpm IE1 Flange B5

Three-phase motor 0.55Kw 0.75PS 230/400V 1500 rpm IE1 Flange B5

€119.69

Endless crown reducer Size 75 Flange PAM 200/19 - Motor housing 80 B5 Reduction ratio-50

€195.68

1 question about the product

Privacy

Shipments

Returns

Three-phase Gear motor 0.55kw 0.75HP 230/400Vac, reducer size 75 with reduction ratio I:50 that allows an output of approximately 28rpm at its output.

Engine technical characteristics:

Three-phase motor.
Nominal voltage: 230/400Vac 50/60Hz.
Rated power: 0.55Kw. (0.75HP).
Revolutions: 1500 rpm .

Technical characteristics of the reducer:

Reducer type: crown worm.
Reducer size: 75.
Reduction ratio: 50.
Final turns: 28 rpm .
Output torque: 129 Nm.
Service factor: 1.6
For output shaft: Ø28mm

The output shaft is not included in the supply, it must be ordered separately. As with any asynchronous electric motor, the installation of a motor protector is mandatory to avoid damage due to overload.

Engine intended to be used exclusively as a spare part for machinery and/or automatic systems .

For more information you can download the technical sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the installation site

Dimensions worm gear crown

Gearbox dimensions worm gear crown gear

Download (1.75MB)

Gearbox replacement guide

Guide for gearbox replacement worm gear corona

Download (2.3MB)

Questions

Question

Bonjour,

Quelle est la marque de vos moto réducteurs ? Et est ce que le réducteur est réversible (cas de charges entrainantes) ?
Merci d'avance
Claude Saint Dizier

Answer

Bonjour,

L'ensemble est composé de deux produits, si vous entrez dans chacun d'entre eux séparément, vous pouvez accéder aux caractéristiques techniques.

Ils peuvent être inversés et conviennent aux mouvements linéaires, mais ce type de réducteur n'est pas conçu pour soulever des charges suspendues dans l'air,
vérifiez néanmoins qu'ils sont conformes à leurs spécifications.

Cordialement

Claude on 01/18/2025 07:57:53
