Three-phase gear motor 0.55kW 0.75hp 230/400Vac 1400 rpm ratio 10 T50 (140rpm)
Three-phase gear motor 0.55kW 0.75hp 230/400Vac 1400 rpm ratio 10 T50 (140rpm)
Three-phase gear motor 0.55kW 0.75hp 230/400Vac 1400 rpm ratio 10 T50 (140rpm)
Three-phase gear motor 0.55kW 0.75hp 230/400Vac 1400 rpm ratio 10 T50 (140rpm)

Three-phase gear motor 0.55kW 0.75hp 230/400Vac 1500 rpm ratio 10 T50 (140rpm)

€218.63 Tax included

€180.69 tax excl.

Three-phase gear motor 0.55kw 0.75Cv 230/400Vac, reducer size 50 with I:10 reduction ratio that allows output turns of approximately 140rpm.

  • Motor: three-phase 0.55Kw 230/400Vac 1500rpm
  • Reducer: size 50 I:10.
  • Starting laps: 140
  • For output shaft: Ø25mm

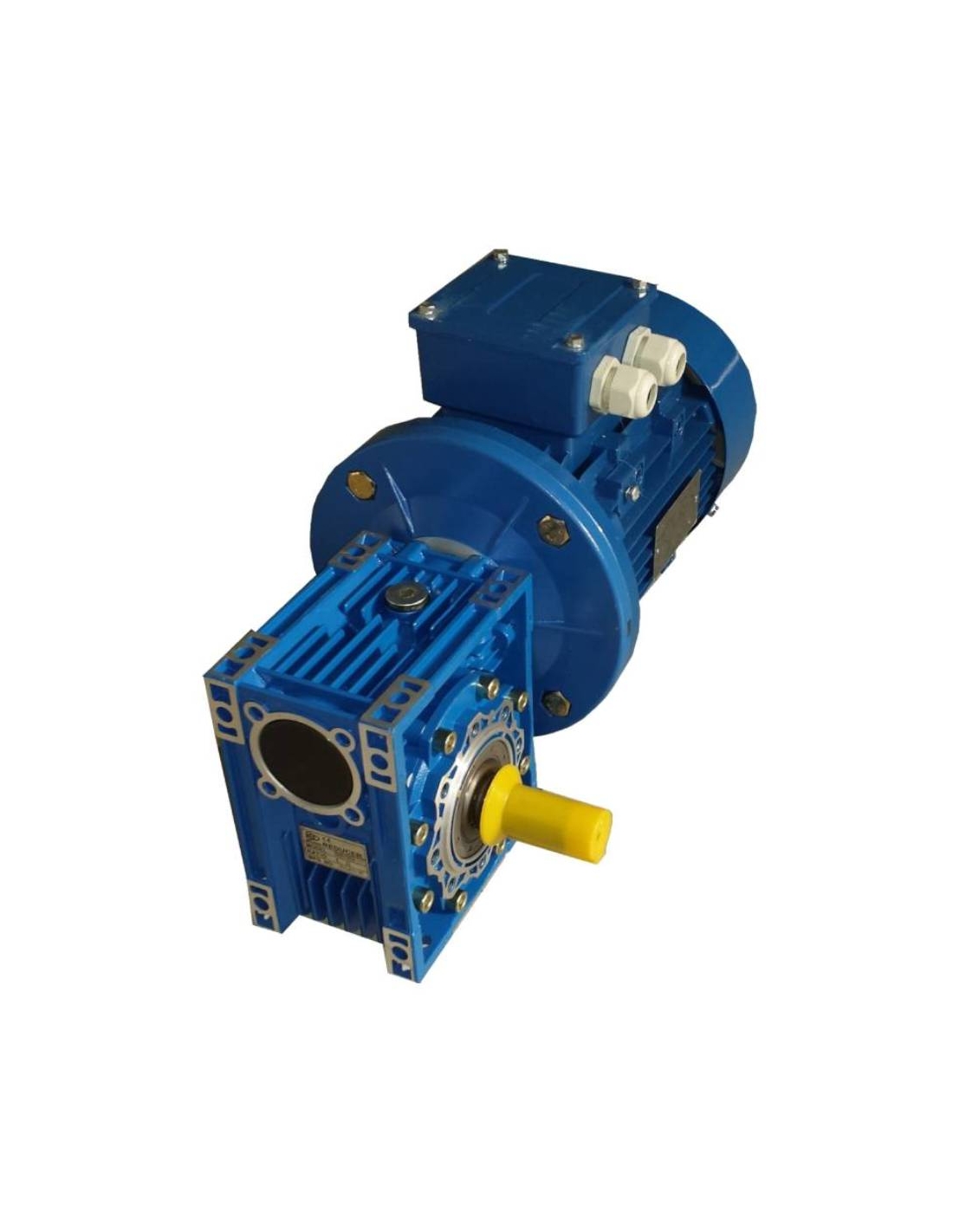

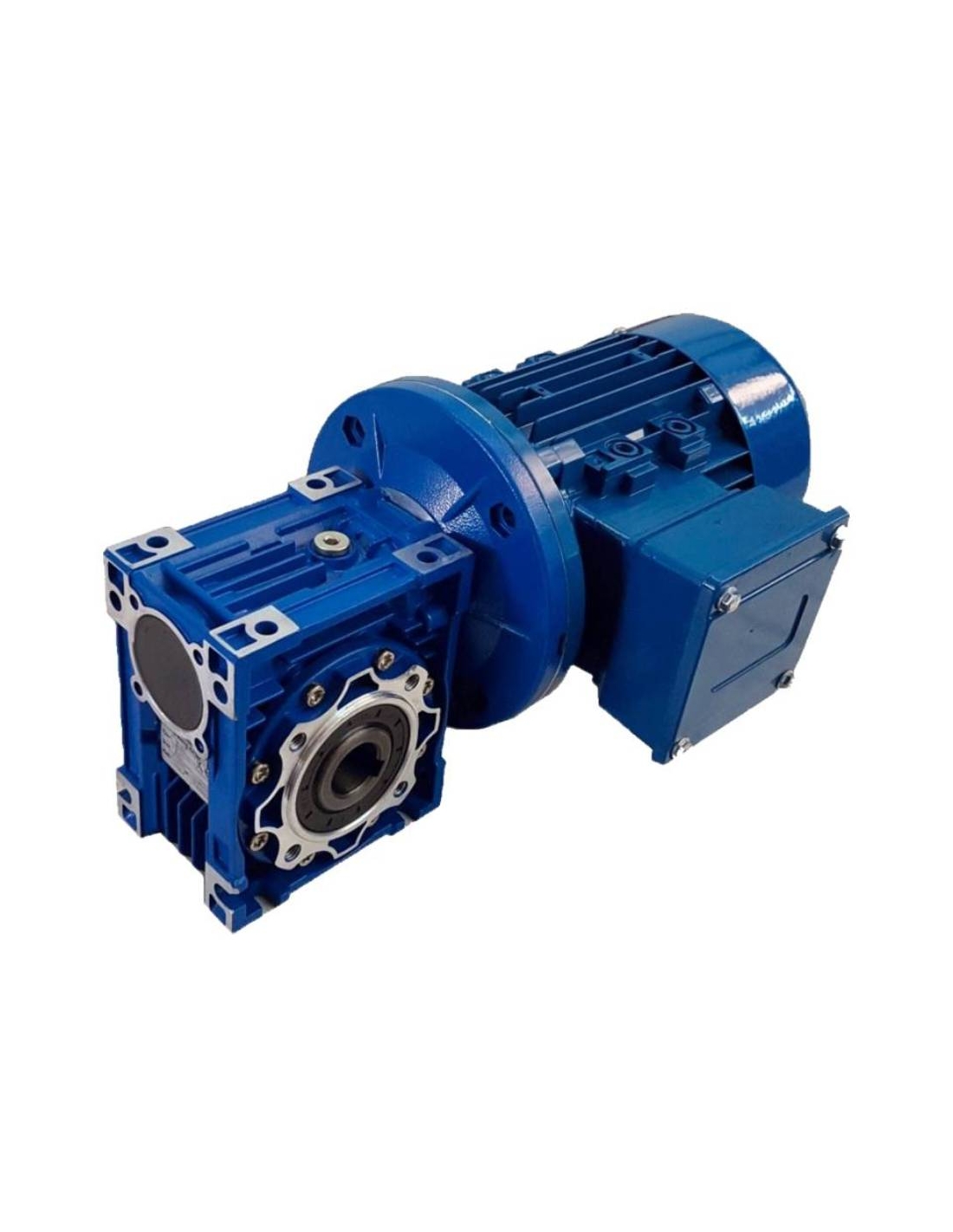

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

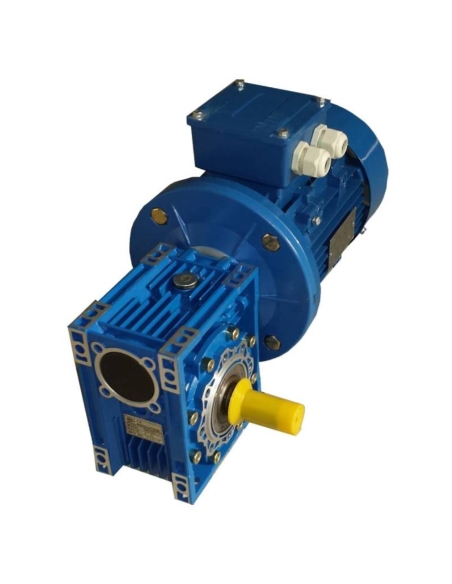

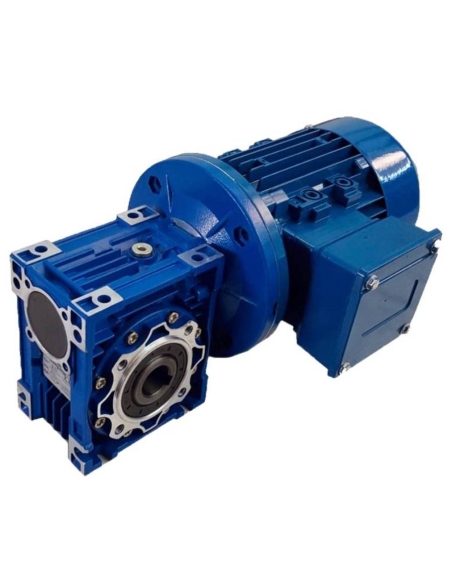

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.


Three-phase gear motor 0.55kw 0.75Cv 230/400Vac, reducer size 50 with I:10 reduction ratio that allows an output of approximately 140rpm at its output.

Engine technical characteristics:

  • Motor: Three-phase.
  • Rated voltage: 230/400Vac 50/60Hz.
  • Nominal power: 0.55Kw. (0.75HP).
  • Revolutions: 1500 rpm.

Technical characteristics of the reducer:

  • Type of reducer: worm gear crown.
  • Reducer size: 50.
  • Reduction ratio: 10.
  • Final laps: 140 rpm.
  • Output torque: 32 Nm.
  • Service factor: 2.2
  • For output shaft: Ø25mm

The output shaft is not included in the supply, it must be ordered separately.


To expand the information you can download the technical sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the place of installation
