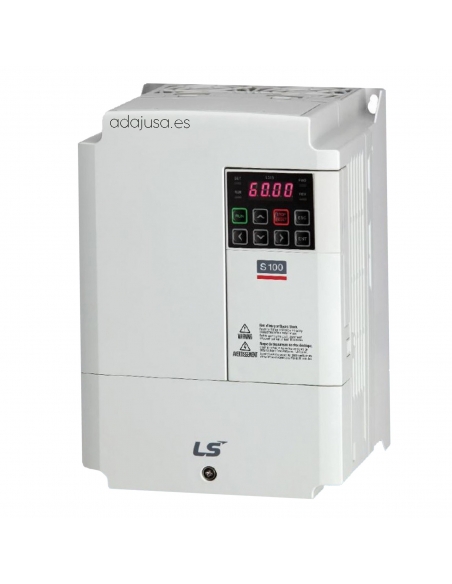

Three-Phase Frequency Converter 7.5Kw series S100 - LS

Three-phase frequency converter 400V 7.5Kw (10HP), integrated RFI filter and programming panel.

Frequency converters (VFDs) allow for the control and speed variation of standard three-phase motors. They are only suitable for connection to AC motors.

This frequency converter model already has a built-in RFI filter to prevent electromagnetic interference that could occur with other electronic components.

The front button panel includes all the necessary buttons for motor control and a potentiometer for speed regulation. It can also be controlled from pushbuttons and an external potentiometer.

Fixing can be done using screws to the mounting plate or using a DIN rail.

The S100 series incorporates "Safe Stop" function inputs and can be used in either "constant torque" or "variable torque" mode.

The maximum output frequency of the S100 series inverters is 400Hz. Special firmware is available to achieve 1000Hz, which is very useful for machine tools with high motor speeds. The frequency converter must be ordered with this firmware before shipment.

The LS brand S100 series of frequency converters incorporates:

• You enter the "Safe Stop" function.
• 5 Programmable speeds with activation via inputs.
• RS485 communication.
• Integrated RFI filter.
• Programming panel integrated into the front.
• Integrated braking unit.
• Constant torque and variable torque operation.

Technical specifications summary:

• Manufacturer: LS (LG).
• Reference: LSLV0075M100-4EOFNA
• Nominal voltage/frequency: three-phase 380 to 480Vac - 50/60Hz.
• Maximum power of constant torque motor (Kw): 7.5 (10HP).
• Maximum power of variable torque motor (Kw): 11 (15CV).
• Rated three-phase output current constant torque (A): 16.
• Rated output three-phase current variable torque (A): 23.
• Nominal frequency (Hz): 1.0 to 400 (sensorless vector 0 to 120). With special firmware 1000Hz.
• Nominal input current, heavy duty (A): 17.5.
• Nominal input current, normal duty (A): 25.4.
• RFI Filter: Built-in.
• Frequency tolerance +/- 5%.
• Control system: SPWM (Sinusoidal Pulse Width Modulation. Freq: 1Khz-15Khz.
• Torque characteristics: Including torque compensation and slip compensation, the starting torque can be 200% at 0.5Hz.
• Overload capacity: 150% of rated current for 1 minute.
• Control method: V/f, slip compensation, sensorless vector.
• V/f Curve: Linear, Quadratic, User-defined V/f.
• Overload capacity:
  • Constant torque: 150% of rated current 60 seconds.
  • Variable torque: 120% of rated current 60 seconds-
• Stall protection level: Adjustment from 20 to 200% of rated current.
• Frequency adjustment: by keys, analog signal or external signals.
• Start/stop signal: by means of keys or external signals.
• Multifunction input signal.
• Multifunction exit indicator.
• PNP/NPN selectable input signal.
• PLC function (Simple sequence operation).
• Integrated "Safe torque OFF (STP)" safety function. Safe stop.
• Selectable rotary/stationary auto-tuning to optimize engine performance.
• Torque Boost: Manual/Automatic.
• Process control: Advanced PID.
• Direct current injection braking.
• Inputs/outputs: 5 programmable.
• Analog input: 0..10Vdc/4-20mA.
• Bug history.
• Monitoring and parameterization via PC.
• Protection: Self-diagnosis, overvoltage, overcurrent, low voltage, overload, overheating, external fault, electronic thermal current.
• Cooling: forced ventilation.
• Dimensions: Height 232mm x Width 160mm x Depth 140mm
• Protection level: IP20

For other powers or specifications, please consult.

Professional use material, install in compliance with current regulations at the place of installation.
