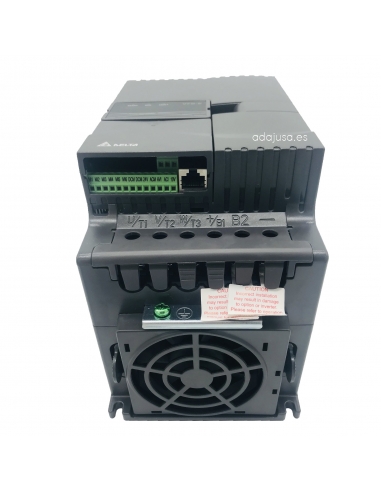

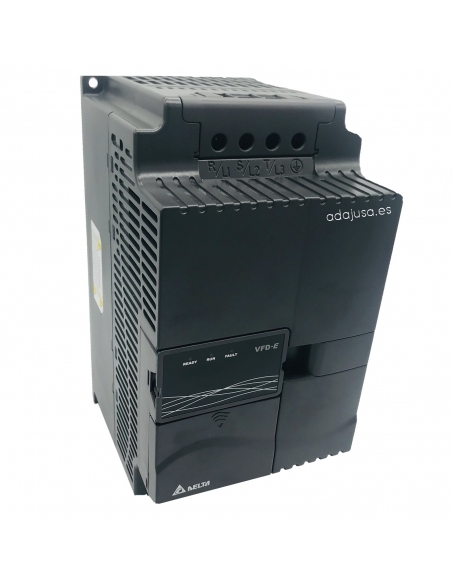

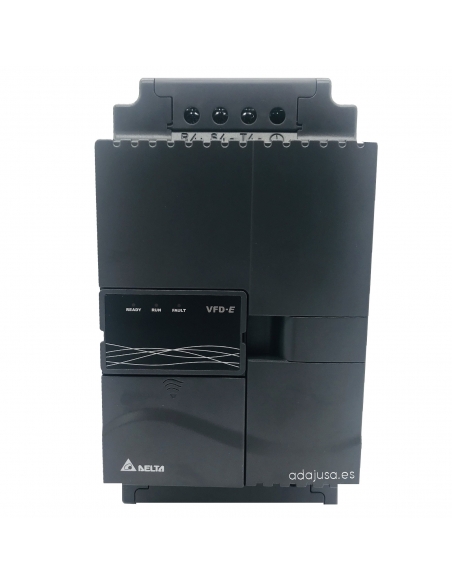

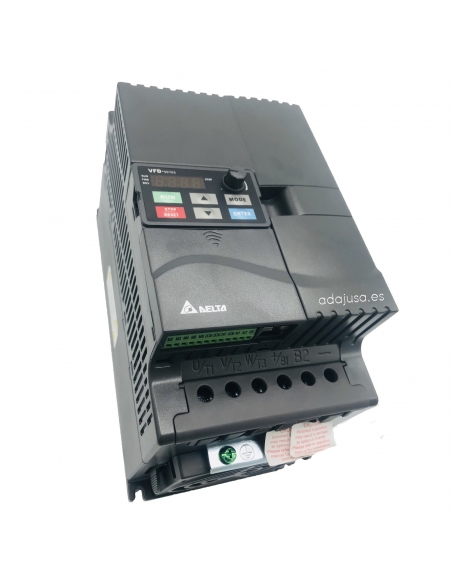

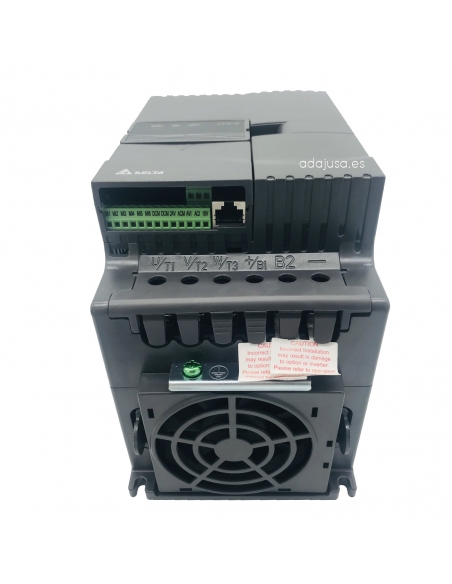

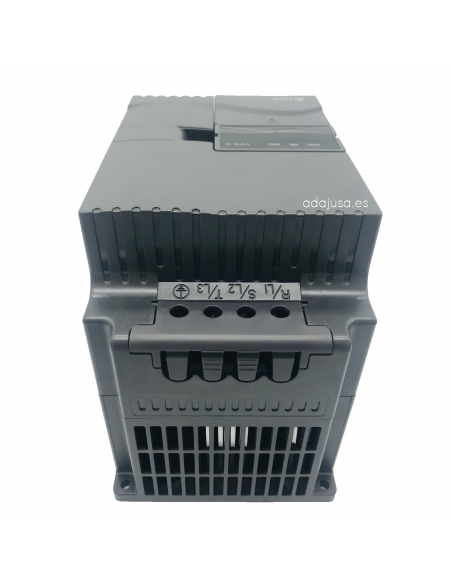

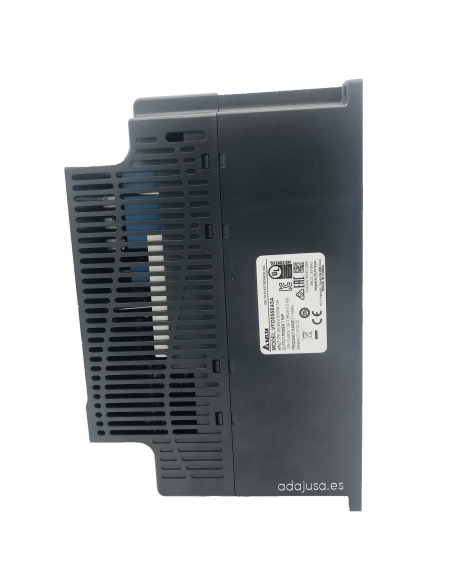

Three-phase frequency inverter 400V 5.5Kw (7.5CV) vectorial, RFI filter and integrated programming panel
The frequency converters allow the control and speed variation of standard three-phase motors
This model of frequency converter already has a built-in RFI filter suitable for the CE market, to avoid electromagnetic interference that could occur with other electronic components.

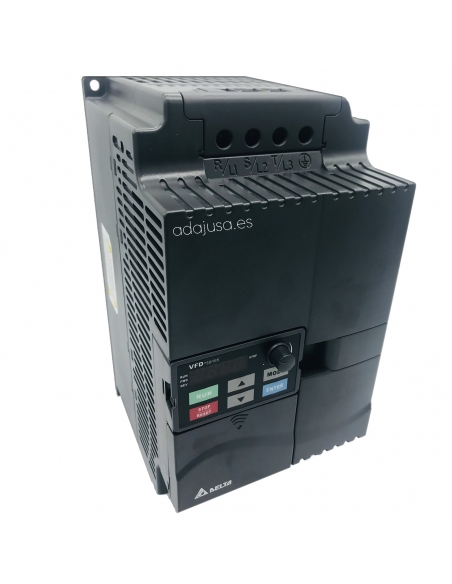

In the front panel, it incorporates all the necessary buttons for motor control and a potentiometer for speed regulation. It can also be controlled from push buttons and external potentiometer. The front keypad (control panel) is removable, i.e. it can be detached from the frequency converter, and by means of a cable (not included in the scope of supply) fixed on a keypad. The programming panel is included in the scope of delivery.
The frequency converter includes the PLC function (PLC), you can use the inputs and outputs of the frequency converter. Input and output extension cards are available.
The E series of frequency converters of the brand DELTA incorporates:
- Vector control (sensorless).
- Potentiometer.
- 15 programmable speeds with activation by inputs.
- possibility of PID control.
- RS485 communication.
- Integrated RFI filter.
- Removable programming panel.
- Built-in automaton.
- Supports control of communication cards and inputs/outputs.
- Braking module included.
Summary of technical specifications:
- Manufacturer: DELTA.
- Rated voltage/frequency: three-phase 380-480Vac +/-10% - 50/60Hz.
- Max. motor power (Kw): 5,5.
- Max. motor power (hp): 7,5.
- Rated output current (A): 13.
- Rated frequency (Hz): 1.0 to 600.
- Rated input current (A): 14.
- RFI filter: Built-in.
- Frequency tolerance +/- 5%.
- Control system: SPWM (Sinusoidal Pulse Width Modulation. freq.: 1Khz-15Khz. Open loop vector control (closed loop optional).
- torque characteristics: Including torque compensation and slip compensation, the starting torque can be 150% at 5Hz.
- Overload capability: 150% of rated current for 1 minute.
- DC injection braking: Starting frequency 0.1 to 600Hz. Output 0 to 100% of rated current. Duration: 0 to 60 sec.
- Regenerative braking torque: Approx. 20% (up to 125% with optional braking resistor or external braking unit). Braking module incorporated in 230V class equipment from 1.5Kw. Braking module incorporated in 460V class equipment from 2.2 Kw.
- V/F model: Adjustable V/F model.
- Blocking protection level: Adjustment from 20 to 250% of rated current.
- Frequency adjustment: by means of keys, potentiometer or external signals.
- Start/stop signal: via keys or external signals.
- Multifunction input signal.
- Multifunction output indicator.
- Optional input and output expansion cards.
- Integrated PLC.
- Protection: Self-diagnostics, overvoltage, overcurrent, overvoltage, undervoltage, overload, overheating, external fault, electronic thermal current, earth leakage, IGBT short-circuit, PTC.
- Cooling: forced ventilation.
- Programming and control panel: detachable from the unit.
- Dust protection: Grade 2.
- Dimensions: Height 260mm x Width 130mm x Depth 169 mm.
Other powers or specifications on request.
Material for professional use, install in compliance with the regulations in force at the installation site.
