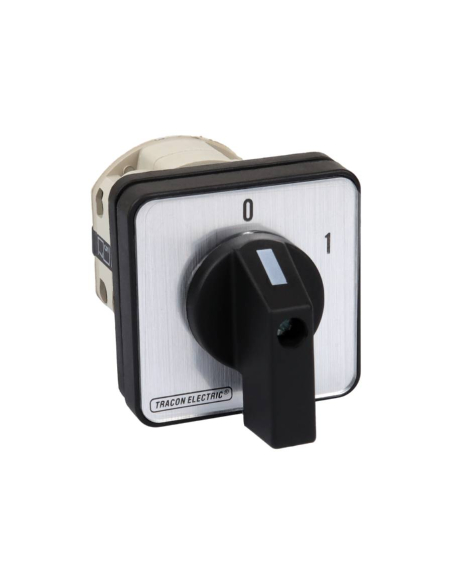

Three-phase cam switch 3 poles 63A ON-OFF black handle (90º)

Three-phase cam switch 3 poles 63A ON-OFF black handle (90º)

€33.98 Tax included

€28.08 tax excl.

Rotary cam switch, 3-pole 63A main switch, 90º rotary control, with two positions 0-1. Front plate size 64x64mm in grey colour and handle in black.

Suitable for interrupting, connecting and switching electrical circuits, as well as direct starting of motors and main switch in machines. Maximum motor power 18.5kW.


Reference: TK-639/3



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase ON-OFF cam switch, 3 poles 63A for inductive loads (electric motors) and general control. 90º rotary knob, with two positions 0-1. 64x64mm grey plate and black handle. This switch can start motors up to a maximum power of 18.5kW 400Vac.

This series of rotary switches has been manufactured in accordance with EN 60947-1, EN 60947-3, EN 62321 standards, which enables them to meet all safety requirements. Flush mounting with IP-42 protection degree.



TK-209-3




Technical characteristics:
  • Manufacturer/Supplier: TRACON
  • Reference: TK-639/3
  • Number of poles: 3
  • Supply voltage: 380-420V
  • Rated insulation voltage: 690V
  • Nominal intensity: 63A
  • Number of maneuvers/hour: 60
  • Mechanical durability: 150,000 maneuvers
  • Electrical durability: 100,000 operations
  • Ambient temperature: -5 to +55ºC
  • Protection class: IP42



Table of intensities and powers of use:

  • AC-21A 400V usage category: 63A
  • AC-22A 400V usage category: 63A
  • AC-23A 400V usage category: 37A
  • AC-2 400V usage category: 37A
  • AC3 400V usage category: 36A
  • AC-4 400V usage category: 15A
  • Assigned power category AC-23A 400V: 30kW
  • Assigned power category AC-2A 400V: 30kW
  • Assigned power category AC-3A 400V: 18.5kW
  • Assigned power category AC-4A 400V: 7.5kW






L = 72.2mm; A = 66mm; a = 64mm; b = 64mm; d=48mm






Professional use material, install in compliance with the regulations in force at the place of installation.
