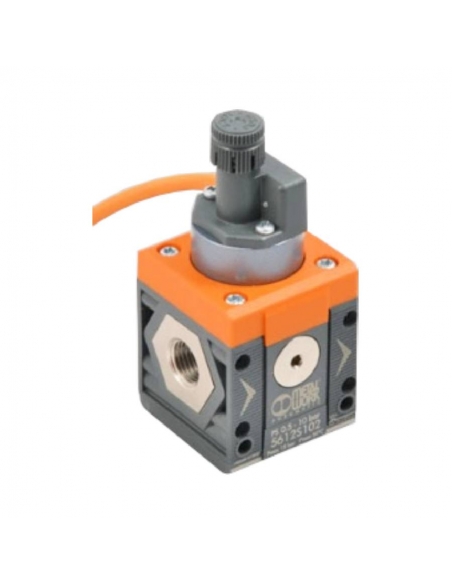

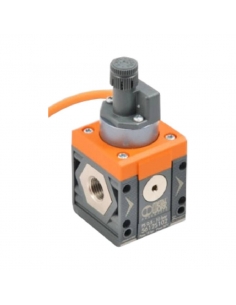

Pressure switch Size 2 1/2 2m cable Syntesi - Metal Work

€76.01 Tax included

€62.82 tax excl.

5624S104

1/2" size 2 pressure switch, presents a high degree of miniaturization. It is a device whose function is to open or close circuits depending on the adjusted pressure.

Reference: 5624S104

syntesi pressure switch diagrammetal work logo

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/2" size 2 pressure switch, it has a high degree of miniaturization. They are ready assembled with a 2 m cable or with an M8 connector with a 300mm cable. The contact is of the switch type, so they can be normally open or closed. They can be regulated by means of a knurled push-lock knob.

Characteristic:
  • Manufacturer: Metal Work
  • Reference: 5624S104
  • Discharge threaded coupling: 1/2"
  • Maximum current / maximum voltage: 2A / 250V
  • Cable outer diameter: 4.9mm
  • Number and section of wires: 3 x 0.5mm²
  • Contacts: normally open (NO) and normally closed (NC)
  • Protection: IP65
  • pressure max. admitted:
      • bar : 13
      • MPa: 1.3
      • psi: 188
  • Flow rate of additional air intakes 6.3 bar (0.63 MPa; 91 psi) ΔP 1 bar (0.1 MPa; 14 psi): Nl/min 1500 - scfm 53
  • temperature at 10 bar ; 1MPa; 145psi°: -10÷+50
  • Fluid: Filtered air with or without lubrication, if lubrication is used it must be continuous.
  • Mounting position: In any position
  • Supplementary air intake, for pressure gauge or fitting: 1/4”, front and rear
  • Wall fixing screws: Number 2 M5 screws



Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Pressure gauge 50 1/8 0-12 Kgr plastic box
Gauges and measurement elements

Manometer 50 1/8 0-12 bar back plastic box - Metal Work

Metal Work
MWMP5318012
€5.71 (€4.72 tax excl.)
Pressure gauge Ø50 with plastic case. Pressure gauge to control the pressure of the machine to be used. Black plastic case and rear connection with G thread 1/8". The internal mechanisms are made of brass and bronze. With metal dial, graduation in bar and psi. Steel needle. Reference: Z33MP5318012 Representative image for illustrative purposes, the...

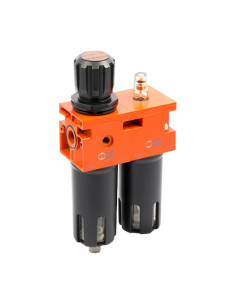

Metal filter group (Filter + Lubricator) Metal Work - ADAJUSA
