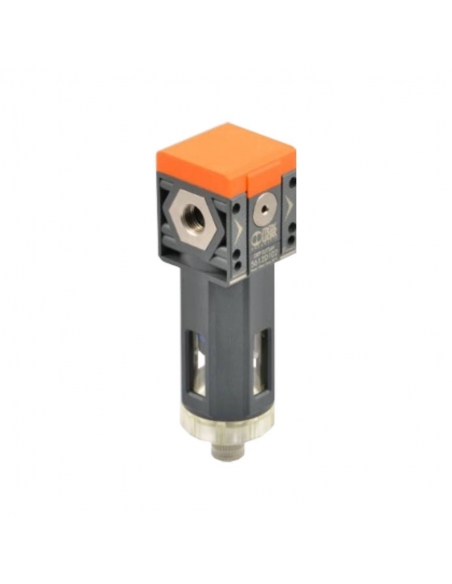

Filter filter 3/8 RMSA Size 2 Syntesi Metal Work - ADAJUSA

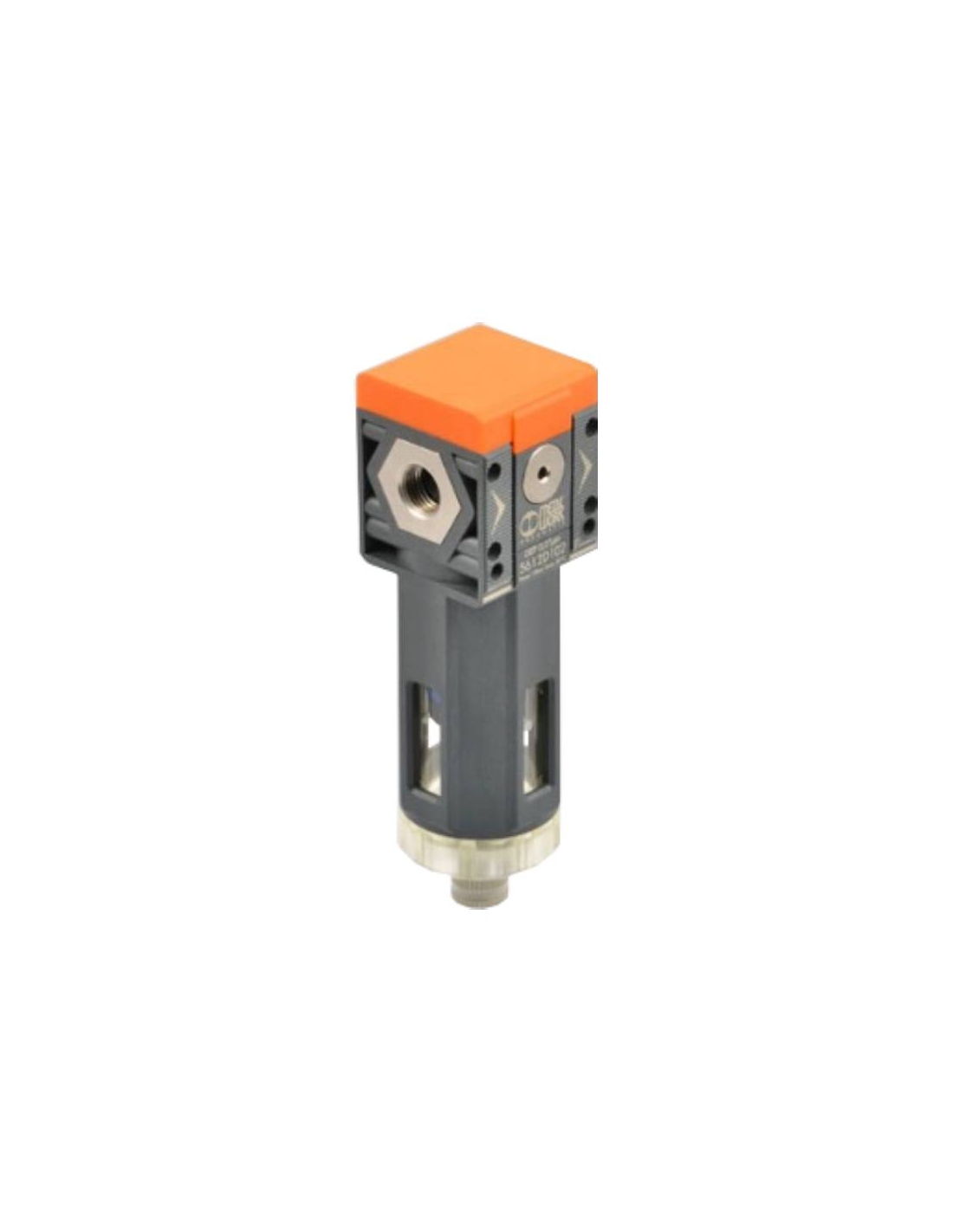

Filter Purifier 3/8 semi-automatic purge Syntesi series - Metal Work

Name: Filter Purifier 3/8 semi-automatic purge Syntesi series - Metal Work
Brand: Metal Work
SKU: 5623D103
Price: 104.67 EUR
Availability: InStock

€104.67 Tax included

86.5 tax excl.

5623D103

No queries yet, leave the first!

Privacy

Shipments

Returns

The job of the scrubber filter is to separate solid or liquid particles dispersed in the compressed air .
This separation is achieved thanks to the special filter element called "coalescing cartridge".

Product made of technopolymer specially indicated to eliminate traces of oil present in compressed air. In the front and rear there is a port that can be used as a pressure gauge, pressure switch or as an additional filter for the inlet air.

Characteristics:

Manufacturer: Metalwork
Manufacturer reference: 5623D103
Threaded drive: 3/8"
Group Size: Size 2
Filtered degree: 0.01 outlet air purity class ISO8573-1:1.7.2
Maximum inlet pressure (bar/Mpa/psi): 13 / 1.3 / 188
Flow at 6.3 bar (0.63 MPa; 91 psi) ( Nl/min): 620
Min/max temperature at 10 bar; 1MPa; 145psi: -10º to +50ºC
Weight: 483g
Condensation discharge type: RMSA
Fluid type: Compressed air or other inert gases
Cup capacity: 40cm³
Mounting position: Upright
Coupling for additional 1/4" front and rear air intakes
Flow rate for additional air intakes at 6.3 bar (Nl/min): 1500
Wall fixing screws: 2 M5 screws

Dimensions:

For other sizes or references: consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Productos grupo Syntensi

Download (6.54MB)

Combinations_Accessories Syntesi

Download (6.25MB)
