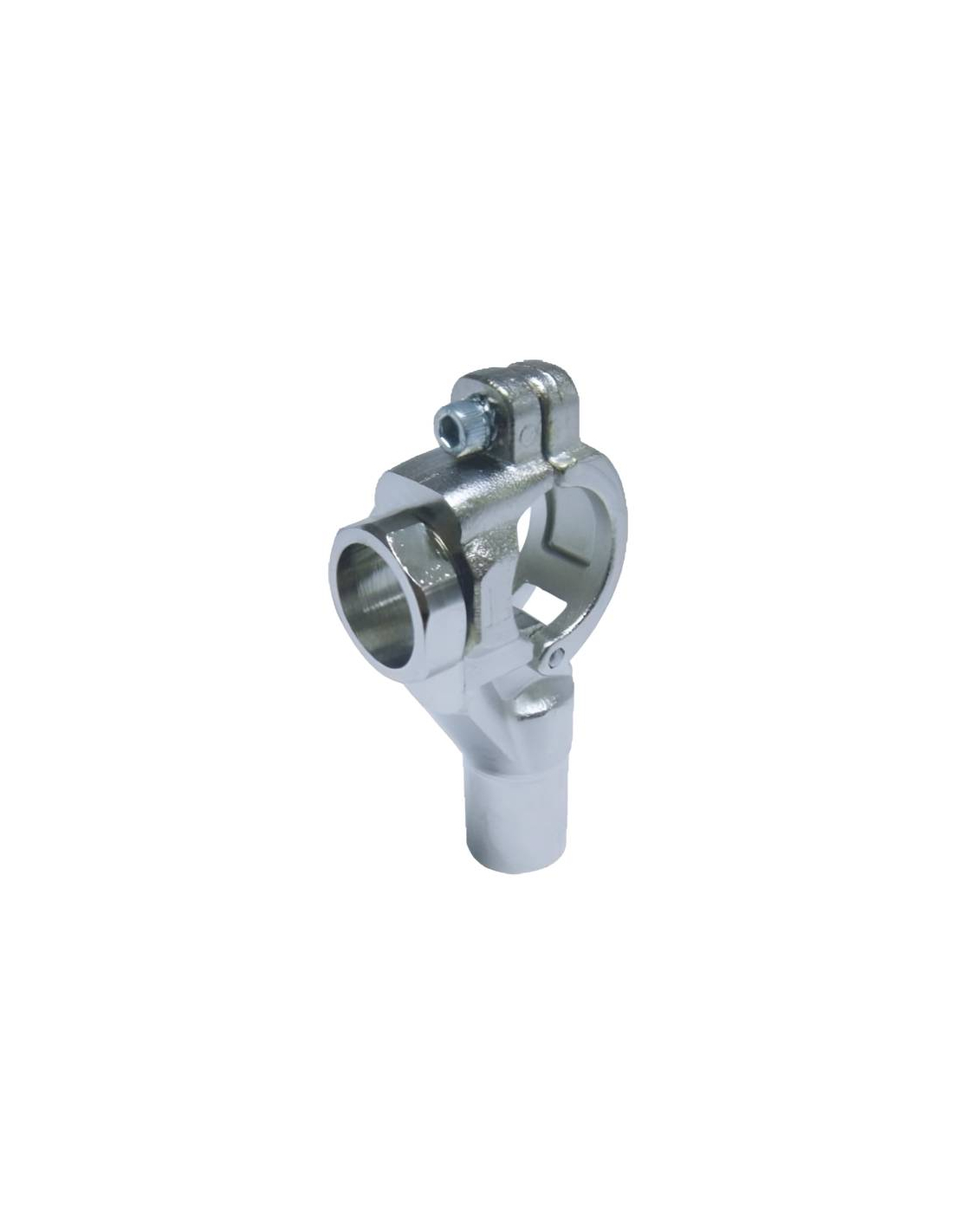

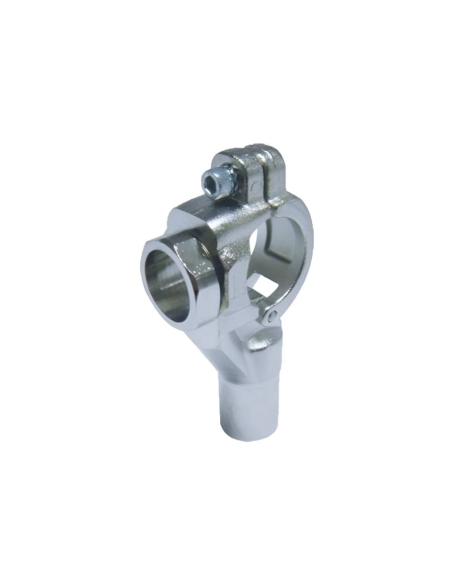

Centering tool for 50mm tube drill - Aignep

€49.66 Tax included

41.04 tax excl.

9024250

Tool or centering element for drilling holes in a 50mm outer diameter tube. This element allows the correct drilling of the tube to be carried out quickly, easily and centered on the desired point of the tube, for the subsequent placement of a flange for downspout or bypass flange of the 90240 and 90246 series from the Aignep brand.

Reference: 90242 50

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Description
Frequently questions

Tool or element for drilling holes in a 50mm outer diameter tube. This type of element allows you to easily drill the tube at the desired point for the subsequent placement of a downspout flange or bypass flange . The guide hole of the tool must be perpendicular to the axis of the tube to be drilled.

Valid for flanges of the 90240 and 90246 series of the Aignep brand.

Characteristics:

Manufacturer: Aignep
Reference: 90242 50
Series: Infinity
Pipe diameter: 50mm
Material: Nickel-plated brass
Application: Compressed air, vacuum, inert gas (nitrogen, argon)
Pressure conditions of use 0.99 - 16bar (according to directive 2014/68/EU)
Temperature conditions of use: -20ºC to +80ºC (according to directive 2014/68/EU)
All products in the Infinity range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 and ASME 31.3 requirements and compliance with the Technical and Safety Standards Authority (TSSA), not They are flammable and limit the spread of flame according to UNI EN 13501-1:2005 Class A2-d1-d0. The Infinity system does not introduce solid particles, water, humidity or oil and therefore does not contaminate the transported fluid (ISO 8573-1 standard)

Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

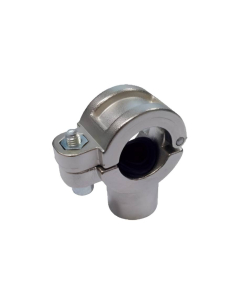

Downpipe flange diameter 63 female downpipe 1/2 Aignep | ADAJUSA | price

Flanges and branches for downpipes for compressed air installations

simple flange for downpipe diameter 63mm female downspout 1/2 - Aignep

€33.28 (€27.50 tax excl.)

Flange for downspouts or bypass flange for 63mm outer diameter pipe and for downpipes with 1/2 cylindrical female thread, body and nut made of nickel-plated brass. simple flange for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Reference: 90247 63 1/2...

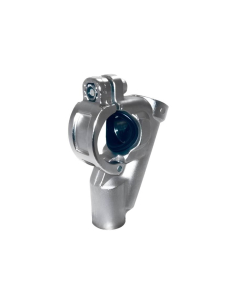

Flange for downpipes diameter 63 female downpipe 1/2 Aignep | ADAJUSA | price

Flanges and branches for downpipes for compressed air installations

Flange for downspout diameter 63mm female downpipe 1/2 - Aignep

€47.13 (€38.95 tax excl.)

Flange for downspouts or bypass flange for 63mm outer diameter pipe and for downpipes with 1/2 cylindrical female thread, body and nut made of nickel-plated brass. Flange with anti-condensation system for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Its...

Centering tool for 25mm tube drill Aignep | ADAJUSA | price

Flanges and branches for downpipes for compressed air installations

Centering tool for 25mm tube drill - Aignep

€34.82 (€28.78 tax excl.)

Tool or centering element for drilling holes in a 25mm outer diameter tube. This element allows the correct drilling of the tube to be carried out quickly, easily and centered on the desired point of the tube, for the subsequent placement of a flange for downspout or bypass flange for the 90247 series of the Aignep brand. Reference: 90249 25...

Centering tool for 40mm tube drill Aignep | ADAJUSA | price

Flanges and branches for downpipes for compressed air installations

Centering tool for 40mm tube drill - Aignep

€35.34 (€29.21 tax excl.)

Tool or centering element for drilling holes in a 40mm outer diameter tube. This element allows the correct drilling of the tube to be carried out quickly, easily and centered on the desired point of the tube, for the subsequent placement of a flange for downspout or bypass flange for the 90247 series of the Aignep brand. Reference: 90249 40...

Flange for downpipes diameter 40 downpipe 20mm Aignep | ADAJUSA | price

Flanges and branches for downpipes for compressed air installations

Flange for downspout diameter 40mm downspout 20mm - Aignep

€57.74 (€47.72 tax excl.)

Flange for downspouts or diversion flange for 40mm outer diameter pipe and 20mm diameter downspout, body and nut made of nickel-plated brass. Flange with anti-condensation system for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Its internal design allows the...

Derivation socket diameter 50mm thread 3/4 Sicomat | ADAJUSA | price

Derivation socket diameter 50mm thread 3/4 Sicomat | ADAJUSA | price 2

Flanges and branches for downpipes for compressed air installations

Derivation flange diameter 50mm female downpipe 3/4 - Sicomat

€18.23 (€15.07 tax excl.)

Flange for downspouts or bypass flange for 50mm outer diameter pipe and for downpipes with 3/4 cylindrical female thread. simple flange for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Reference: QSB5034 Representative image for illustrative purposes, the...

Centering tool for 32mm tube drill Aignep | ADAJUSA | price

Flanges and branches for downpipes for compressed air installations

Centering tool for 32mm tube drill - Aignep

€34.82 (€28.78 tax excl.)

Tool or centering element for drilling holes in a 32mm outer diameter tube. This element allows the correct drilling of the tube to be carried out quickly, easily and centered on the desired point of the tube, for the subsequent placement of a flange for downspout or bypass flange of the 90240 and 90246 series from the Aignep brand. Reference: 90242 32...

Derivation socket diameter 63mm thread 3/4 Sicomat | ADAJUSA | price

Derivation socket diameter 63mm thread 3/4 Sicomat | ADAJUSA | price 2

Flanges and branches for downpipes for compressed air installations

Derivation flange diameter 63mm female downpipe 3/4 - Sicomat

€20.73 (€17.13 tax excl.)

Flange for downspouts or bypass flange for 63mm outer diameter pipe and for downpipes with 3/4 cylindrical female thread. simple flange for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them.Reference: QSB6334 Representative image for illustrative purposes, the item...

Centering tool for 63mm tube drill Aignep | ADAJUSA | price

Flanges and branches for downpipes for compressed air installations

Centering tool for 63mm tube drill - Aignep

€52.99 (€43.79 tax excl.)

Tool or centering element for drilling holes in a 63mm outer diameter tube. This element allows the correct drilling of the tube to be carried out quickly, easily and centered on the desired point of the tube, for the subsequent placement of a flange for downspout or bypass flange for the 90247 series of the Aignep brand. Reference: 90249 63...

Flange for downpipes diameter 50 downspout 20mm Aignep | ADAJUSA | price

Flanges and branches for downpipes for compressed air installations

Flange for downspout diameter 50mm downspout 20mm - Aignep

€70.62 (€58.36 tax excl.)

Flange for downspouts or diversion flange for 50mm outer diameter pipe and 20mm diameter downspout, body and nut made of nickel-plated brass. Flange with anti-condensation system for creating downpipes in already finished compressed air, vacuum and inert gas networks and installations without having to dismantle them. Its internal design allows the use of...

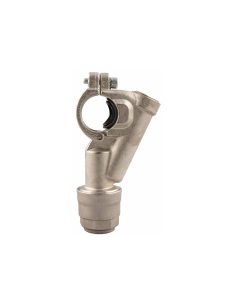

Flange for downpipes diameter 63 downpipe 20mm Aignep | ADAJUSA | price
