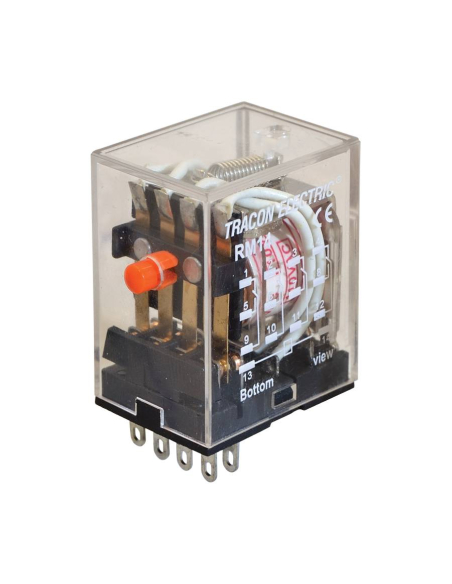

Relay 230Vac 4 contacts 3A
Relay 230Vac 4 contacts 3A

Relay 230Vac 4 contacts 3A

€5.30 Tax included

€4.38 tax excl.

230Vac relay, 4 3A changeover contacts and test button. For general purpose and industrial applications, capable of handling medium loads.

 Relay with flat pin to be mounted on a printed circuit or in a socket on a DIN rail.


 Reference: RM14-220AC
RM14-connection

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


230Vac relay with 4 3A switched contacts and flat Faston pins so that they can be soldered directly onto a printed circuit board (PCB) or inserted into a socket. The relay includes a test button with a spring return push button to check the correct operation of the contacts.

Designed for general uses and for other specific applications such as control panels, command and distribution panels, automation, toys, electronic cards, electromedicine, etc.


Relay compatible with the following socket references: PYF14A and RSPMF-14



Characteristics:

  • Manufacturer: TRACON
  • Reference: RM14-220AC
  • Number of contacts: 4 switched
  • Pin Shape: Flat (Faston Type)
  • Number of pins: 14
  • Working voltage: 230Vac
  • Contact capacity: 3A 230Vac / 28Vdc
  • Test voltage: 1.5kV
  • Rated insulation voltage: 250V
  • Resistance: 50mΩ
  • Mounting: on PCB or socket
  • Mechanical life: 1x10 7 cycles
  • Electrical life: 1x10 5 cycles
  • Ambient temperature: -40 o C to +55 o C
  • Body dimensions: 44.5x27.5x20.5 mm
  • Protection class: IP20
  • Weight: 35g
  • Standards: EN 61810-1, EN 62321

Dimensions (mm):

RM14_drawing





Professional use material, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
