Relay 230Vac 2 contacts 5A SERIES RXG - SCHNEIDER

€6.18 Tax included

€5.11 tax excl.

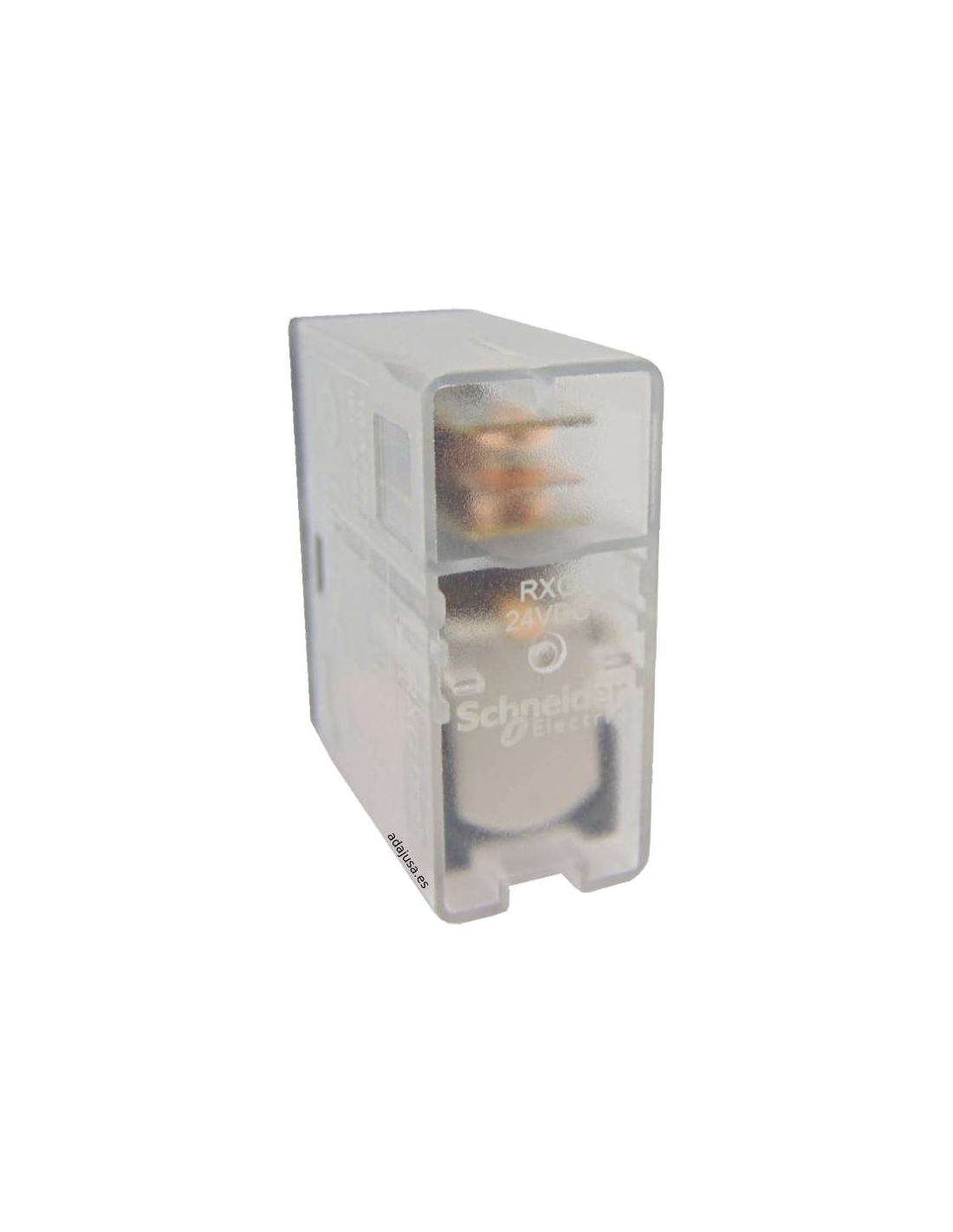

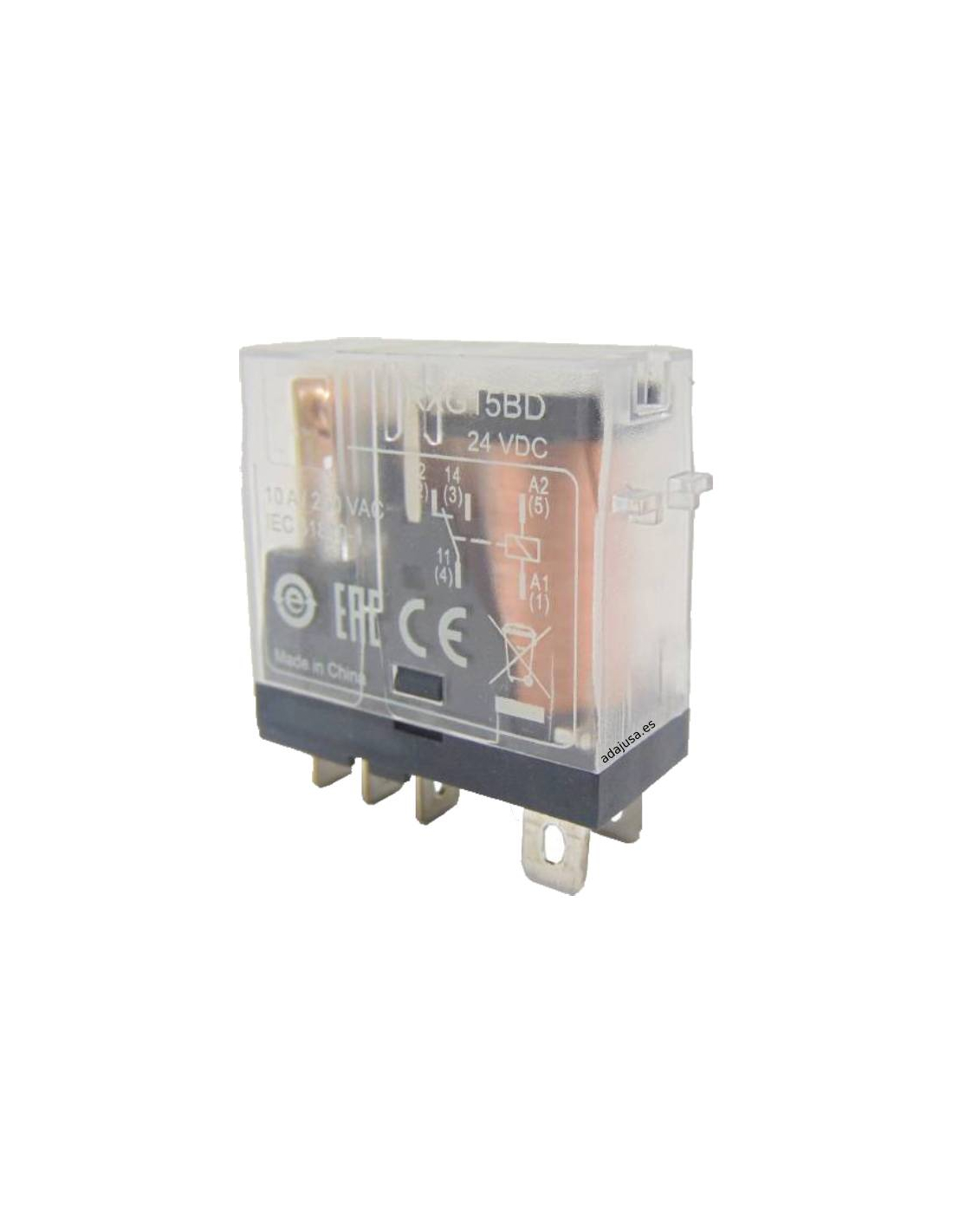

Pluggable connection relay with 2 contacts, 230Vac, 5A with transparent housing . RXG-HARMONY series for use in PLC applications, easy installation and operation. Compact size.

Faston-type flat pin for connection on a mounting base SCHNEIDER RGZE1S48M, RGZE08P, RGZE08E.


Reference: RXG25P7








Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Interface relay with 2 contacts 230Vac, 5A and 8 flat Faston-type pins to be inserted on a SCHNEIDER RGZE series socket.


With transparent housing and designed for use in PLC applications.


Characteristic:

  • Manufacturer: SCHNEIDER
  • Reference: RXG25P7
  • RXG SERIES - HARMONY
  • RGZE1S48M, RGZE08P, RGZE08E series mounting sockets


Technical characteristics:

  • Contact configuration: 2 changeover
  • Control circuit voltage: 230Vac 50/60Hz
  • Rated thermal current: 5A at -40…55°C

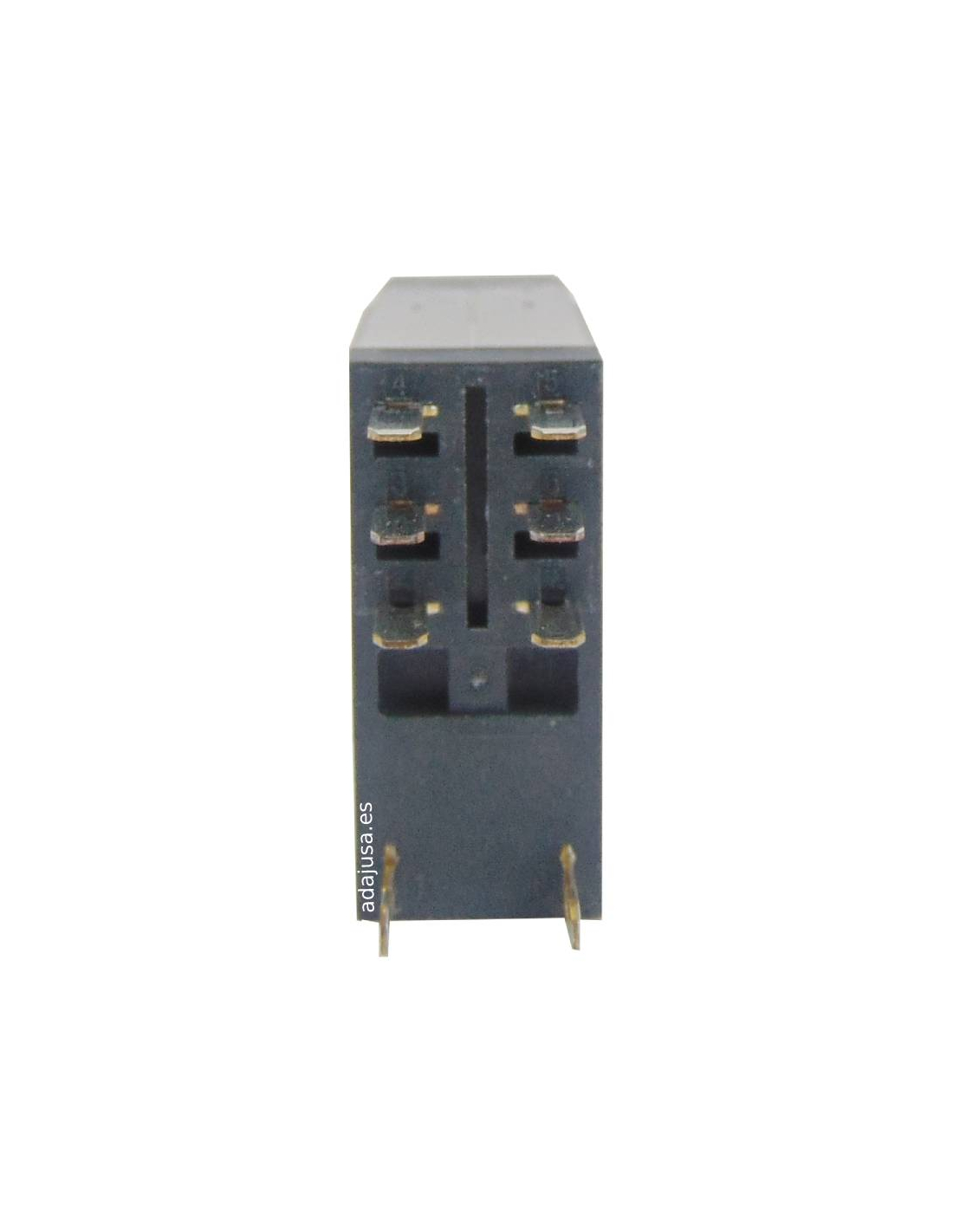

  • Pin Shape: Flat (Faston Type)
  • Number of pins: 8
  • Maximum switching voltage: 250Vac / 30V direct current
  • Maximum switching capacity: 1250VA
  • Minimum switching capacity: 50mW at 10mA, 5V direct current
  • Rated isolation voltage: 250V
  • Resistance to voltage spikes: 6kV 1.2/50µs
  • Mechanical durability: 10,000,000 cycles
  • Electrical durability: 100,000 cycles
  • Standard contact material: AgNi
  • Ambient temperature: -40 to +70 o C
  • Degree of protection: IP40
  • Mounting position: Any position



Dimensions (mm/in):




Wiring diagram:







For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
