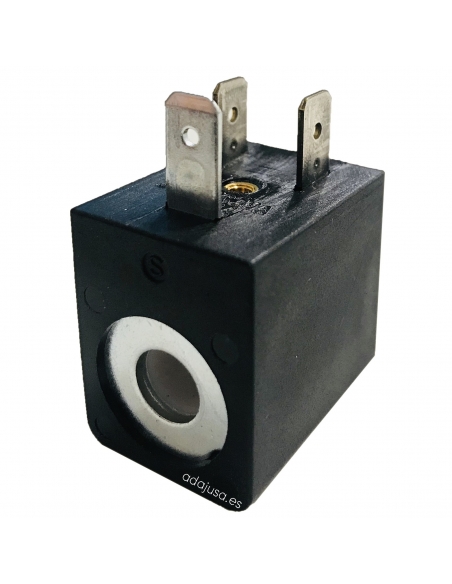

Solenoid valve coil 110VAC 11VA T30 diameter 10

€7.96 Tax included

€6.58 tax excl.

Coil for solenoid valve size 30mm, voltage 110VAC., with a consumption of 11VA, for cores of 10mm.

Manufactured by Aignep and valid for solenoid valves with 10mm actuator core.


Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!


Coil size 30mm for 110VAC voltage with a power of 11VA, suitable for solenoid valves with an actuator core diameter of 10mm.

Suitable for solenoid valves manufactured by:

  • Aignep

specifications:

  • Manufacturer: Aignep.
  • Reference: SOL11110A9000
  • Rated voltage: 110VAC.
  • Voltage tolerance: ±10%.
  • Nominal power: 11VA.
  • Core diameter: 10mm (10.2mm).
  • Size: 30mm DIN 43650
  • Insulation type: H CEI EN 60529.
  • Degree of protection: IP65 according to EN60529 with connector.
  • Temp. Max. coil at ED100%: 70oC for an ambient temperature of 20oC.

Dimensiones bobina tamaño 30 DIN 43650
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
