Solenoid valve coil 24VAC 7.5VA T22 diameter 10
Solenoid valve coil 24VAC 7.5VA T22 diameter 10

Solenoid valve coil 24VAC 7.5VA T22 diameter 10

€4.57 Tax included

€3.78 tax excl.

Coil for solenoid valve size 22mm, voltage 24VAC, with a consumption of 7.5VA, for cores of 10mm.

Manufactured by Aignep and valid for solenoid valves with 10mm actuator core.

Ref. SOL10024A8000

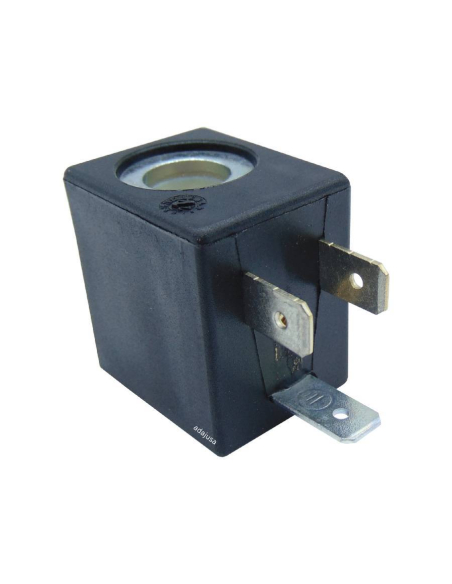

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!


Coil size 22mm for 24VAC voltage with a power of 7.5VA, suitable for solenoid valves with an actuator core diameter of 10mm.

Suitable for solenoid valves manufactured by:

  • Aignep

Technical details:

  • Manufacturer: Aignep.
  • Reference: SOL10024A8000
  • Rated voltage: 24VAC.
  • Voltage tolerance: ±10%.
  • Nominal power: 7.5VA.
  • Core diameter: 10mm (10.2mm).
  • Insulation type: H CEI EN 60529.
  • Degree of protection: IP65 according to EN60529 with connector.
  • Temp. Max. coil at ED100%: 70oC for an ambient temperature of 20oC.

Dimensiones bobina tamaño 22
