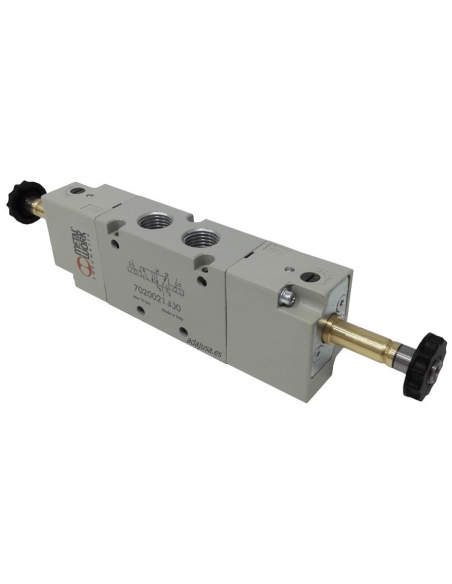

Solenoid valve 1/4 5 ways bistable differential - Metal Work

Name: Solenoid valve 1/4 5 ways bistable differential - Metal Work
Brand: Metal Work
SKU: 7020021300
Price: 87.8944 EUR
Availability: PreOrder

€87.89 Tax included

€72.64 tax excl.

1/4" 5-way bianneumatic solenoid valve, differential, for industrial and general use applications. Supports coils of size 22mm with core of Ø8mm.

Reference: 7020021300

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve of 1/4 5 ways differential bistable. For general and industrial applications.

Characteristics:

Provider: Metal Work
Reference: 7020021300
Operating pressure: 1 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 7.5 mm
Conductance C Nl/min · bar: 264.26
Critical ratio b bar/bar: 0.27
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
Flow rate at 6 bar ΔP 1 bar Nl/min:1100
Monostable TRA/TRR at 6 bar ms: 19/45
Bistable TRA/TRR at 6 bar ms: 21/21
Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
Voltage tolerances %: -10 ÷ +15

electroválvula 1/4-5/2 biestable

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Valve tabs

70 series valve data sheet Metal Work

Download (1.31MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Solenoid valve coil 230Vac 3.5VA T22 diameter 8 - Metal Work

Metal Work

W0215000131

€8.52 (€7.04 tax excl.)

Coil for solenoid valve size 22mm, voltage 220-230VAC., with a consumption of 3.5VA, for cores of 8mm. Manufactured by Metal Work and valid for solenoid valves with 8mm actuator core. Reference: W0215000131Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

Accessories for solenoid valves

Solenoid valve connector size 22 - Metal Work

Metal Work

W0970510011

€1.39 (€1.15 tax excl.)

Electrical connector for solenoid valve size 22mm., in black. Reference: W0970510011Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Accessories for solenoid valves

Solenoid valve coil 24Vac 3.5 VA T22 diameter 8 - Metal Work

Metal Work

W0215000111

€8.52 (€7.04 tax excl.)

Coil for solenoid valve size 22mm, voltage 24Vca., with a consumption of 3.5VA, for cores of Ø8mm. Valid for solenoid valves with 8mm actuator core.Reference: W0215000111 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Accessories for solenoid valves

Solenoid valve coil 24Vdc 2 W T22 diameter 8 - Metal Work

Metal Work

W0215000101

€8.52 (€7.04 tax excl.)

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2 W, for cores of Ø8mm. Manufactured by Metal Work and valid for solenoid valves with 8mm actuator core.Reference: W0215000101 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Electrovalve 1/4 5-way bistable - Metal Work - ADAJUSA

Electrovalve 1/4 5-way bistable - Metal Work - ADAJUSA 2

Solenoid valves 1/4

Solenoid valve 1/4 5 bistable roads without coils - Metal Work

Metal Work

7020021200

€86.64 (€71.60 tax excl.)

1/4" 5-way bile valve, closed (NC), for industrial and general applications. Supports coils of size 22mm with core of Ø8mm.Reference: 7020021200 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

16 other products in the same category:

Solenoid valve 1/4 5/2 bistable 110 Vac BASIC - Metal Work - ADAJUSA

Solenoid valve 1/4 5/2 bistable 110 Vac BASIC - Metal Work - ADAJUSA 2

Pack

Solenoid valves 1/4

Solenoid valve 1/4 5/2 bistable 110 Vac BASIC - Metal Work

Metal Work

PK-EBB1452110

€98.19 (€81.15 tax excl.)

Solenoid valve 1/4 5 way bistable with 110 Vac connectors and coilsRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Base plate for valves and electrovalvulas S.220 Mindman - ADAJUSA

Base plate for valves and electrovalvulas S.220 Mindman - ADAJUSA 2

Solenoid valves on motherboard

Base plate for valves and electrovalves S.220 - Mindman

Mindman

MVSC2205Mxx

€33.70 (€27.85 tax excl.)

Base plate for valves and solenoid valves series 220. Threads 1/4Bases for 2, 3, 4, 5, 6, 7, 8, 9 or 10 valves.Reference: 281MVSC2205MxxRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1/4 5-way monostable assisted solenoid valve - Metal Work - ADAJUSA

1/4 5-way monostable assisted solenoid valve - Metal Work - ADAJUSA 2

Solenoid valves 1/4

Solenoid valve 1/4 5 ways monostable assisted without coil - Metal Work

Metal Work

7020021500

€69.44 (€57.39 tax excl.)

1/4" 5-way monostable assisted, closed (NC) pneumatic solenoid valve for industrial and general use applications. Supports coils of size 22mm with core of Ø8mm.Reference: 7020021500 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 1/4 3-way monostable normally open - Metal Work - ADAJUSA

Solenoid valves 1/4

Solenoid valve 1/4 3 ways monostable NO - Metal Work

Metal Work

7020020400

€61.79 (€51.07 tax excl.)

1/4" 3-way monostable, closed (NO) pneumatic solenoid valve for industrial and general use applications. Supports coils (not included) of size 22mm with core of Ø8mm. Reference: 7020020400 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

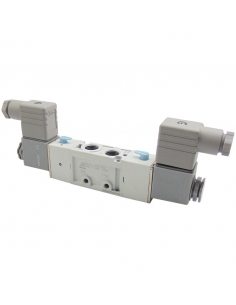

Solenoid valve 1/4 5 way 3 exhaust positions 230Vac Mindman - ADAJUSA
