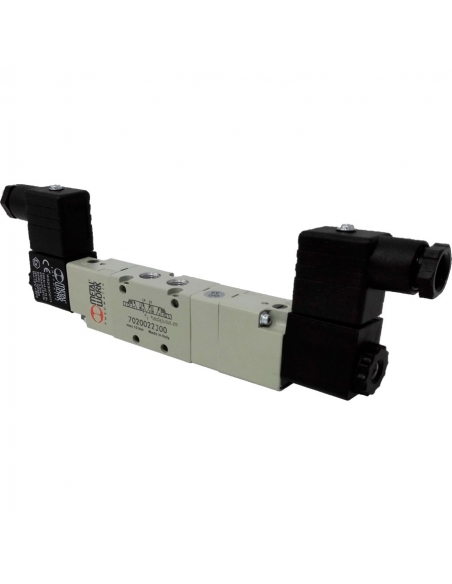

Solenoid valve 1/4 5 way 3 positions 24Vdc 2W pressure centers - Metal Work

€127.90 Tax included

€105.70 tax excl.

1/4" 5-way, 3-position solenoid valves,pressure centers, metal body, for pneumatic applications for industrial or general use. Manufactured in Europe by METAL WORK.

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2.5W, for cores of Ø8mm. Connector 22 mm.


Logo-Metal-Work



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

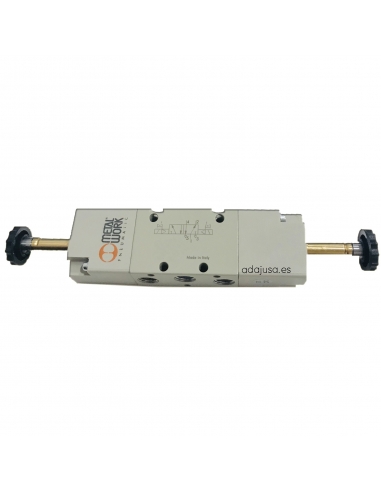

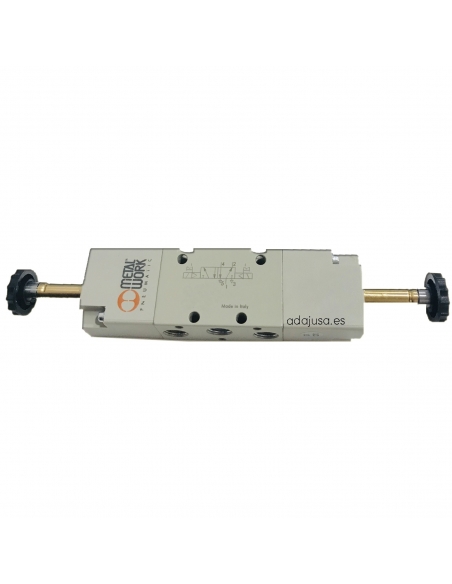

Solenoid valves of 1/4" of 5 ways and 3 positions, centers in pressure, metal body, for pneumatic applications of industrial or general use, the most common application is of control of cylinders of double effect. Manufactured in Europe by METAL WORK.

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2W, for cores of Ø8mm.

22 mm plastic connector

The supply includes:

  • 1 Solenoid valve 1/4 5/3 pressure centers
  • 2 Coils 24Vdc 2W
  • 2 Connectors 22mm

Specifications:

  • Solenoid valve manufacturer: Metal Work.
  • Solenoid valve reference: 7020022300- SOV 36 SOS PC
  • Voltage: 24Vdc
  • Consumption: 2W
  • Solenoid valve working pressure: 2.5 to 10 bar.
  • Minimum working pressure: 2.5 bar.
  • Working temperature: -10ºC to 60ºC.
  • Nominal diameter: 5mm.
  • Flow at 6 bars Δp 1 bar: 550 Nl/min.
  • Manual drive: Yes.

Material for professional use, install in compliance with the regulations in force at the place of installation.


To expand the information you can download the technical sheet by clicking on the "Attachments" tab
