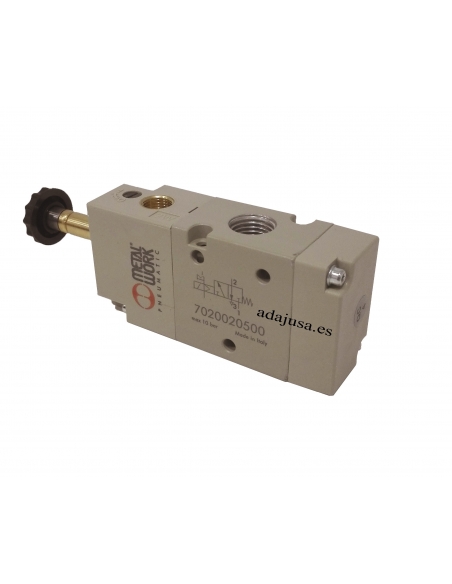

Solenoid valve 1/4 3 ways monostable assisted - Metal Work - adajusa.es
24Vdc 2.5 W T22 x 8 solenoid coil - Metal Work
Solenoid valve connector size 22
solenoid valve 1/4 3 ways monostable assisted 24Vcc 2.5W - Metal Work - ADAJUSA
Solenoid valve 1/4 3 ways monostable assisted - Metal Work - adajusa.es
24Vdc 2.5 W T22 x 8 solenoid coil - Metal Work
Solenoid valve connector size 22
solenoid valve 1/4 3 ways monostable assisted 24Vcc 2.5W - Metal Work - ADAJUSA

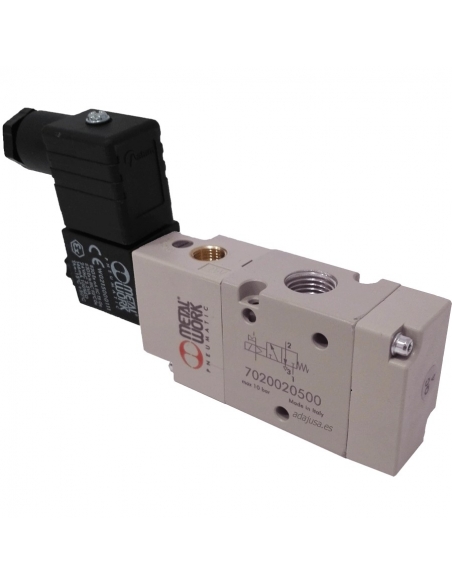

Solenoid valve 1/4 3-way monostable assisted 24Vcc 2.5W - Metal Work

€73.05 Tax included

€60.37 tax excl.

1/4" 3-way monostable assisted, closed (NC) pneumatic solenoid valve for industrial and general use applications.

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2.5W, for cores of 8mm. 22mm connector

Esquema electrovalvula 3 vias asistida

Logo-Metal-Work

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


1/4 3-way monostable assisted, normally closed (NC) pneumatic solenoid valve for industrial pneumatic applications or general use. Supports 22mm Metal Work coils with 8mm core.

Made of aluminum, compact size and high airflow, short response time.

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2.5W, for cores of 8mm.

Electric connector for 22mm size solenoid valve coils, black

This eléctrovalvula, when assisted, needs pressure in the pilot socket, which is independent of the valve sockets, this allows to control fluids with very low pressures and even be used for vacuum applications.

Supply includes:
  • Solenoid valve 1/4 3 ways monostable assisted
  • Coil 24Vcc 2.5W
  • 22mm connector

specifications:

  • Manufacturer of the solenoid valve: Metal Work.
  • Manufacturer's Reference: 7020020500 - SOV 33 SES NC
  • Type: 1/4-5/2 Assisted monostable
  • Thread: G 1/4"
  • Voltage: 24Vdc
  • Consumption: 2.5W
  • Operating pressure: 0 bar÷10 bar
  • Minimum working pressure for the pilot: 2.5 bar
  • Working temperature: -10oC ÷ +60oC
  • Nominal diameter: 5mm.
  • Capacity at 6 bar P 0.5 bar: 400 Nl/min
  • Capacity at 6 bar P 1 bar: 550 Nl/min
  • TRA/TRR at 6 bar: 15 ms / 35 ms
  • Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
  • Weight: 0.152kg.
  • Manual drive: Yes.

Dimensiones electrovalvula 1/4 3/2 monoestable

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
