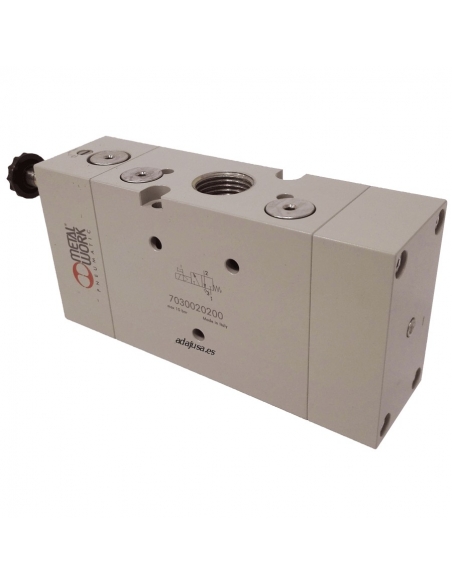

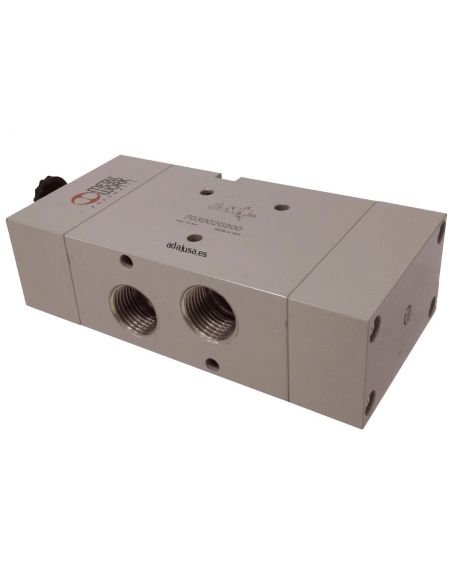

electrovalve 1/2 3-way monostable without coil - Metal Work - ADAJUSA

Solenoid valve 1/2 3 monostable roads without coil - Metal Work

Name: Solenoid valve 1/2 3 monostable roads without coil - Metal Work
Brand: Metal Work
SKU: 7030020200
Price: 146.1317 EUR
Availability: PreOrder

€146.13 Tax included

€120.77 tax excl.

Pneumatic solenoid valve 1/2 3-way monostable without coil, for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm.

Reference: 7030020200

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

1/2 3-way monostable single-stable pneumatic solenoid valve without coil. For general and industrial applications. The solenoid valve is normally closed (NC), i.e. without voltage in the coil, the inlet is not communicated with the outlet, i.e. there is no air pressure at the outlet, the outlet is communicated with the valve exhaust. When the coil is put into tension, the solenoid valve is activated, air circulation occurs between the inlet and outlet of the solenoid valve.

specifications:

Manufacturer of the solenoid valve: Metal Work.
Manufacturer's Reference: SOV43SOSNC Code: 7030020200
Working pressure of the solenoid valve: 2.5 to 10 bar.
Minimum working pressure: 2.5 bar.
Working temperature: -10oC to 60oC.
Nominal diameter: 15mm.
Flow rate at 6 bars p 1 bar: 4600 Nl/min.
Manual drive: Yes.

Dimensiones electroválvula 1_2 monoestable metal work 1

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Solenoid valve 1/2 3 ways monostable assisted without coil - Metal Work

Metal Work

7030020500

€154.38 (€127.59 tax excl.)

Solenoid valve 1/2 3 ways monostable assisted, closed (NC), for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm.Reference: 7030020500Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 1/2 3 bistable ways without coil - Metal Work - adajusa.es

Solenoid valves 1/2

Electrovalve 1/2 3-way bistable without coil - Metal Work

Metal Work

7030020100

€180.97 (€149.56 tax excl.)

Pneumatic solenoid valve 1/2 3 ways bistable assisted closed (NC), for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm.Reference: 7030020100Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 1/2 3 bistable roads assisted without coil - Metal Work - adajusa.es

Solenoid valves 1/2

Electrovalve 1/2 3-way bistable assisted without coil - Metal Work

Metal Work

7030020300

€180.97 (€149.56 tax excl.)

Solenoid valve 1/2 3 ways bistable assisted, closed (NC), for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm. Reference: 7030020300 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 1/2 3 ways monostable 24Vac 5VA - Metal Work - adajusa.es

Solenoid valve 1/2 3 ways monostable 24Vac 5VA - Metal Work - adajusa.es 2

Pack

Solenoid valves 1/2

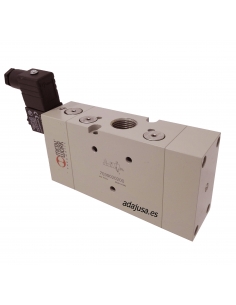

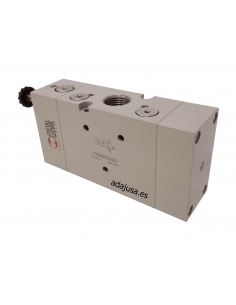

Solenoid valve 1/2 3-way monostable 24Vac 5VA - Metal Work
