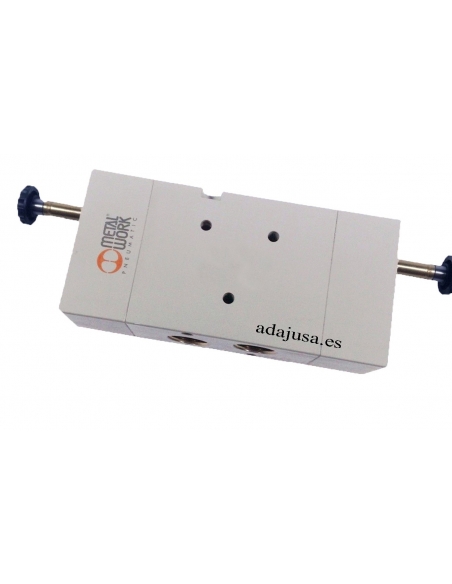

Solenoid valve 1/2 3 bistable roads assisted without coil - Metal Work - adajusa.es
24Vdc 5W T22 x 8 solenoid valve coil - Metal Work
Solenoid valve connector size 22
Solenoid valve 1/2 3 bistable roads assisted 24Vcc 5W - Metal Work - adajusa.es
Solenoid valve 1/2 3 bistable roads assisted without coil - Metal Work - adajusa.es
24Vdc 5W T22 x 8 solenoid valve coil - Metal Work
Solenoid valve connector size 22

Solenoid valve 1/2 3-way bistable assisted 24Vcc 5W - Metal Work

€197.19 Tax included

€162.97 tax excl.

Solenoid valve 1/2 3 ways bistable assisted, closed (NC), for industrial applications and general use.

Solenoid valve coil 24Vdc 5W T22 diameter 8 - Connector 22 mm



Logo-Metal-Work Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

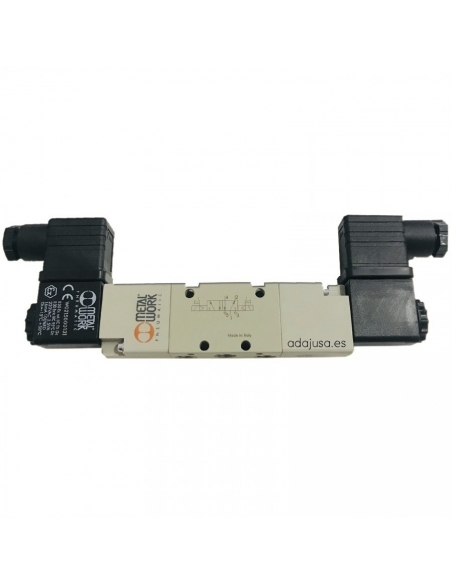

1/2 3-way assisted bi-stable pneumatic solenoid valve. For general and industrial applications. This solenoid valve needs an external pneumatic pressure socket for pilot operation, allowing you to work even in vacuum applications.

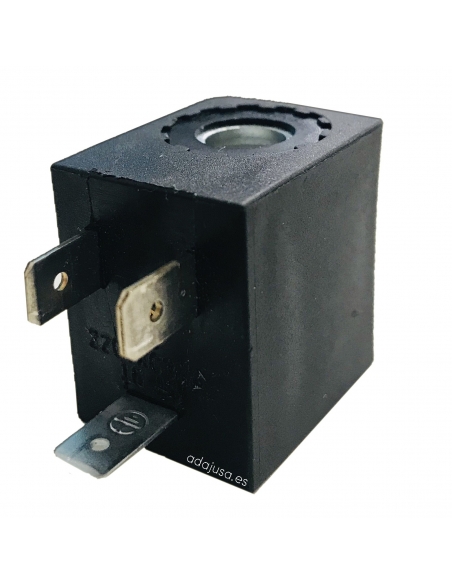

24Vdc 5W T22 diameter 8 solenoid valve coil

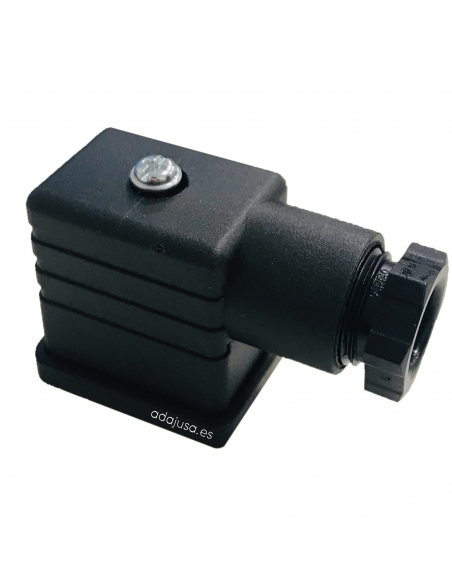

22mm plastic connector

Supply includes:

  • 1 Solenoid valve 1/2" 3/2 assisted bistable
  • 2 Coils 24Vcc 5W
  • 2 Connectors 22 mm

specifications:

  • Manufacturer of the solenoid valve: Metal Work.
  • Manufacturer's Reference: SOV43SEBOO Code: 7030020300
  • Voltage: 24Vdc
  • Consumption: 5W
  • Working pressure of the solenoid valve: vacuum at 10 bar.
  • Minimum working pressure: 2.5 bar.
  • Working temperature: -10oC to 60oC.
  • Nominal diameter: 15mm.
  • Flow rate at 6 bars p 1 bar: 4600 Nl/min.
  • Manual drive: Yes.

Dimensiones electroválvulas 1/2-3/2 biestable metal work

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
