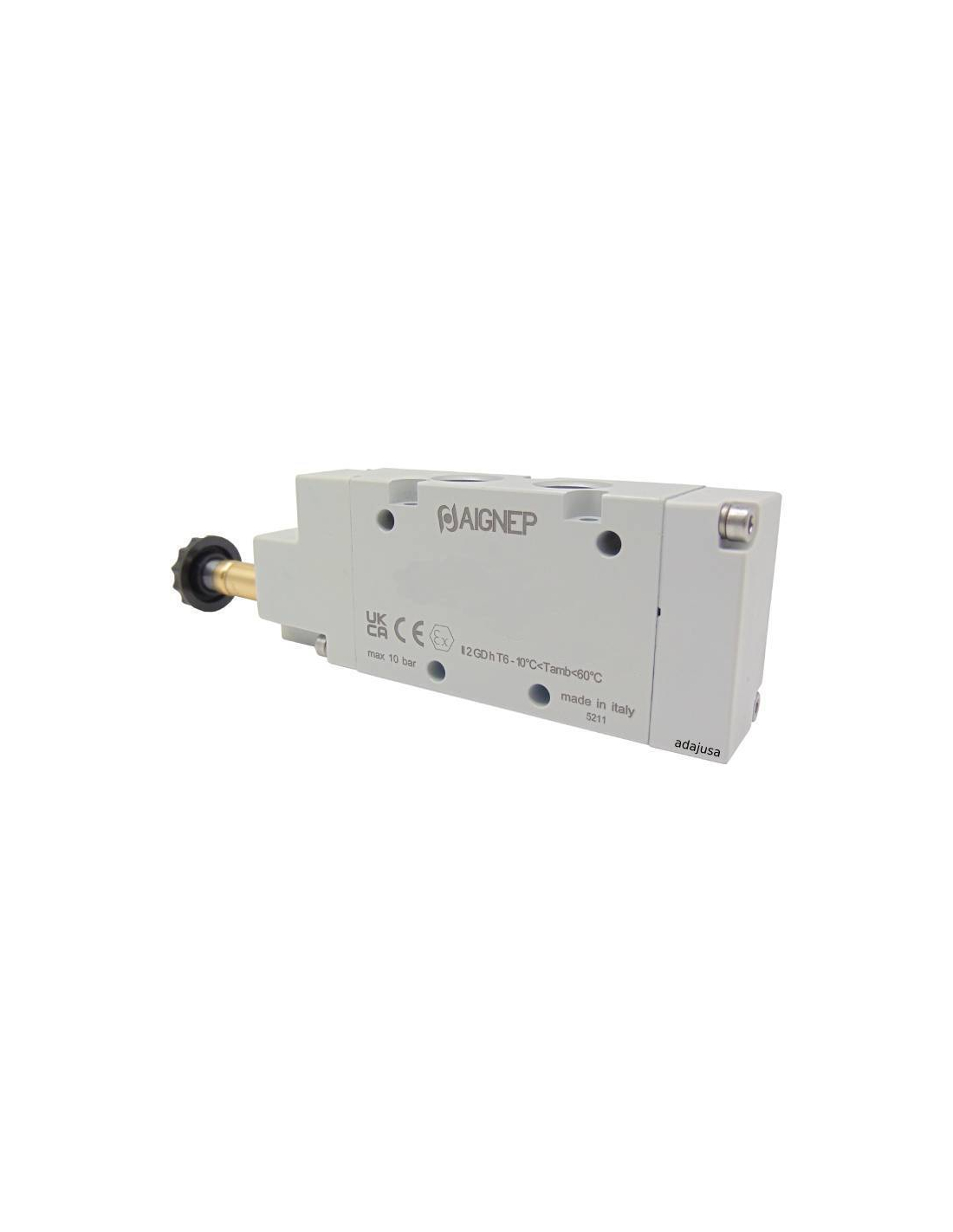

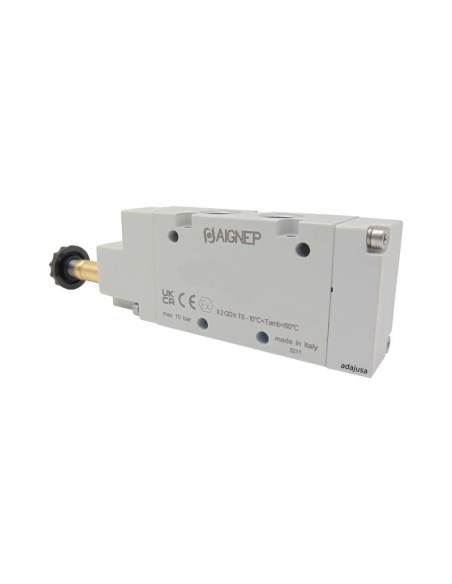

Solenoid valve 1/2 5/2 single solenoid - Aignep
Solenoid valve 1/2 5/2 single solenoid - Aignep

Solenoid valve 1/2 5/2 single solenoid - Aignep

€110.12 Tax included

€91.01 tax excl.

Solenoid valve 1/2 5 ways (coil not included), with G1/2" threads, anodized aluminum body, NBR seals.

Reference: 01VS050005
Esquema neumatico electrovalvula 5 vias monoestable
Logotipo Aignep
Logotipos normativas Aignep Adajusa (1)
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

No queries yet, leave the first!


Pneumatic solenoid valve 1/2 5 ways monostable 01V series. Body made of anodized and painted aluminum, nickel-plated aluminum slide and NBR seals. European manufacture. Coil and connector not included in the supply.

Technical characteristics:

  • Manufacturer: Aignep
  • Part number: 01VS050005
  • Type of threads: G 1/2"
  • Monostable bar: 2 to 10
  • Operating temperature °C: -10 ÷ +60
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 5000 Nl/mi
  • Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10
  • Class of isolation: F 155
  • Fluid: Filtered air without lubrication
  • Number of ways: 5
  • Operation: Monostable
  • Seal material: NBR
Dimensiones electrovalvulas 1_8 5 vias monoestables Aignep Adajusa
Imagen construtiva electrovalvulas 3 vias Aignep Adajusa Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
