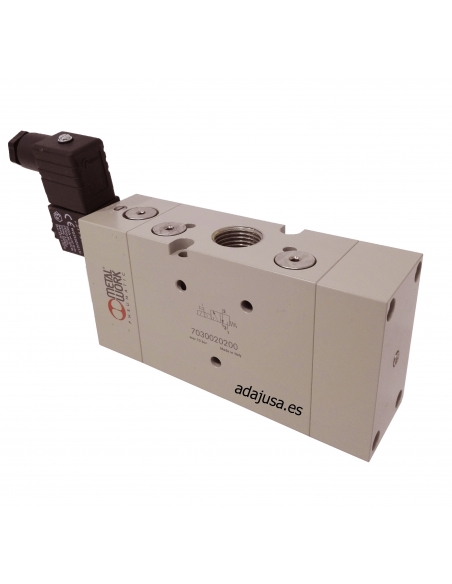

Solenoid valve 1/2 3 ways monostable NO 230Vac 5VA - Metal Work

€153.25 Tax included

€126.65 tax excl.

Pneumatic solenoid valve 1/2 3-way monostable normally open (NO) without coil, for industrial and general use applications.

Coil for solenoid valve size 22mm, voltage 230Vac., with a consumption of 5VA, for cores of Ø8mm. Connector 22 mm



Logo-Metal-Work


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

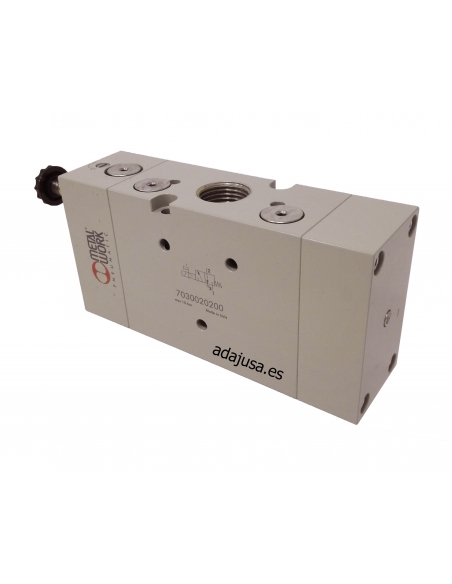

Pneumatic solenoid valve of 1/2 3 ways monostable without coil. For general and industrial applications. The solenoid valve is normally open (NO), that is, without tension in the coil, the inlet is communicated with the outlet, that is, there is air pressure at the outlet, the outlet is communicated with the exhaust of the valve. When the coil is put into tension, the solenoid valve is deactivated, and the air circulation between the inlet and outlet of the solenoid valve is blocked.

Coil for solenoid valve size 22mm, voltage 230Vac., with a consumption of 5VA, for cores of Ø8mm.

22 mm plastic connector

The supply includes:

  • Solenoid valve 1/2 3/2 monostable (NO)
  • Coil 230Vac 5VA
  • 22mm connector

Specifications:

  • Manufacturer: Metal Work.
  • Solenoid valve reference: SOV43SOSNO Code: 7030020400
  • Solenoid valve working pressure: 2.5 to 10 bar.
  • Minimum working pressure: 2.5 bar.
  • Voltage: 230Vac
  • Consumption:5VA
  • Working temperature: -10ºC to 60ºC.
  • Nominal diameter: 15mm.
  • Flow at 6 bars Δp 1 bar: 4600 Nl/min.
  • Manual drive: Yes.

Dimensiones electroválvula 1_2 monoestable metal work 1

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
