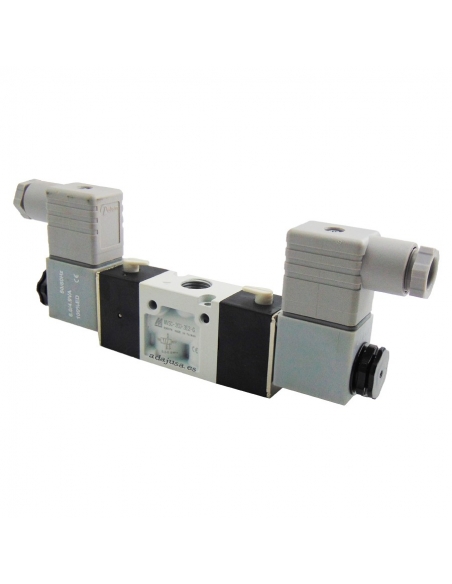

Solenoid valve 1/2 3 ways bistable 24Vdc Mindman S.460 - ADAJUSA
Solenoid valve 1/2 3 ways bistable 24Vdc Mindman S.460 - ADAJUSA

Solenoid valve 1/2 3-way bistable 24Vdc - Mindman S.460

Delivery in 3 days
€68.81 Tax included

€56.87 tax excl.

Pneumatic solenoid valve of 1/2" 3 ways bistable,operating voltage of 230Vca.

Reference: 281MVSC4603E22

Esquema neumatico electrovalvula biestable 3 vías

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic solenoid valve of 1/2 3 ways bistable, with coil of 24Vdc. For general and industrial applications. The electric valve will change position depending on the coil receiving voltage.

The supply of the solenoid valve includes:

  • Solenoid valve 1/2-3/2 bistable.
  • 2 Coil 24Vdc
  • 2 x 22mm connector

Specifications:

  • Solenoid valve manufacturer: Mindman.
  • Reference: MVSC-460-3E2-15A 24Vcc
  • Thread Type: G 1/2"
  • Coil voltage: 24Vdc.
  • Coil power: 4 VA.
  • Fluid type: Pressurized air, with or without lubrication.
  • Solenoid valve working pressure: 2 to 8 bar.
  • Test pressure: 1 MPa
  • Working temperature: -5ºC to 50ºC.
  • Effective selection: 60 mm².
  • Weight: 473 g

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
