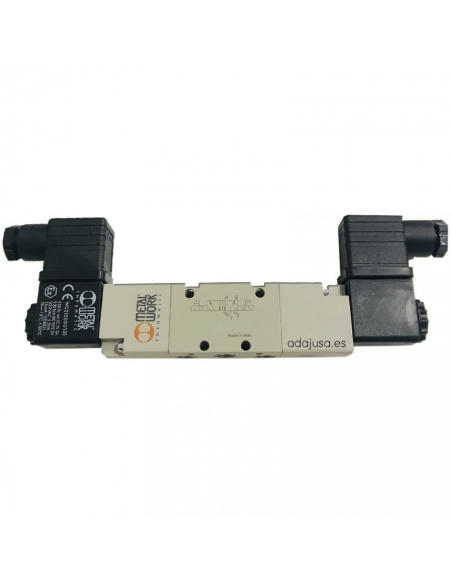

Electrovalvula 1/2 5 via bistable 24Vdc 5W - Metal Work - ADAJUSA

solenoid valve 1/2 5 ways bistable 24Vac - Metal Work - ADAJUSA

Solenoid valve coil 24Vdc 5W T22 Ø8 - Metal Work

Solenoid valve 1/2 5 ways bistable 24Vac 5VA - Metal Work

Name: Solenoid valve 1/2 5 ways bistable 24Vac 5VA - Metal Work
Brand: Metal Work
SKU: PK-E125BI24A
Price: 219.8207 EUR
Availability: InStock

€219.82 Tax included

€181.67 tax excl.

Solenoid valve 1/2 5 ways bistable without coil, for industrial applications and general use. With 24Vac connectors and coils

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.37

Solenoid valve coil 24Vac 5VA T22 diameter 8 - Metal Work

€8.36

Solenoid valve 1/2 5 ways bistable - Metal Work

€200.36

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve of 1/2 5 ways bistable. For general and industrial applications.

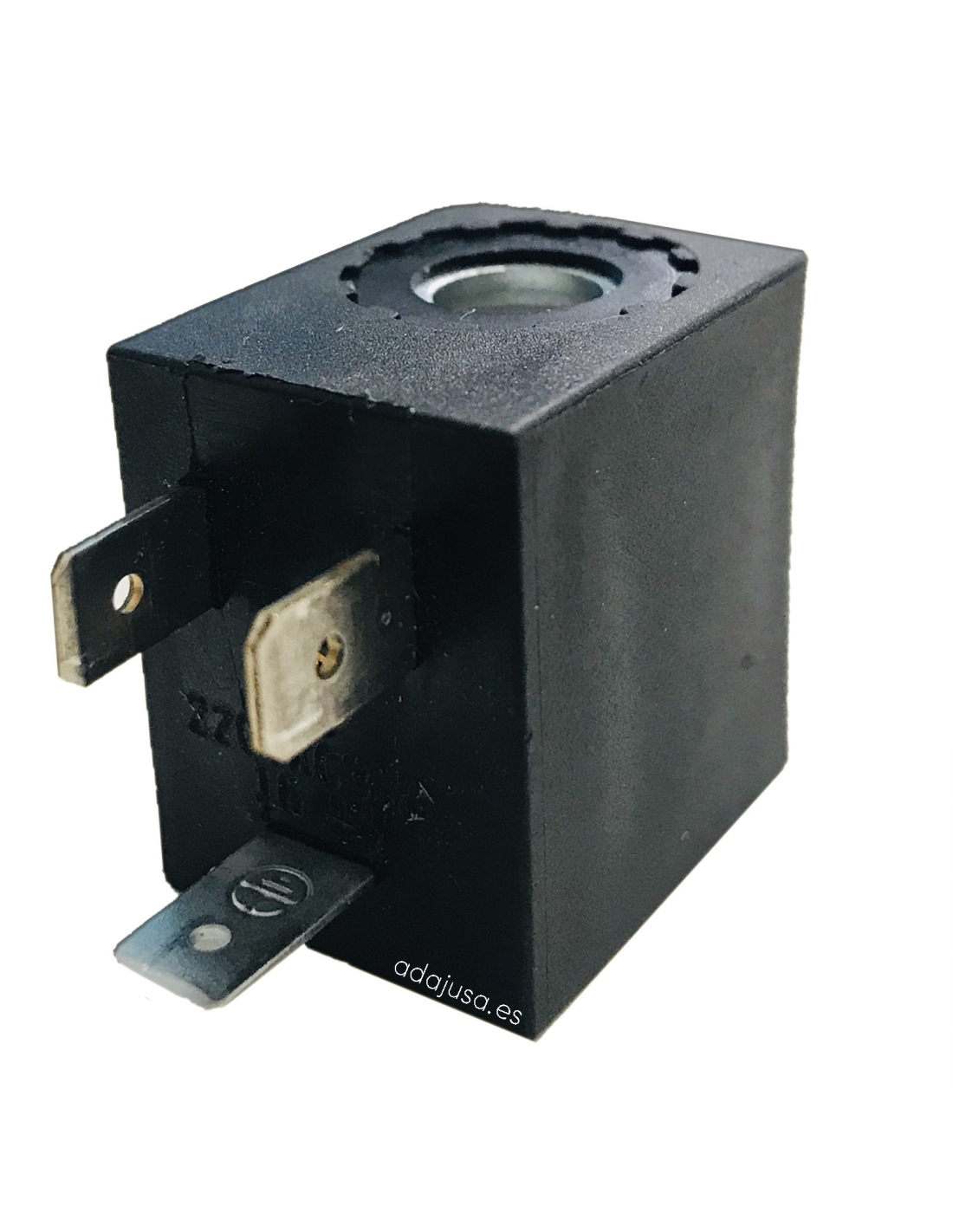

Solenoid valve coil 24Vac 5VA T22 diameter 8

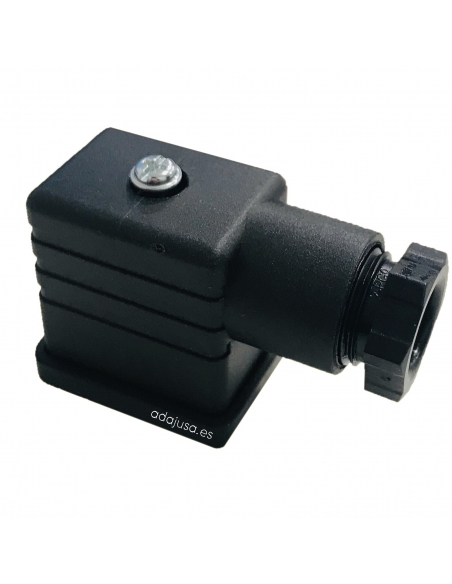

22 mm plastic connector

The supply includes:

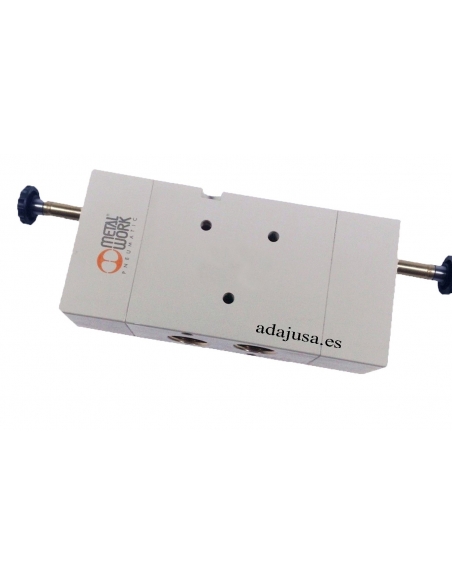

1 Solenoid valve 1/2" 5/2 bistable
2 Coils 24Vac 5VA
2 Connectors 22 mm

Specifications:

Solenoid valve manufacturer: Metal Work.
Manufacturer reference: 7030021200 SOV 45 SOB OO
Voltage: 24Vac
Consumption: 5VA
Solenoid valve working pressure: vacuum at 10 bar.
Minimum working pressure: 2.5 bar.
Working temperature: -10ºC to 60ºC.
Nominal diameter: 15mm.
Flow at 6 bars Δp 1 bar: 4600 Nl/min.
Manual drive: Yes.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
