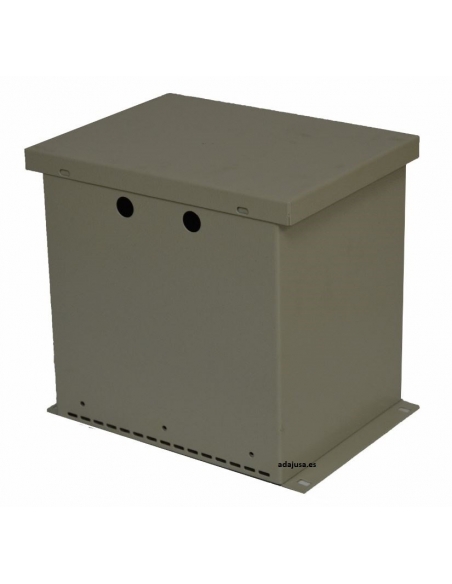

3KVA ultra-insulated single-phase transformer with IP23 box
3KVA ultra-insulated single-phase transformer with IP23 box

Single-phase transformer 3000 VA 230/230V ultra insulation box IP23

Special manufacturing material
€379.11 Tax included

€313.31 tax excl.

TRA3000
Ultra-insulated 3kVA (3000VA) single-phase transformer with metal box that allows galvanic isolation, noise filter and neutral generation (two-phase installations). It has an electrostatic safety screen that filters and conducts unwanted signals and disturbances to ground, allowing it to be very effective in isolating machines and installations sensitive to electrical noise.

Reference: TRA3000
transformer symbol 230-230 with screen

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

3 questions about the product
Privacy
Shipments
Returns


Single-phase ultra-insulation transformer for galvanic separation of circuits or machinery, dry type, with electrostatic screen between primary and secondary. With a metal layer that offers a degree of protection IP23.

This ultra-isolation transformer provides separation between primary and secondary circuits through a safety electrostatic screen that filters and conducts unwanted signals and disturbances to ground. Referenced to ground it can generate neutral in two-phase installations. The degree of effectiveness of this screen depends directly on the quality of the installation's grounding. For the generation or referencing of the neutral it is necessary to ensure an efficient ground connection.

They are supplied in a metal box that provides an IP-23 insulation degree, connection through terminals. It does not incorporate any overload protection circuit.

Manufactured with low loss magnetic sheet providing high performance.



Technical characteristics:


  • Reference: TRA3000
  • Windings: Thermal class N 200ºC.
  • Primary voltage: 230Vac.
  • Secondary voltage: 230Vac.
  • Power: 3KVA.
  • Frequency: 50/60Hz.
  • Electrostatic screen between primary and secondary
  • Test voltage: 3KV between windings and ground
  • Insulators: Thermal class F 155ºC and H 180ºC.
  • Protection: IP-23 (Metallic Box )
  • Ambient temperature: TA=25ºC
  • Cooling: ANAN (Natural Air)
  • Certificate: UNE-EN 61558


TRA transformer dimensions

The transformer is supplied without any type of overload protection; its installation is mandatory to avoid overloading the transformer. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.
Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Question
Bom dia,

Qual é o fator de potência deste transformador (230/230Vac, 3000VA)?

Obrigado.
Answer

Bom dia,

Obrigado pelo seu contacto.

Informamos que os transformadores monofásicos de isolamento 230/230 V, como o modelo de 3000 VA com caixa IP23, não possuem um fator de potência próprio, dado que não consomem potência reativa por si mesmos. O fator de potência será determinado pela carga ligada à saída do transformador.

Ou seja, o transformador transmite a energia com base nas características da carga instalada — se a carga tiver um fator de potência de 1 (resistiva), o transformador também operará com esse valor; se a carga for indutiva ou capacitiva, o fator de potência refletirá essas condições.

Com os melhores cumprimentos,
ADAJUSA

Rodolfo Prudêncio on 05/23/2025 10:28:31
Question
Bonjour
je serai intéressé par un transformateur Réf No. : TRA3000
pouvez vous s'il vous plaît me donner les délais de livraison car je vois que c'est indiqué fabrication spéciale
merci pour les renseignements
cordialement
Eric Rollet
Answer
Bonjour,

Nous vous informons que le délai de fabrication sont 5 jours ouvrés + l envoi.

Cordialement
ERIC on 10/12/2023 18:36:12
Question
Nesecitaria un transformador de 3kv para transformar corriente bifasica 110v 110v a monofasica 220v dado que la tensión del domicilio es de las antiguas es para un aire acondicionado doméstico agradecería presupuesto y tiempo de envío, Consultas mi teléfono es 60088087 espero una respuesta, muchas gracias por su atención.
Answer
Buenos días.

Entendemos que la vivienda recibe tensión bifásica y que necesitan un equipo para obtener neutro.

El tranasformador que ha seleccionado resulta pequeño puesto que es capaz de soportar una carga de 2,1 KW, el fabricante indica que es necesario dimensionar un 20 % sobre la carga máxima a la que tenga que ser sometido, por lo tanto, 3KW x 20 % = 0,6 KW, hay que buscar un transformador que soporte una carga de 3,6 KW.


Este transformador soporta una carga de 4,2 KW.

De los dos bornas de salida una de ellas tiene que ir conectada a una pica de tierra independiente a la del resto de la instalación, este borne será considerado como neutro.

A la salida del transformador, es necesario instalar un elemento de corte que esté en relación con la intensidad que es capaz de soportar.

No obstante, verifique que cumpla con sus especificaciones.

Saludos

Adajusa
Fabian on 06/16/2023 12:21:11

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Transformer 1600VA E:230/400V S:115/230V Transformer 1600VA E:230/400V S:115/230V 2
Special manufacturing material
Single-phase transformers

Transformer 1600VA E:230/400V S:115/230V

Especial-SEV
MI16003
€284.83 (€235.40 tax excl.)
Transformer single-phase of maneuver for command, control and general uses. The power of the transformer is 1600VA and it is encapsulated in resin. The degree of protection of the transformer is IP-20. This range of transformers has two output voltages 115Vac / 230Vac, each of them selectable by means of jumpers. Reference: MI-1600-3 Representative...
100VA ultra-isolation IP-20 monophasic transformer 100VA ultra-isolation IP-20 monophasic transformer 2
Special manufacturing material
Single-phase transformers

Transformer 100VA 400/230Vac ultra-insulated IP-20

Generico-SEV
TRIA100400230
€59.94 (€49.54 tax excl.)
100VA single-phase ultra-isolation transformer, primary 400Vac secondary 230Vac,designed to supply circuits where galvanic tracking separation and disturbance filtering are required. Manufactured in resin encapsulator, degree of protection IP-20. Part number: TRIA100-400-230 Representative image for illustrative purposes, the item supplied will...
12.5KVA ultra-insulated single-phase transformer with IP23 box
Special manufacturing material
Single-phase transformers

Single-phase transformer 16 kVA 230/230V ultra insulation box IP23

Generico-SEV
TRA16000
€1,280.74 (€1,058.46 tax excl.)
Ultra-insulated 16kVA (16000VA) single-phase transformer with metal box that allows galvanic isolation, noise filter and neutral generation (two-phase installations). It has an electrostatic safety screen that filters and conducts unwanted signals and disturbances to ground, allowing it to be very effective in isolating machines and installations...
500VA ultra-isolation IP-20 transformer
Special manufacturing material
Single-phase transformers

Transformer 500VA 400/230Vac ultra-isolation IP-20

Generico-SEV
TRIA500400230
€115.78 (€95.69 tax excl.)
Single-phase ultra-isolation transformer 500VA primary 400Vac secondary 230Vac, designed to supply circuits where galvanic safety separation and disturbance filtering are required. Manufactured in resin encapsulator, protection degree IP-20. Reference: TRIA500-400-230 Representative image for illustrative purposes, the item supplied will correspond...

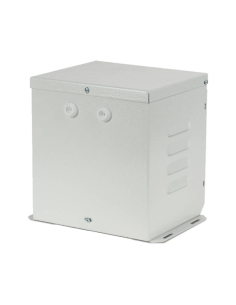

Single-phase transformer neutral generator 7KVA 230/230V+N TRAN7000 | ADAJUSA | price
Specially manufactured material
Single-phase transformers

Single-phase neutral generator transformer 7 KVA 230/230+N with enclosure IP23

Generico-SEV
TRAN7000
€584.02 (€482.66 tax excl.)
Single-phase neutral generator transformer of 7kVA (7000VA), oriented to those installations where it is necessary to generate an artificial neutral, including two-phase networks. It has an electrostatic screen between primary and secondary, which must be connected to a good quality ground. Mounted in a metallic box with IP-23 protection degree....
4KVA ultra-insulated single-phase transformer with IP23 box
Special manufacturing material
Single-phase transformers

Single-phase transformer 4000 VA 230/230V ultra insulation box IP23

Generico-SEV
TRA4000
€466.20 (€385.29 tax excl.)
Ultra-insulated 4kVA (4000VA) single-phase transformer with metal box that allows galvanic isolation, noise filter and neutral generation (two-phase installations). It has an electrostatic safety screen that filters and conducts unwanted signals and disturbances to ground, allowing it to be very effective in isolating machines and installations sensitive...
2.5KVA ultra-insulated single-phase transformer with IP23 box
Special manufacturing material
Single-phase transformers

Single-phase transformer 2500 VA 230/230V ultra insulation box IP23

Generico-SEV
TRA2500
€350.42 (€289.60 tax excl.)
Ultra-insulated single-phase 2.5kVA (2500VA) transformer with metal box that allows galvanic isolation, noise filter and neutral generation (two-phase installations). It has an electrostatic safety screen that filters and conducts unwanted signals and disturbances to ground, allowing it to be very effective in isolating machines and installations...

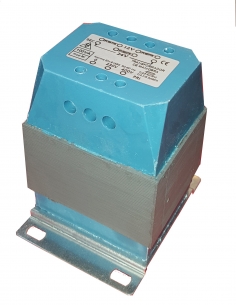

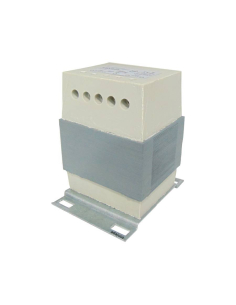

Transformer maneuver 2500VA 115/230V Transformer maneuver 2500VA 115/230V 2
