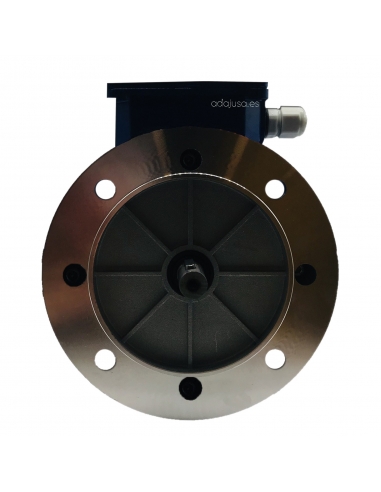

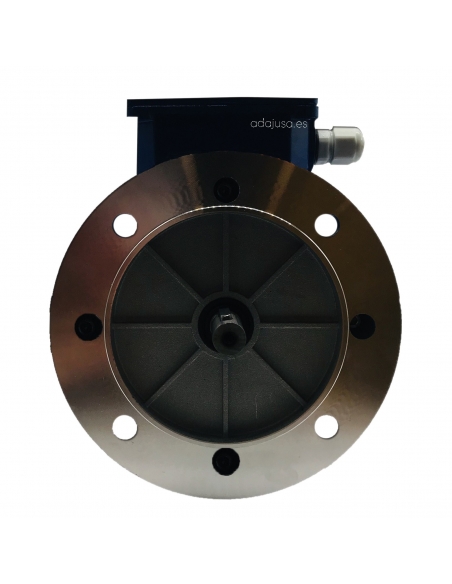

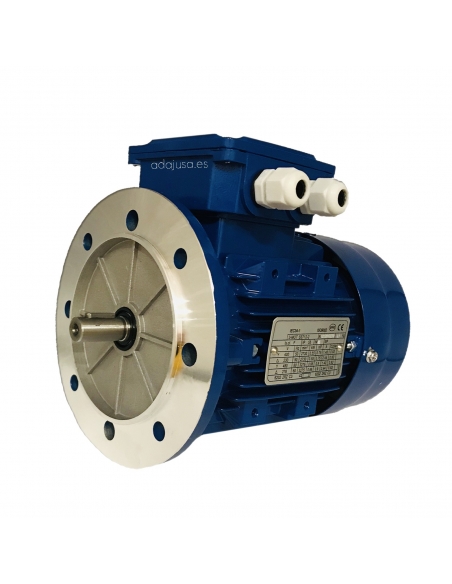

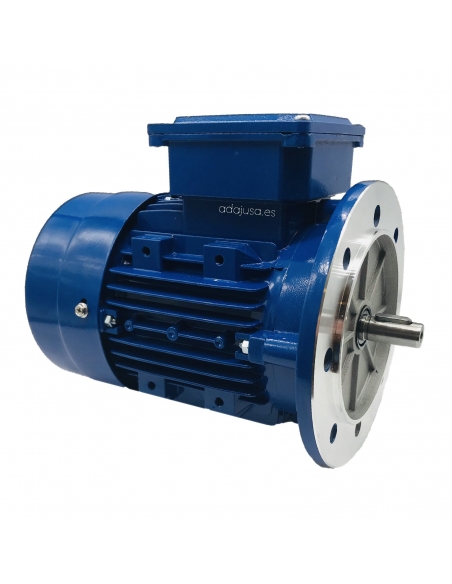

Single-phase motor 1.5Kw 2HP 230V 3000 rpm medium starting torque, Flange B5
Single-phase motor 1.5Kw 2HP 230V 3000 rpm medium starting torque, Flange B5
Single-phase motor 1.5Kw 2HP 230V 3000 rpm medium starting torque, Flange B5

Single-phase motor 1.5Kw 2HP 230V 3000 rpm medium starting torque, Flange B5

€201.84 Tax included

€166.81 tax excl.

Single-phase electric motor 1.5kW (2HP) 230Vac 50Hz 2 poles (3000 rpm) Flange B5 (PAM 200/24), half starting torque, aluminum housing. Manufactured under European IEC regulations.

  • Reference: SY-90S-2 B5
  • Voltage: 230Vac 50Hz.
  • Power: 1.5Kw - 2HP
  • Type: Half boot torque.
  • Number of poles: 2.
  • Revs: 3000 rpm.
  • Flange: B5
  • Shaft diameter: 24mm.
  • Flange diameter: 200mm
  • PAM Flange: 200/24
  • Size: 90S
  • Energy efficiency: IE1.

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Single-phase electric motor 1.5kw (2HP) 230Vac 50Hz , 2 poles (3000 rpm), B5 type flange and half starting torque.

Standard single-phase electric motors for general uses, manufactured under European IEC standards in aluminium with detachable foot. Coiled in enamelled copper with class F insulation. The execution of the housing is closed, it has retainer on the output shaft that gives it a degree of protection IP55. The condenser is fully housed in the motor terminal box.

By properly positioning the connecting plates in the terminal box, the motor can rotate both right and left.

Features:

  • Manufacturer/Importer: Motorseg
  • Reference: SY-90S-2 B5
  • Engine type: asynchronous squirrel cage.
  • Voltage: 230 Vac. 50Hz.
  • Power: 1.5 Kw (2HP).
  • Medium start torque.
  • Number of poles: 2 (3000 rpm).
  • Nominal intensity (In): 8.76A
  • Starting intensity (Ia): 40
  • Revs: 2820 rpm.
  • Yield: 76%
  • Power factor (Cos): 0.98
  • Maximum Torque / Nominal Torque (Tmax/Tn): 1.7
  • Starting torque / Nominal torque (Ts/Tn): 0.35
  • Permanent capacitor: 45uF/450V
  • Service: continuous S1
  • Degree of protection: IP55.
  • Clamping type: Flange B5
  • Shaft Diameter: .24mm
  • Flange Diameter:200
  • PAM Flange: 200/24
  • Enclosure size: 90 (90S)
  • Color: Blue.
  • Housing material: Aluminum.
  • Sound level (dB): 80.
  • Weight: 14 Kg.
  • CE marking.
For more information, other powers or executions consult.
As with any asynchronous electric motor, the installation of a motor guard is mandatory to avoid overload damage.

Dimensiones motores monofasicos B5

To expand the information, you can download the technical sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with current regulations in the place of installation.
