Single-phase motor starter 3 hp 230V with contactor

€35.76 Tax included

29.55 tax excl.

Instead of €35.76

PK-992ADC2202201

Direct starter box for 2.2Kw (3CV) 220/230 V single-phase motors, with thermal relay for motor protection, start stop buttons included.

Reference: ADC2202201



Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

This pack contains

1 question about the product
Privacy
Shipments
Returns


Direct starter box for 2.2Kw (3CV) 220-230Vac single-phase motors, with contactor and thermal relay for motor protection.


Characteristic:

  • Manufacturer/Supplier: OMU/Mixvil
  • Reference: ADC2202201

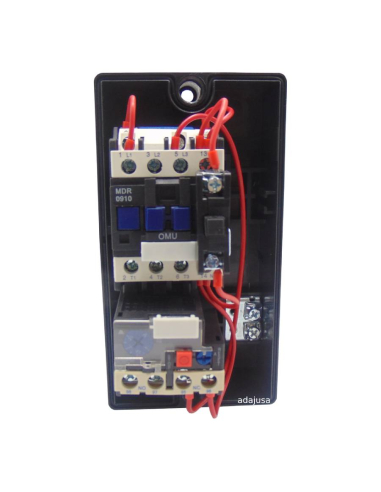

The box includes:

  • Polycarbonate box.
  • 18A AC3 contactor
  • Thermal relay with regulation 9 - 13A
  • "I" start button, green color
  • "O" stop/reset button, red color

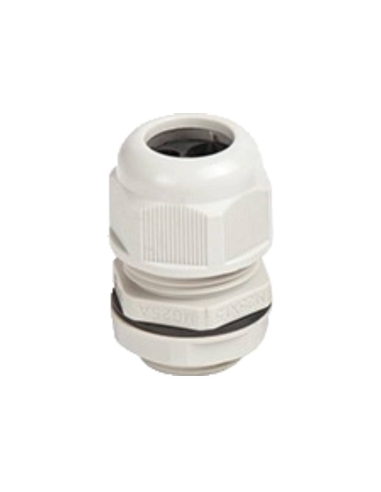

  • 2 M20 cable glands




Connection:



Dimensions:






For more information, you can download the technical sheet by clicking on the "Attached Files" tab.

Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.

Questions

Question
Bonjour, Je ne trouve pas votre schéma de montage pour du monophasé 220V ou j'ai en entrée 220V un Neutre + 1 phase et en sortie moteur 2 câbles U et V et pas de W qui correspond au tri Sachant qu'il est important de bien connecter le relais magnéto Thermique pour la protection du moteur. Très cordialement JMP
Answer
Bonjour.

D'après le lien, vous avez commandé un démarreur de moteur monophasé.

Entrée L1 - L2, il doit y avoir un cavalier entre V - L3, sortie entre U - L2, sortie entre U - L3.

Cordialement
jean marc on 02/22/2023 10:50:39

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

5 other products in the same category:

Customers who bought this product also bought:

Stop switch box contactor + thermal relay 5,5-8A | Adajusa Stop switch box contactor + thermal relay 5,5-8A | Adajusa 2
Contactor boxes

Direct starter with three-phase contactor 9A coil 400Vac and thermal relay 5.5 to 8A

OMU System
TMI3kW/400
€28.62 (€23.65 tax excl.)
Boxed direct starter for electric motor, includes 9A category AC3 three-phase contactor, 400Vac coil and thermal relay with 5.5 - 8A regulation, and start/stop pushbuttons. It allows the starting of three-phase motors at both 230Vac and 400Vac and single-phase motors at 230Vac. Contactor coil: 400VacThermal relay regulation: 5.5 to 8A Reference:...
View

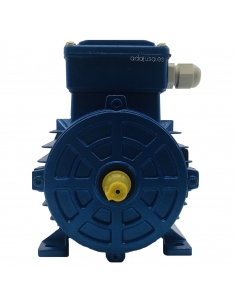

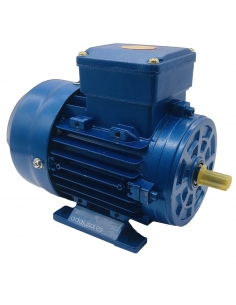

Three-phase motor 0.75Kw/1CV 230/400V 3000 rpm IE2 Flange B3 foot Three-phase motor 0.75Kw/1CV 230/400V 3000 rpm IE2 Flange B3 foot 2
