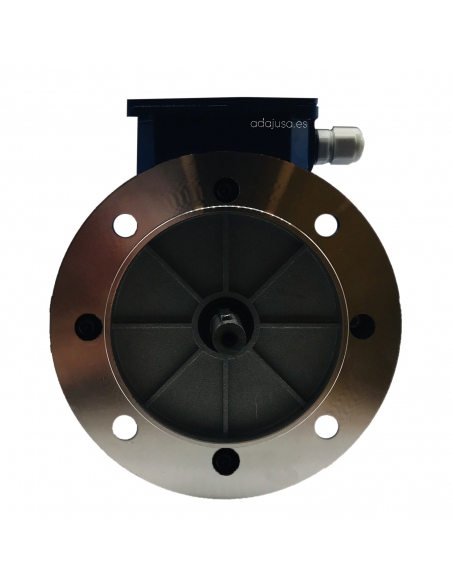

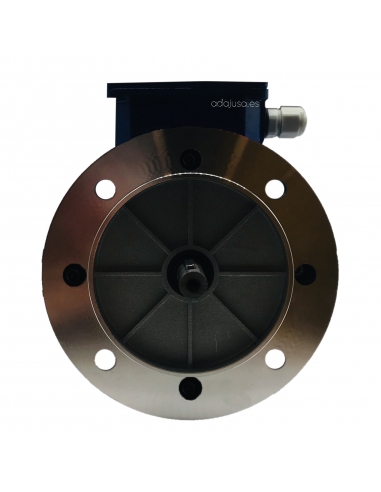

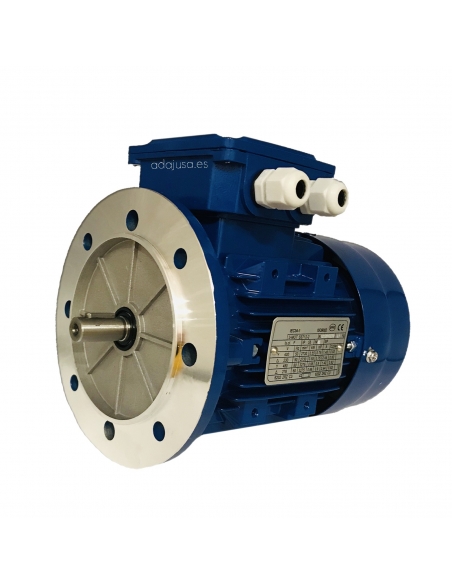

Motor single-phase 1.5Kw 2CV 230V 1000 rpm high starting torque, Flange B5
Motor single-phase 1.5Kw 2CV 230V 1000 rpm high starting torque, Flange B5
Single-phase motor 1.5Kw 2HP 230V 1000 rpm high...
Motor single-phase 1.5Kw 2CV 230V 1000 rpm high starting torque, Flange B5
Motor single-phase 1.5Kw 2CV 230V 1000 rpm high starting torque, Flange B5
Single-phase motor 1.5Kw 2HP 230V 1000 rpm high starting torque, Flange B5

Single-phase motor 1.5Kw 2HP 230V 1000 rpm high starting torque, Flange B5

€367.20 Tax included

€303.47 tax excl.

Single-phase electric motor 1.5kW (2HP) 230Vac 6 poles (1000 rpm ) B5 flange ( PAM 250/28), high starting torque with centrifugal circuit breaker, aluminum housing. Manufactured under European IEC regulations.

  • Voltage: 230Vac 50Hz.
  • Power: 1.5Kw – 2hp.
  • Type: High starting torque.
  • Number of poles: 6.
  • Revolutions: 1000 rpm .
  • Flange: B5.
  • Shaft diameter: 28mm.
  • Diameter of the bride: 250mm.
  • Size: 100L6.
  • Energy efficiency: IE1 .

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Single-phase electric motor 1.5kW (2HP) 230Vac 50Hz, 6 poles (1000 rpm ) B5 flange, high starting torque with centrifugal circuit breaker.

Standard single-phase electric motors for general use, manufactured in aluminium under European IEC regulations. Enamelled copper windings with class F insulation. The casing is closed and has a seal on the output shaft, giving it IP55 protection. The capacitor is fully housed in the motor's terminal box.

By properly positioning the connection plates in the terminal box, the motor can rotate both clockwise and counter-clockwise.

The starting system using centrifugal circuit breaker and auxiliary starting capacitor provides increased starting torque; the system is fully automatic.

Characteristics:

  • Manufacturer/Importer: Alren
  • Reference: ALHL100L66B5
  • Motor type: asynchronous squirrel cage.
  • Efficiency: IE1 .
  • Voltage: 230 Vac. 50Hz.
  • Power: 1.5 Kw (2HP).
  • High starting torque.
  • Number of poles: 6 (1000 rpm ).
  • Continuous service: S1.
  • Protection grade: IP55.
  • Fastening type: B5 flange.
  • Shaft diameter: Ø28mm
  • flange diameter: Ø250mm
  • Case size .
  • Bride PAM : 250/28.
  • Color: Blue.
  • Housing material : Aluminum.
  • CE marked.


For more information, other powers or executions, please consult.
As with all asynchronous electric motors, it is mandatory to install a motor protection device to prevent damage due to overload.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.

Professional use material, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

3 other products in the same category:

Single-phase motor 0.55Kw... Single-phase motor 0.55Kw... 2
Single-phase motors 1000 rpm flange B5 High torque

Single-phase motor 0.55Kw 0.75HP 230V 1000 rpm high starting torque, B5 flange

Generico-GAR
ALHL90S66B5
€256.29 (€211.81 tax excl.)
Single-phase electric motor 0.55kW (0.75HP) 230Vac 6 poles (1000 rpm ) B5 flange ( PAM 200/19), high starting torque with centrifugal circuit breaker, aluminum housing. Manufactured under European IEC regulations. Voltage: 230Vac 50Hz. Power: 0.55Kw – 0.75hp. Type: High starting torque. Number of poles: 6. Revolutions: 1000 rpm . Flange: B5....
Single-phase motor 1.1Kw... Single-phase motor 1.1Kw... 2
Single-phase motors 1000 rpm flange B5 High torque

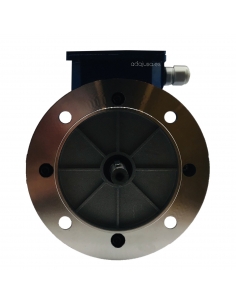

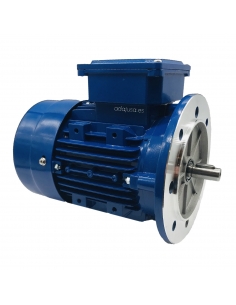

Single-phase motor 1.1Kw 1.5HP 230V 1000 rpm high starting torque, Flange B5
