Single-phase motor 0,55Kw 0,75CV 230V 1000 rpm high starting torque, B5 Flange

€215.77 Tax included

178.32 tax excl.

ALHL806B6B5

Single-phase electric motor 0,55kW (0,75CV) 230Vac 6 poles (1000 rpm) Flange B5 (PAM 200/19), high starting torque with centrifugal circuit breaker, aluminum housing. Manufactured under European IEC standards.

  • Voltage: 230Vac 50Hz.
  • Power: 0,55Kw - 0,75cv.
  • Type: High starting torque.
  • Number of poles: 6.
  • Revolutions: 1000 rpm.
  • Flange: B5.
  • Shaft diameter: 19mm.
  • Flange diameter: 200mm.
  • Size: 806B.
  • Energy efficiency: IE1.

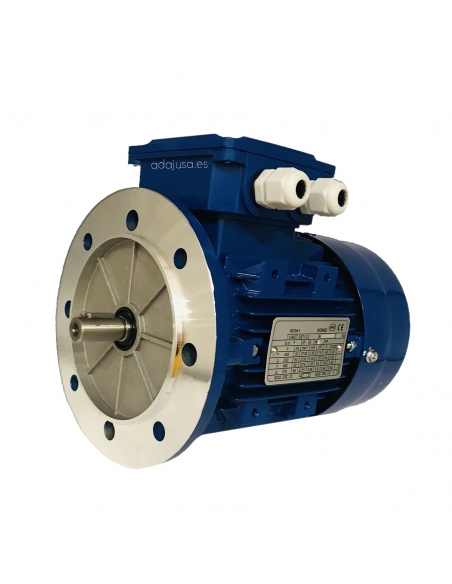

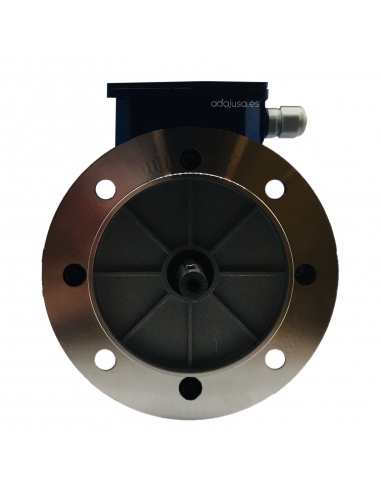

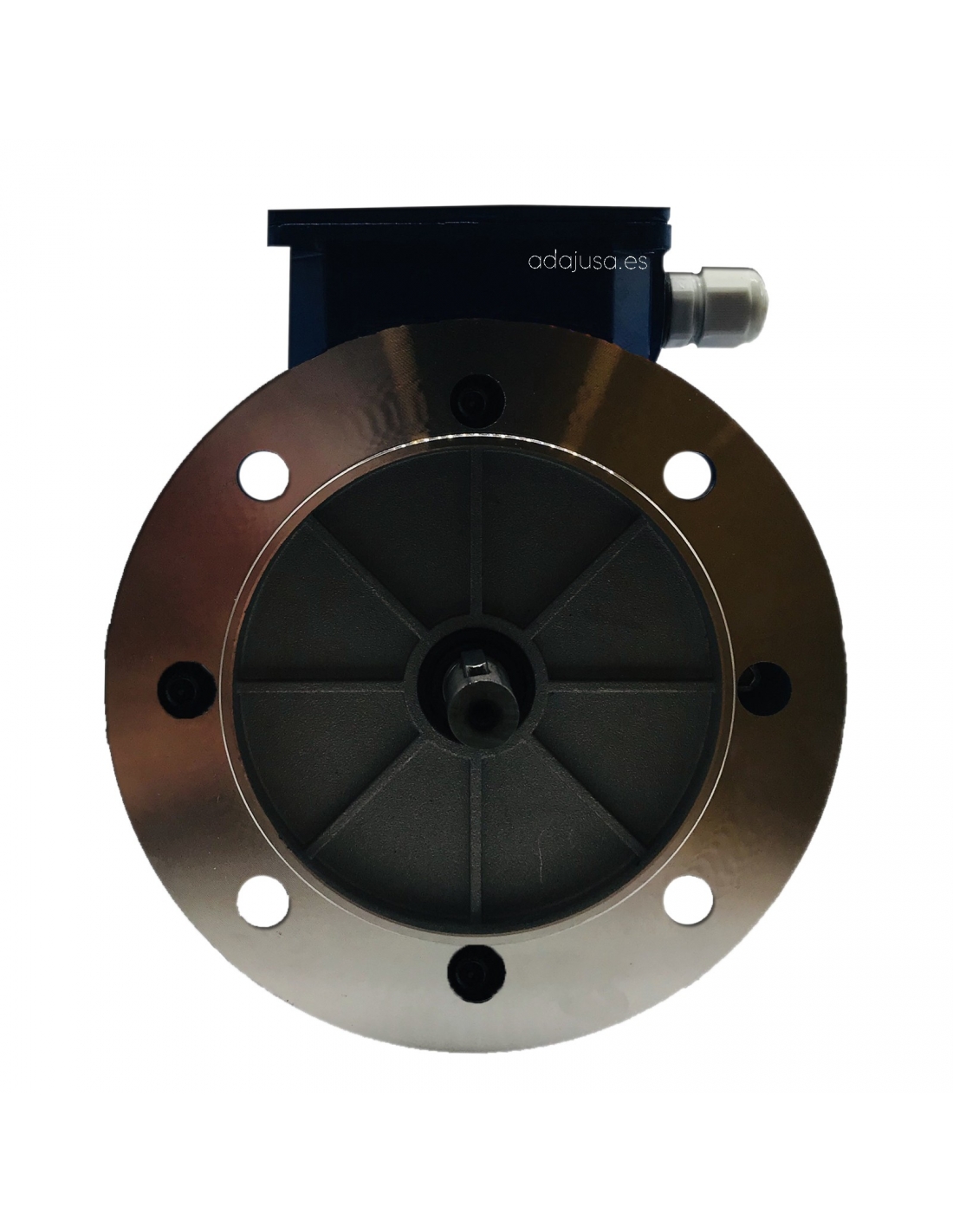

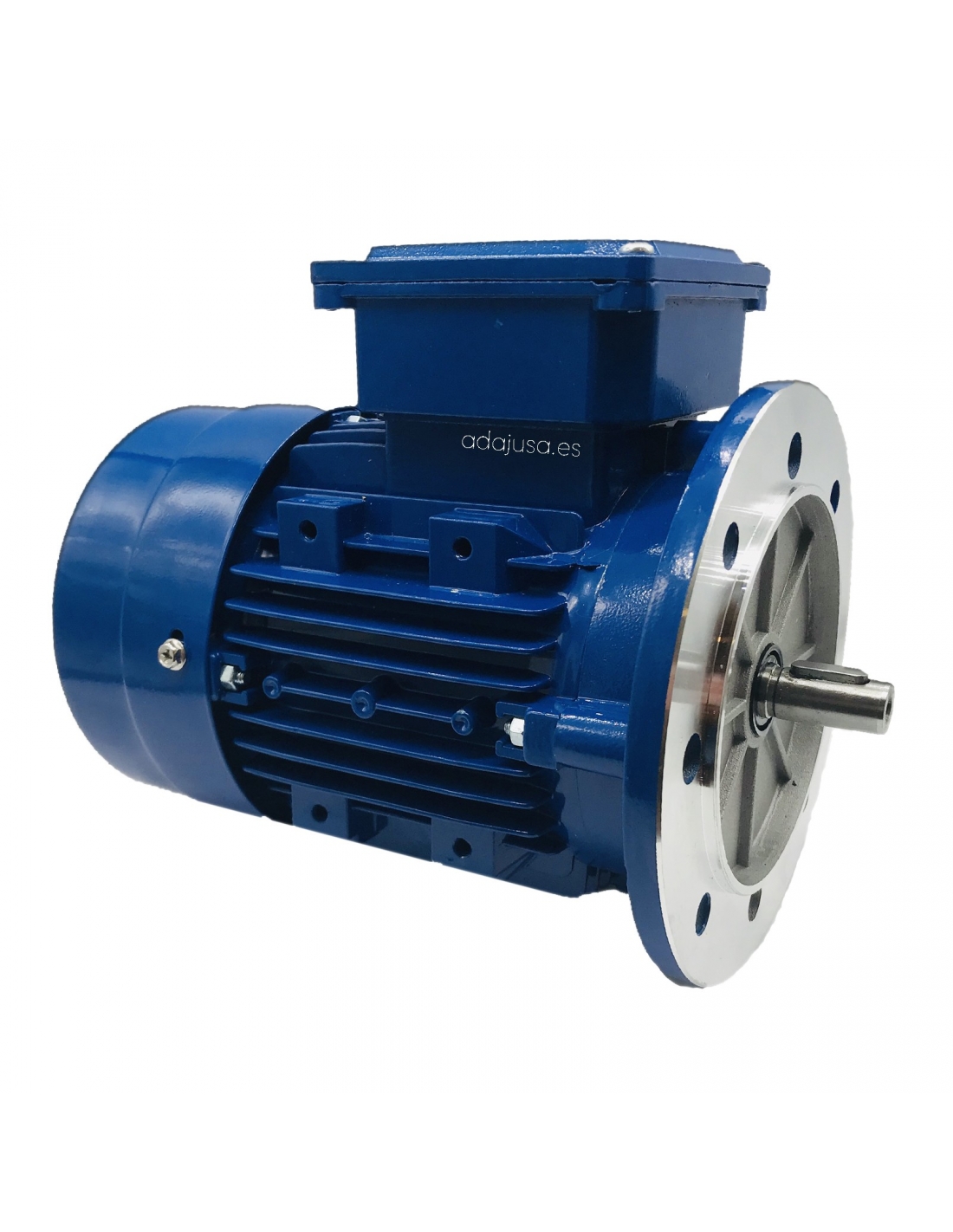

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Single-phase electric motor 0.55kW (0.75CV) 230Vac 50Hz, 6 poles (1000 rpm) B5 flange, high starting torque with centrifugal circuit breaker.

Standardized single-phase electric motors for general purposes, manufactured under European IEC standards in aluminum. Winding in enameled copper with class F insulation. The execution of the casing is closed, it has a seal on the output shaft which gives it a degree of protection IP55. The capacitor is completely housed in the motor terminal box.

The motor can rotate both clockwise and counterclockwise by positioning the connection terminals in the terminal box.

The starting system by means of centrifugal circuit breaker and auxiliary starting capacitor allows for a reinforced starting torque; the system is fully automatic.

Characteristics:

  • Manufacturer/Importer: Garcia
  • Part number: ALHL806B6B5
  • Motor type: squirrel cage asynchronous.
  • Efficiency: IE1.
  • Voltage: 230 Vac. 50Hz.
  • Power: 0,55 Kw (0,75CV).
  • High starting torque.
  • Number of poles: 6 (1000 rpm).
  • Continuous duty: S1.
  • Degree of protection: IP55.
  • Type of fastening: B5 flange.
  • Shaft diameter: Ø19mm
  • Diameter of the flange: Ø200mm
  • Case size 80 (806B).
  • Bride PAM: 200/19.
  • Color: Blue.
  • Housing materialaluminum.
  • CE marked.

For more information, other powers or executions, please consult.
As in all asynchronous electric motors, it is mandatory to install a motor guard to prevent damage due to overload.

For further information you can download the technical data sheet by clicking on the "Attachments" tab

Material for professional use, to be installed in compliance with the regulations in force at the place of installation.
