Simple sprockets Z45 taper lock T3020 1 x 17.02...
Simple sprockets Z45 taper lock T3020 1 x 17.02 16B-1 ISO 606

Simple sprockets Z45 taper lock T3020 1 x 17.02 16B-1 ISO 606

€424.98 Tax included

€351.22 tax excl.

Simple sprockets for 3020 bushing taper lock of roller chain 16B-1 according to European standard DIN ISO 606

Reference: PINHON Z45 1-T3020

Teeth: 45

ISO: 16B-1

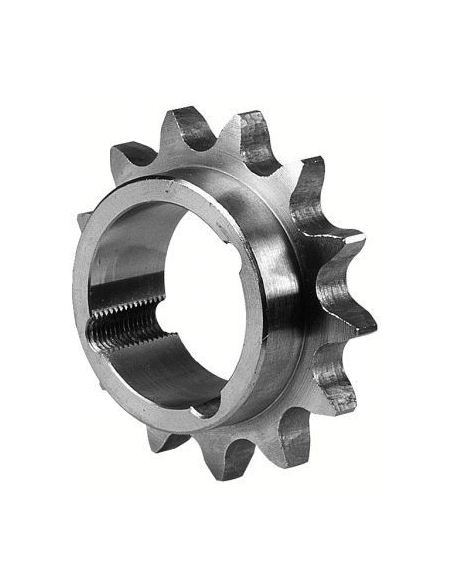

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Simple sprockets for 3020 bushing taper lock of roller chain 16B-1 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z45 1-T30208


Characteristics:

  • 1" x 17.02mm ISO 16B-1
  • 25.4 x 17.02 mm
  • Teeth: 45
  • Taper Lock: 3020
  • Outer Diameter (S): 377.1
  • Primitive diameter (Dp): 364.13
  • Hub diameter (d): 140
  • Width (H): 51


Material for professional use, install in compliance with the regulations in force at the place of installation.
