Simple sprockets Z17 taper lock T2517 1 1/4 x 3/4 20B-1 ISO 606

€110.44 Tax included

€91.27 tax excl.

Simple sprockets for taper lock of bush 2517 of roller chain 20B-1 according to European standard DIN ISO 606

Reference: PINHON Z17 1.1/4-T2517

Teeth: 17

ISO: 20B-1

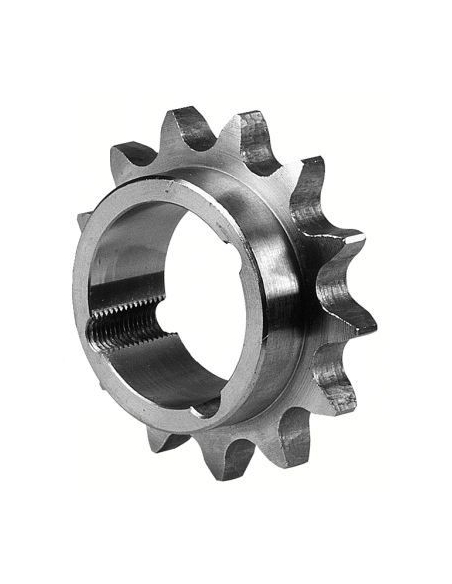

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Simple sprockets for taper lock of bush 2517 of roller chain 20B-1 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z17 1.1/4-T25178


Characteristics:

  • 1" 1/4 x 3/4" mm ISO 20B-1
  • 19.05 x 11.68 mm
  • Chain pitch: 31.75 mm
  • Inner width: 19.56 mm
  • Roller diameter: 19.05 mm
  • Teeth: 17
  • Taper Lock: 2517
  • Outer Diameter (Sd): 187.9
  • Primitive diameter (Dp): 172.78
  • Hub diameter (d): 108
  • Width (H): 45


Material for professional use, install in compliance with the regulations in force at the place of installation.
