Selector 2 positions 1 no (NA) full long lever
Selector 2 positions 1 no (NA) full long lever

Selector 2 positions 1 no (NA) full long lever

€1.85 Tax included

€1.53 tax excl.

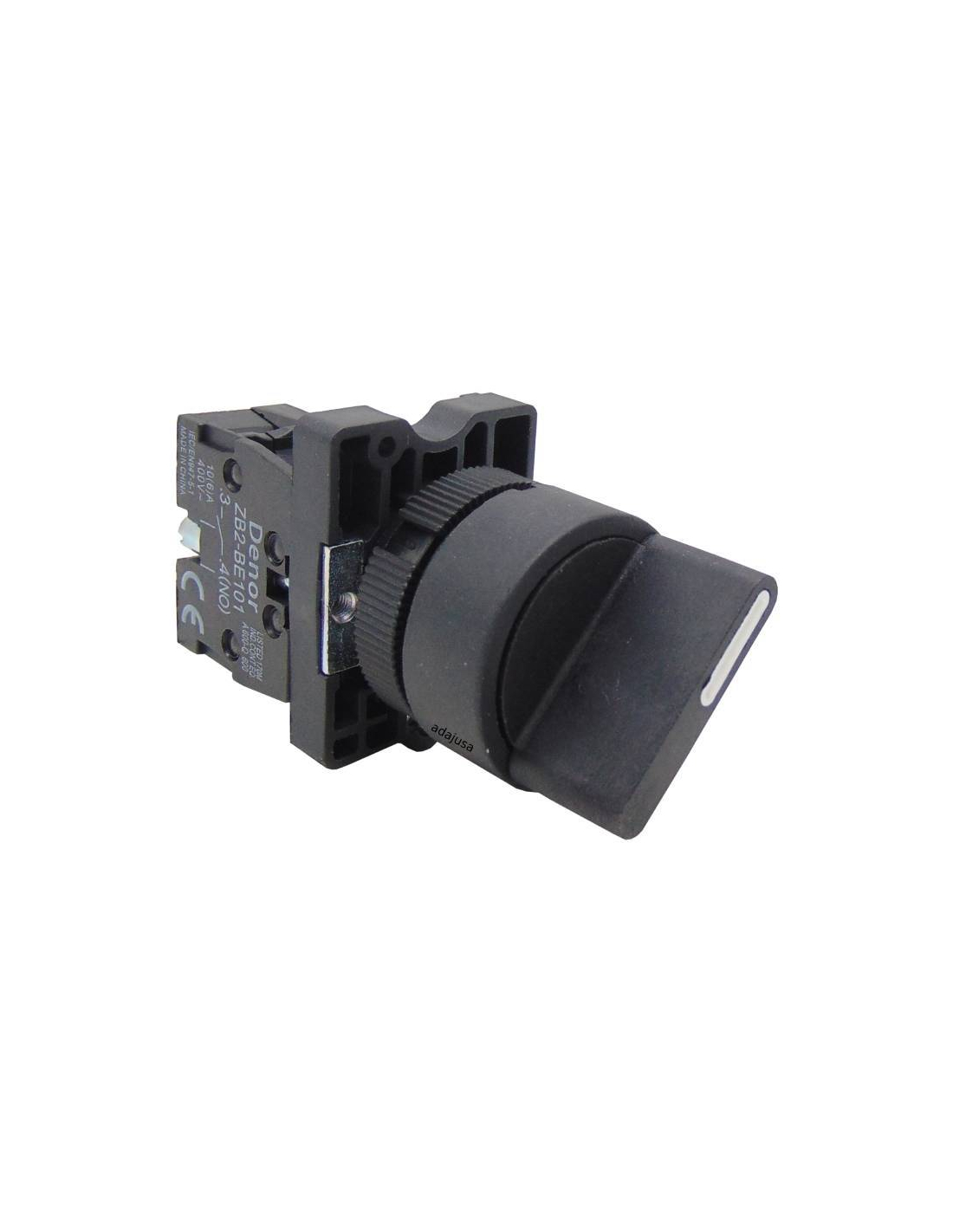

Long lever selector 2 positions held, 1 no (NA).

The supply includes a selector and a no.

Reference: NG22-EJ21


No queries yet, leave the first!


Long lever selector 2 positions maintained, no (NA), possibility to add additional contacts. Drill diameter 22 mm.

The supply includes a selector and a no.

Characteristics:

  • Fabricante/Proveedor: OMU/Mixvil
  • Reference: NG22-EJ21
  • Color: Black
  • Number of positions: 2 held
  • Contact: 1 NA
  • Operating voltage: 230V
  • Contact Capacity: 6A
  • Rated thermal current: 10/6A
  • Nominal shock resistance: 6kV
  • Short circuit resistance: 1000 A (with 10 A gG ballast)
  • Connection cable: 1 × 0.5... 1 × 2.5 mm2, (2 × 1.5 mm2)
  • Cable connection: with screw terminals
  • Mechanical life: 1 × 106 switching cycles
  • Activation force: max. 20 N (contact closure)
  • Disconnection force: 8 ... 15 N (opening of contact)
  • Vibration resistance (IEC 60068-2-6): max. 8 g (40-500 Hz)
  • Impact resistance (IEC 60068-2-27): max. 15g
  • Mounting plate thickness: max. 6 mm (with reduction ring) max. 1.5 mm

Dimensions:



Material for professional use, install in compliance with the regulations in force at the place of installation.
