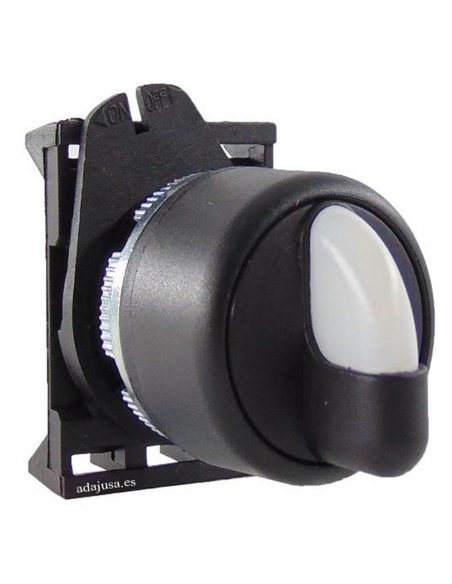

Selector head 2 fixed positions 90o - Giovenzana

Selector head of two fixed positions, angle of rotation 90º, indication in white color. Diameter of the drill for fixing of 22.5mm. Support for contacts included, allows the assembly of up to 2 contacts, both open and closed.

Manufacturer/Supplier: Giovenzana

Reference: PSMB5D0

European manufacture according to EN ISO 13850, in high-strength technopolymer, with mechanical visual indication of condition, located on the front of the button easy indication, allows to identify if the pushbutton is activated or not.

This emergency pushbutton head can only accommodate contact blocks of the Giovenzana brand, the references are:

• 1 nc (NC), spring cable attachment: GIPCW01.
• 1 no (NO), spring cable attachment: GIPCW10.
• 1 nc (NC), screw cable attachment: GIPL004001.
• 1 no (NO), screw cable fixation: GIPL004002.

The supply does not include any contact, it will have to be ordered separately.

dimensions:

Mounting the contact blocks on the media (contact blocks not included in the supply):

For more information you can download the technical data sheet by clicking on the "Attachments" tab.
Material for professional use, install respecting the regulations in force at the place of installation.
