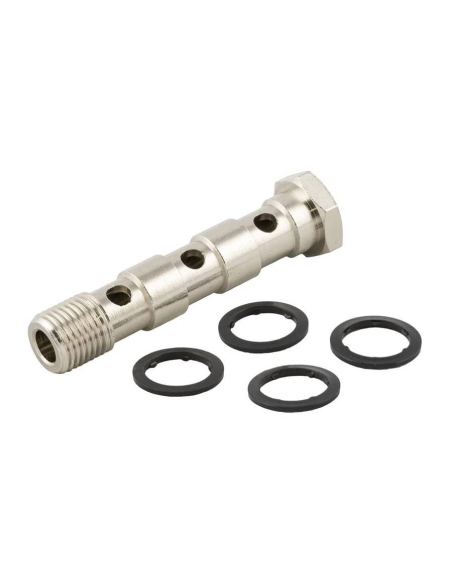

Triple hollow screw 3/8 Series 50000 - Aignep
€4.84
Tax included
€4.00 tax excl.
Triple screw with 3/8 thread for pneumatic fitting, made of chrome-plated brass. A very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention .
Series: 50000
Reference: 51430 3/8
Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Triple screw with 3/8 thread for pneumatic distribution ring, made of chrome-plated brass. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention .
The supply includes the screw and four toothed joints. The gaskets can also be purchased separately as spare parts (reference 1610) from the Aignep brand.
Technical characteristics:
- Manufacturer: Aignep .
- Reference: 51430 3/8
- Fluid: Vacuum - Compressed air.
- Operating pressure: -0.99 bar to 20 bar .
- Material: Chromed brass.
- Number of joints: 4
- Toothed joints: Nylon PA66
- Working temperature: -20ºC to +80ºC.
- Thread regulations:
- Conical gas conforming to ISO 7.1, BS 21, DIN 2999
- Cylindrical gas conforming to ISO 228 Class A
- ISO R/262 compliant metric
Material for professional use, install in compliance with the regulations in force at the installation site.
