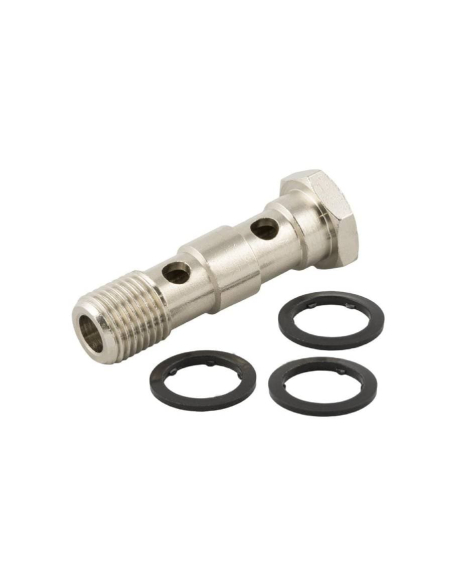

Double hollow screw 1/2 Series 50000 - Aignep

Double screw with 1/2 thread for pneumatic distribution ring, made of chrome-plated brass. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention .

The supply includes the screw and three toothed joints. The gaskets can also be purchased separately as spare parts (reference 1610) from the Aignep brand.

Technical characteristics:

• Manufacturer: Aignep .
• Reference: 51420 1/2
• Fluid: Vacuum - Compressed air.
• Operating pressure: -0.99 bar to 20 bar .
• Material: Chromed brass.
• Number of joints: 3
• Toothed joints: Nylon PA66
• Working temperature: -20ºC to +80ºC.
• Thread regulations:
  • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
  • Cylindrical gas conforming to ISO 228 Class A
  • ISO R/262 compliant metric

Material for professional use, install in compliance with the regulations in force at the installation site.
