Terminal 35 mm ground TSKA Series

Name: Terminal 35 mm ground TSKA Series
Brand: TRACON
SKU: TSKA35JD
Price: 5.0578 EUR
Availability: InStock

€5.06 Tax included

€4.18 tax excl.

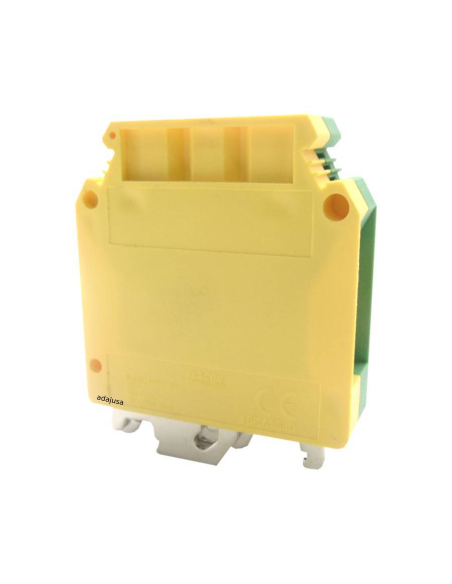

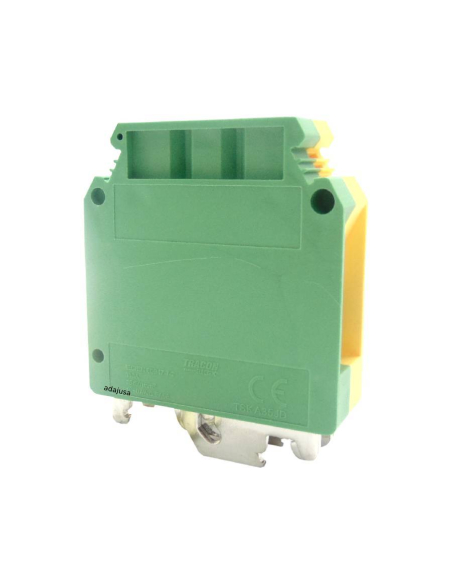

Terminal yellow-green 35mm for ground connection, screw connection and tightening by clamp, DIN rail mounting. Quick installation and use for general applications.

Part number: TSKA35JD

Representative image for illustrative purposes, the item supplied will correspond to the specifications shown.

No queries yet, leave the first!

Privacy

Shipments

Returns

Terminal 35mm yellow-green colored electrical connection plug for grounding conductor, DIN rail mounting with lateral wiring. Screw connection and tightening by clamp. Suitable for general applications where high reliability and easy installation are required.

Compact size, highly heat-resistant polyamide plastic housing, self-extinguishing (according to UL94-V0).

Technical characteristics:

Manufacturer/Supplier: Tracon
Part number: TSKA35JD
Terminal color: Yellow-Green
Thin conductor cross-section with ferrule: 0.75 - 35mm² (0.75 - 35mm²)
Solid conductor cross-section: 0.75 - 50mm² conductor cross section
Connection type: Screw
Material: Polyamide
Standards: EN 60947-7-1, EN 60947-7-2

W: 16mm, L: 55mm, H: 51mm, M: M6

Material for professional use, install in compliance with the regulations in force at the place of installation.
