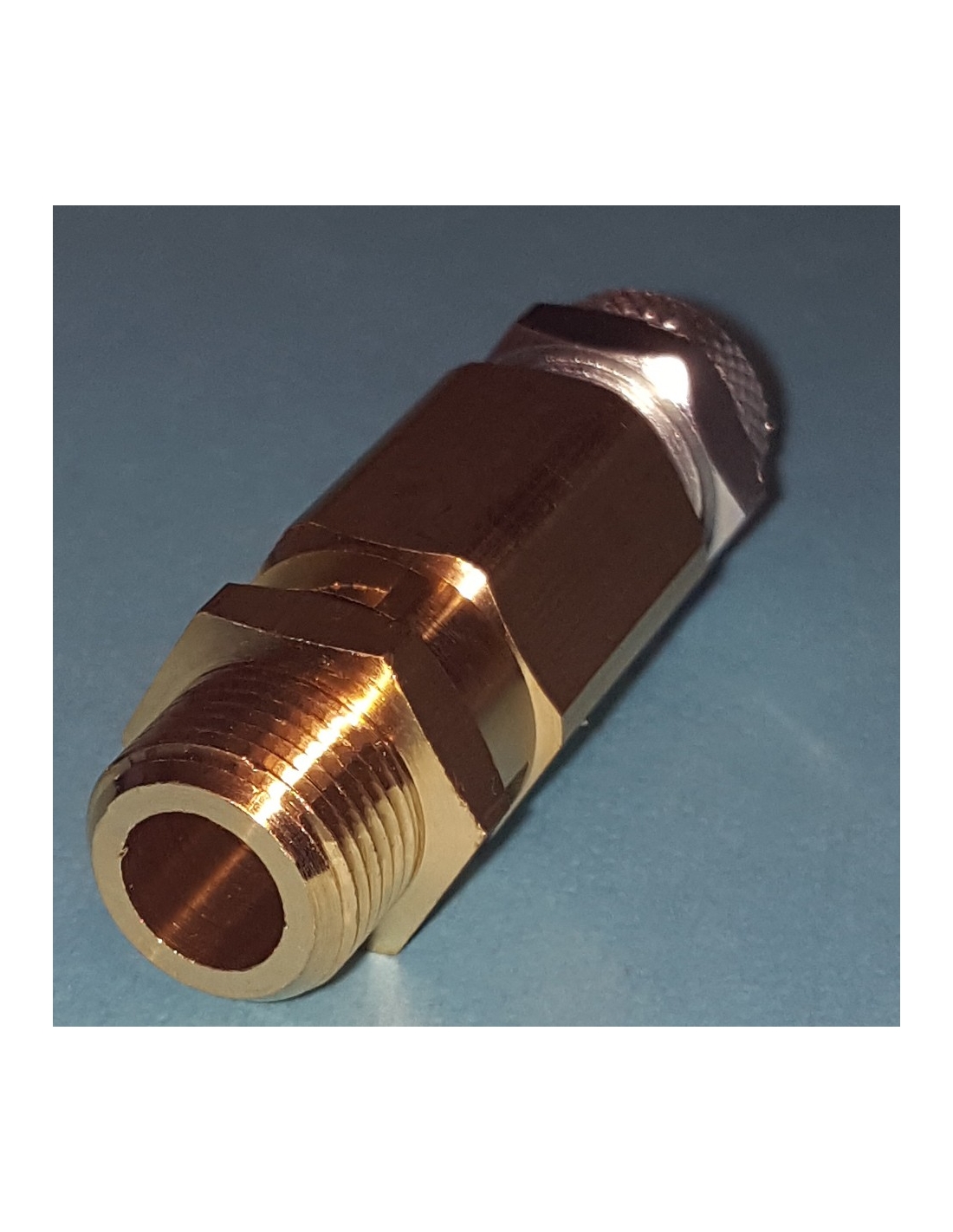

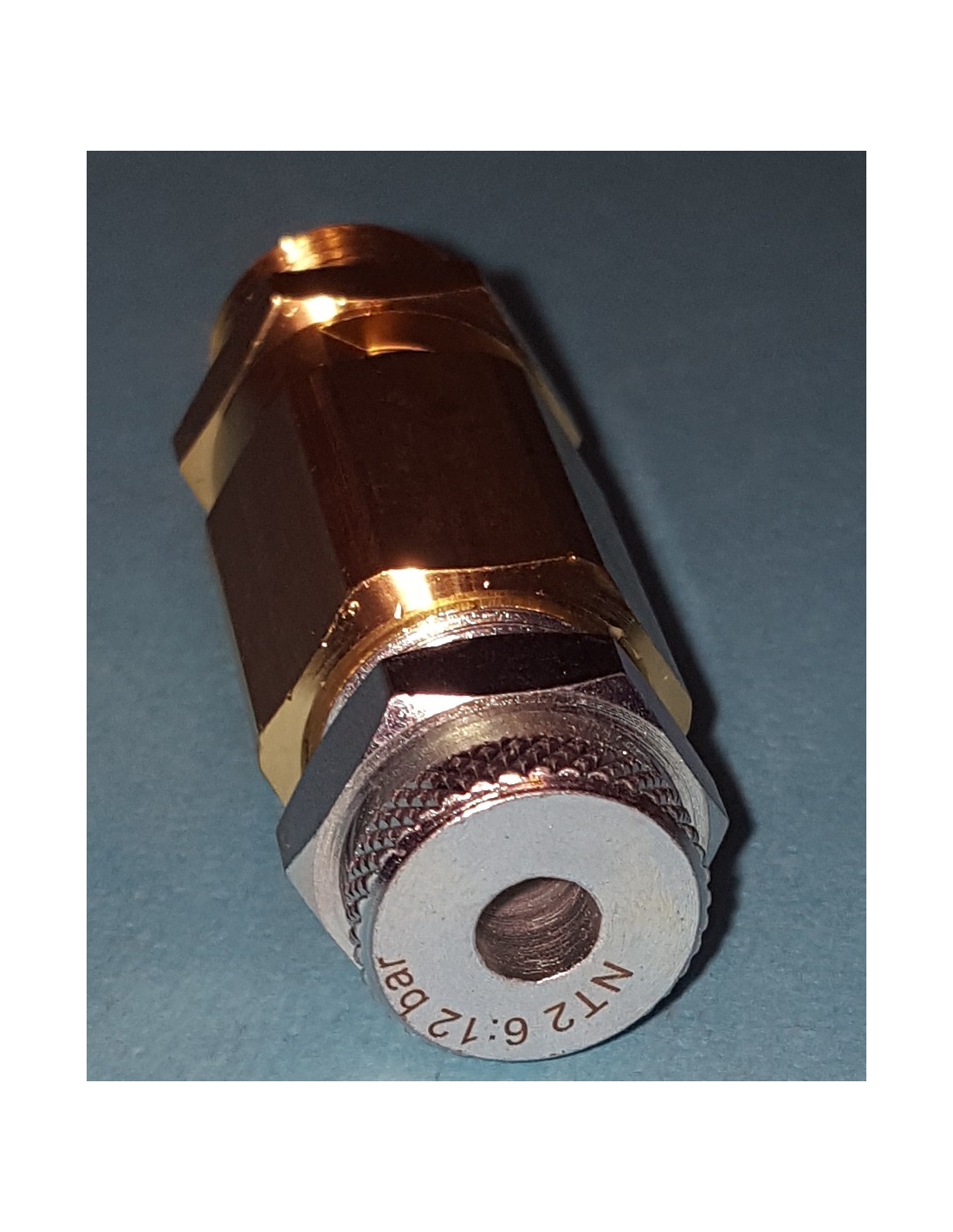

1/4 adjustable overpressure safety valve

Adjustable overpressure safety valve 1/4 6 - 12 BAR - Metal Work

Name: Adjustable overpressure safety valve 1/4 6 - 12 BAR - Metal Work
Brand: Metal Work
SKU: VS14NT2
Price: 4.7916 EUR
Availability: InStock

€4.79 Tax included

€3.96 tax excl.

Overpressure safety valve for the relief of pneumatic circuits and compressors. With 1/4" thread ready to be adjusted by the user.

The range of settings is between 6 and 12 bars of pressure.

Reference: VS14NT2

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Overpressure valve with 1/4" thread and prepared to be adjusted by the user between pressure ranges of 6 to 12 bar.

The usual use of this valve is to avoid overpressions in the circuits in which it is installed being the type of seat of the total lifting joint.

On request they can be supplied with other adjustment ranges.

Technical details:

Reference: VSN14NTS.
Connection thread: G 1/4".
Adjustment pressure: 6 to 12 Bars.
Overpressure: +10% adjustment pressure.
Maximum pressure: 40 Bars.
Nominal diameter: 6mm.
Flow rate: 1300 l/min.

Dimensiones válvulas seguridad sobrepresión

Dimension "A": 17mm.
Dimension "B": 50mm.
Dimension "C": 10mm.

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"

Overpressure valve

Certificate Overpressure safety valve

Download (196.34KB)

valve 1_4

Overpressure Safety Valve Tab

Download (86.17KB)
