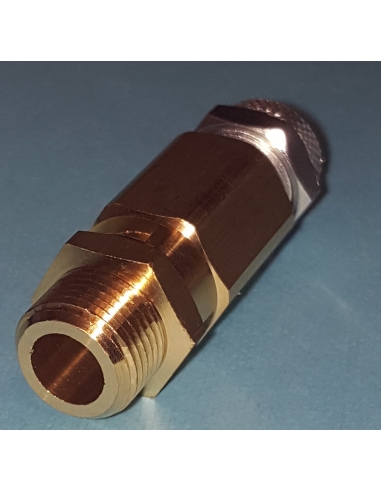

1/4 adjustable overpressure safety valve

Overpressure safety valve 1/4 adjustable 0.5 - 5 bar - Metal Work

Name: Overpressure safety valve 1/4 adjustable 0.5 - 5 bar - Metal Work
Brand: Metal Work
SKU: VS14NT1
Price: 5.2272 EUR
Availability: InStock

€5.23 Tax included

€4.32 tax excl.

Safety valve against overpressures for the relief of pneumatic circuits and compressors. With 1/4" thread prepared to be adjusted by the user.

The adjustment range is between 0.5 and 5 bars of pressure.

Reference: VS14NT1

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Overpressure valve with 1/4" thread and ready to be adjusted by the user between pressure ranges of 0.5 to 5 bars.

The usual use of this valve is to avoid overpressures in the circuits in which it is installed, being the type of seat of the total lifting joint.

On request they can be supplied with other adjustment ranges.

Technical characteristics:

Provider: Metal Work
Reference: VS14NT1
Connection thread: G 1/4".
Adjustment pressure: 0.5 to 5 Bars.
Overpressure: +10% set pressure.
Maximum pressure: 5 Bars.
Nominal diameter: 6mm.
Flow: 1300 l/min.

Overpressure safety valve dimensions

Dimension "A": 17mm.
Dimension "B": 50mm.
Dimension "C": 10mm.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Overpressure valve

Certificate Overpressure safety valve

Download (196.34KB)

valve 1_4

Overpressure Safety Valve Tab

Download (86.17KB)
