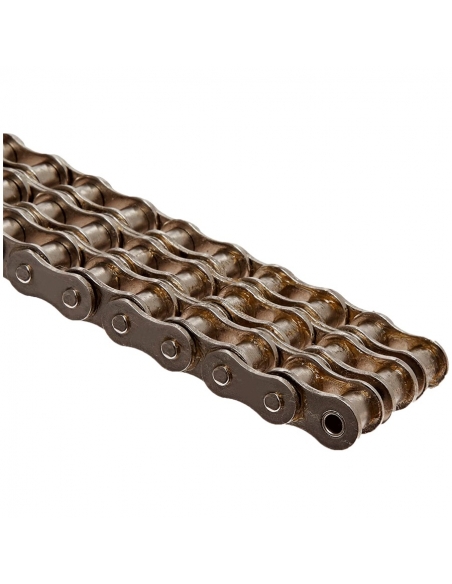

Triple stainless steel roller chain pitch 12.70 1/2 08BSS-3 DIN 8187

Triple roller chain in stainless steel, according to the requirements of ISO DIN 8187.

A roller chain is a series of bearings connected by meshes (plates), great versatility and durability in environments with a lot of dust, oil, water, greases, etc... Roller chains develop a synchronous power transmission, without slippage, and the effectiveness of the transmission does not depend on the mechanical tension transmitted.

They can be used in a wide range of industrial and general applications, engines, compressors, printing presses, conveyors, agriculture ....


Features:

• Manufacturer ISB
• Part number: 57250183
• Stainless steel
• Sold in packs of 5 meters of chain.
• Pitch (P): 12.70 mm
• Roller diameter (d1): 8.51 mm (max)
• Inner width (b1): 7.75 mm (min)
• Shaft diameter (d2): 4.45 mm (max)
• Joint length
  • (L): 44.90 mm (max)
  • (Lc): 47.20 mm (max)
• Mesh height (h2): 11.81 mm (11.81 mm)
• Width between axes (T): 1.60 mm
• Mesh thickness (Pt): 13.92 mm (13.92 mm)
• Minimum breaking load (Q ISO/DIN) 44.50/47.50 kN
• Average breaking load (Q0): 50.20 kN
• Approximate weight: 2.03 kg/m

(*) Under correct lubrication conditions.

Material for professional use, to be installed in compliance with the regulations in force at the place of installation

For further information you can download the technical data sheet by clicking on the "Attachments" tab
