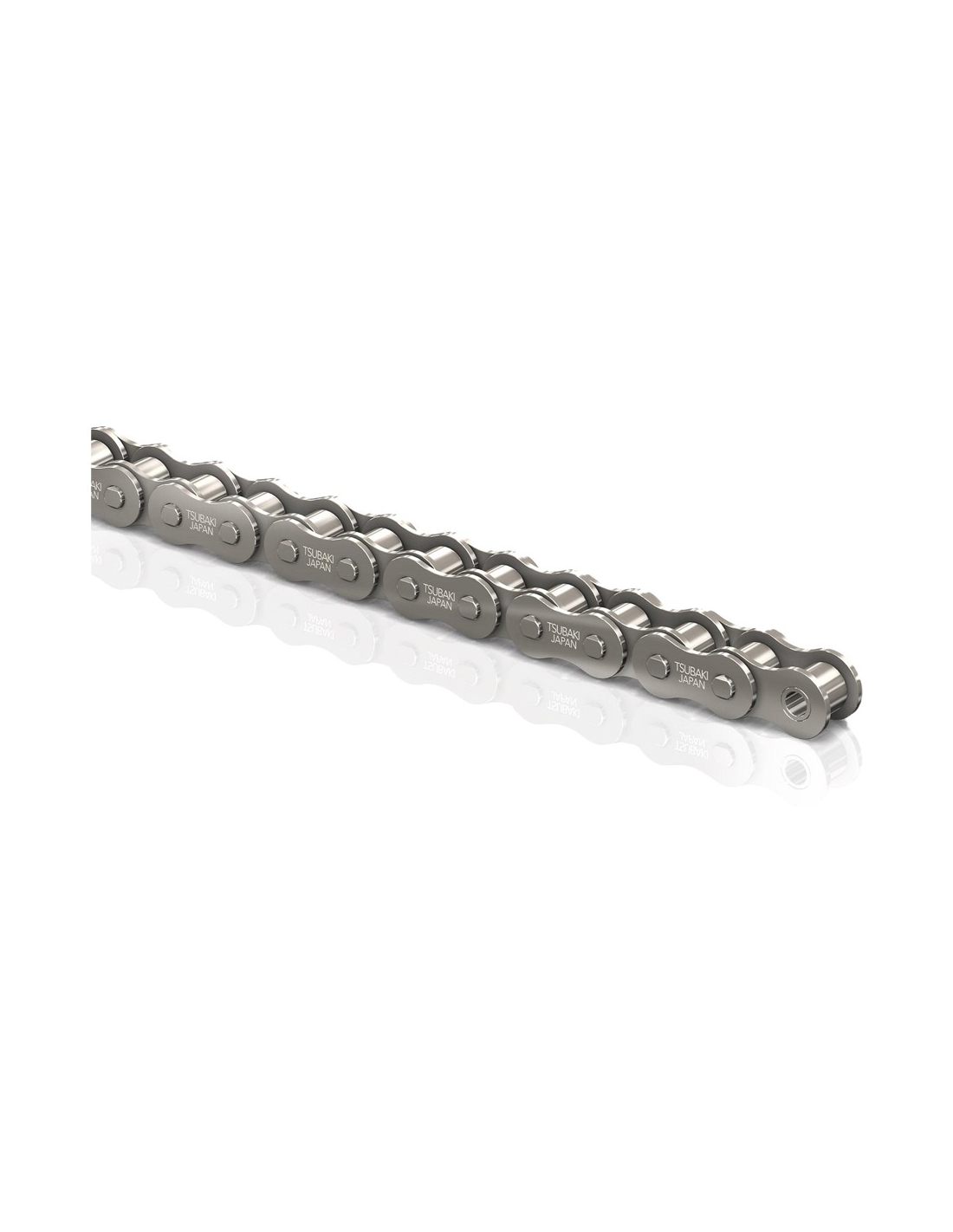

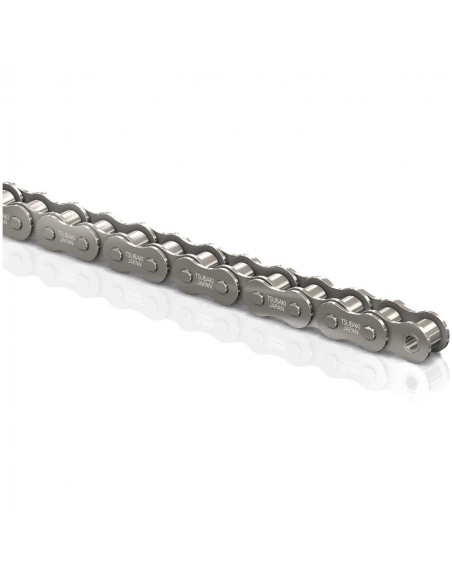

Stainless steel roller Chain , in accordance with the requirements of the ASA DIN 8188 standard. Manufactured in Japan.
A roller chain is a series of bearings connected by meshes (plates), great versatility and durability in environments with a lot of dust, oil, water, grease, etc... Roller chains develop synchronous power transmission, without slipping, and the effectiveness of the transmission does not depend on the mechanical stress transmitted.
They can be used in a wide range of industrial and general applications, engines, compressors, printing presses, conveyors, agriculture...
All basic components of this chain are made of SUS304 stainless steel (except the loops, which are made of SUS301).
These chains can be used in special environments, such as underwater and in acidic and alkaline applications. They can also be used in low and high temperatures (-20°C to +400°C). SUS304 is only slightly magnetic, which is a result of the cold setting process.
Characteristics:
- Manufacturer: Tsubaki
- Reference: CADE-RS ASA-60-2-SS:TSU
- Stainless steel
- Sale in packages of 3 meters of chain.
- Pitch (P): 19.05mm
- Roller diameter (d 1 ): 12.07 mm (max)
- Internal width (b 1 ): 11.68 mm (min)
- Shaft diameter ( d2 ): 5.72 mm (max)
- union length
- (L): 42.00mm (max)
- (Lc): 44.40mm (max)
- Mesh height (h 2 ): 16.13 mm
- Width between axles (T): 1.85 mm
- Mesh thickness: (Pt): 19.46 mm
- Minimum breaking load (Q ISO/DIN) 57.80 kN
- Average breaking load (Q 0 ): 66.60 kN
- Approximate weight: 2.31 kg/m
(*) In correct lubrication conditions.
Material for professional use, install in compliance with the regulations in force at the installation site.
For more information you can download the technical sheet by clicking on the "Attachments" tab
