Roller chain sprockets 3/8 x 7/32 06B-1 Z27 DIN8187 - ISO R606

€17.15 Tax included

€14.17 tax excl.

Single pinion for single roller chain model 06B-1 according to European standard DIN8187 - ISO/R606

Reference: PINHON Z27 3/88

Teeth: 27

ISO: 06B-1

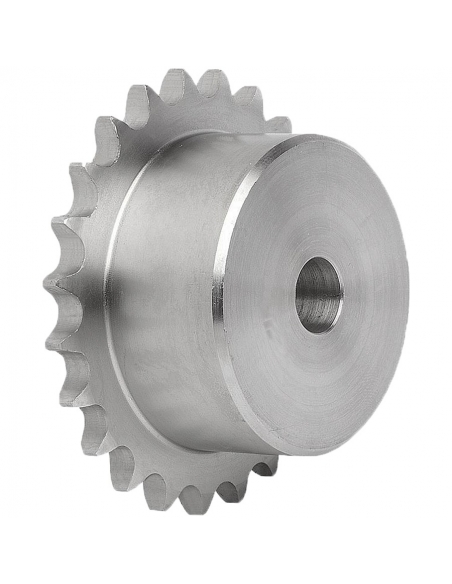

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Simple sprockets for single roller chains 06B-1 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z27 3/88


Characteristics:

  • 3/8" x 7/32" mm ISO 06B-1
  • 9.525 x 5.72 mm
  • Teeth: 27
  • Tooth radius (r): 10 mm
  • Curved area width (C): 1 mm
  • Tooth width (h1): 5.3 mm
  • Outer Diameter (S): 86.0
  • Primitive diameter (Dp): 82.04
  • Center diameter (d): 60
  • Hub diameter (D): 12 (Non-mechanical shaft diameter)
  • Width (H): 28


Material for professional use, install in compliance with the regulations in force at the place of installation.
