Digital flow and pressure sensor 2-500l/min PNP + Analog output (1-5V) - Aignep

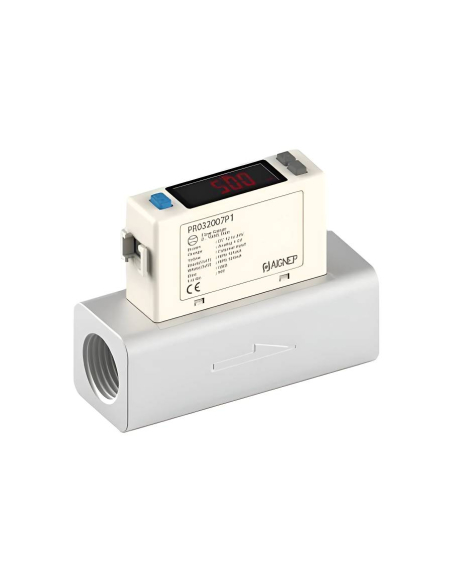

Compact size digital measurement sensor for simultaneous control of flow or flow and pressure in a single device, it has a seven-segment LCD display that allows the information to be displayed in green, red or orange depending on the data configuration established. It has a PNP type output and an analog voltage output (1 ~ 5V); It allows pressure measurements from 0.9 to 10 bar and flow rates from 2 to 500 l/min. Straight pipe connection system using G1/2 female thread.


The device, which allows you to obtain continuously updated information through a simple visualization, has an external communication interface input.

The display directly shows the pressure or inlet flow reading, if it is lower than the programmed values this reading will appear in red, if it is equal to or higher it will appear in green. The output will remain unactivated as long as the inlet pressure or flow rate is below the set values, and will be activated when the inlet pressure or flow rate reaches or exceeds these values.

Technical characteristics:

• Maker: Aignep
• Reference: PR030505P1
• Measurement type: Pressure and flow
• Pressure range: 0.9 to 10bar
• Measured flow range: 2 to 500l/min
• Fluid: Filtered air, non-corrosive, non-flammable gas
• Supply voltage: 12-24Vdc ±10%
• Current consumption: ≤50mA
• Connection size: G1/2
• Display color: Red/Green/Orange
• Protection grade: IP40
• Operating temperature: 0 to 50C
• Working fluid temperature: 0 to 50C
• Conductor cable: Oil resistance cable (PVC) Ø4 - 26 AWG (0.15 mm) - 6 cores

Dimensions:

Output circuit connection diagram:

Mounting accessory (not included):

• PR03B05 mounting bracket

For more information you can download the technical sheet by clicking on the "Attachments" tab .

Material for professional use, install in compliance with the regulations in force at the installation site.
