€12.20 Tax included

€10.08 tax excl.

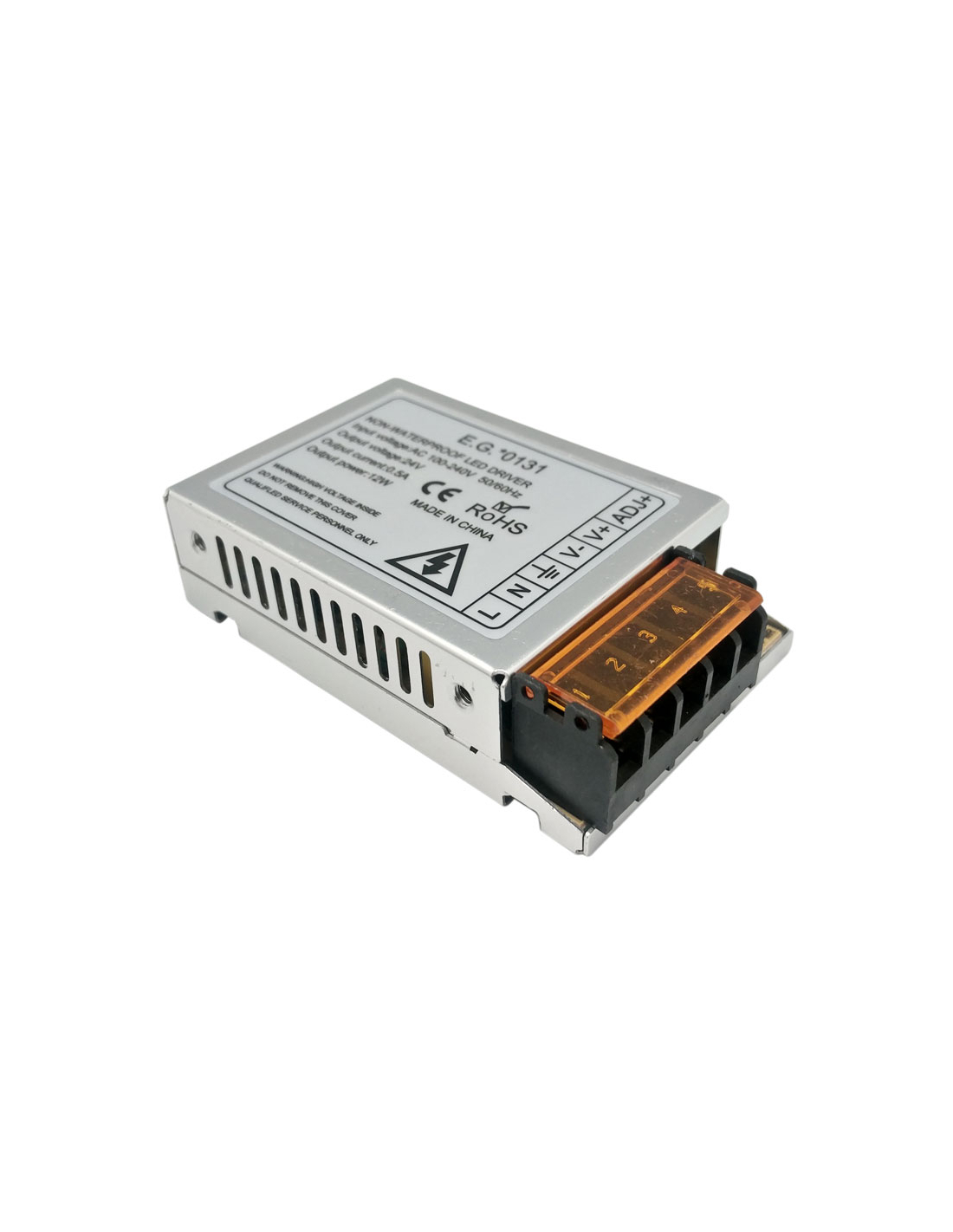

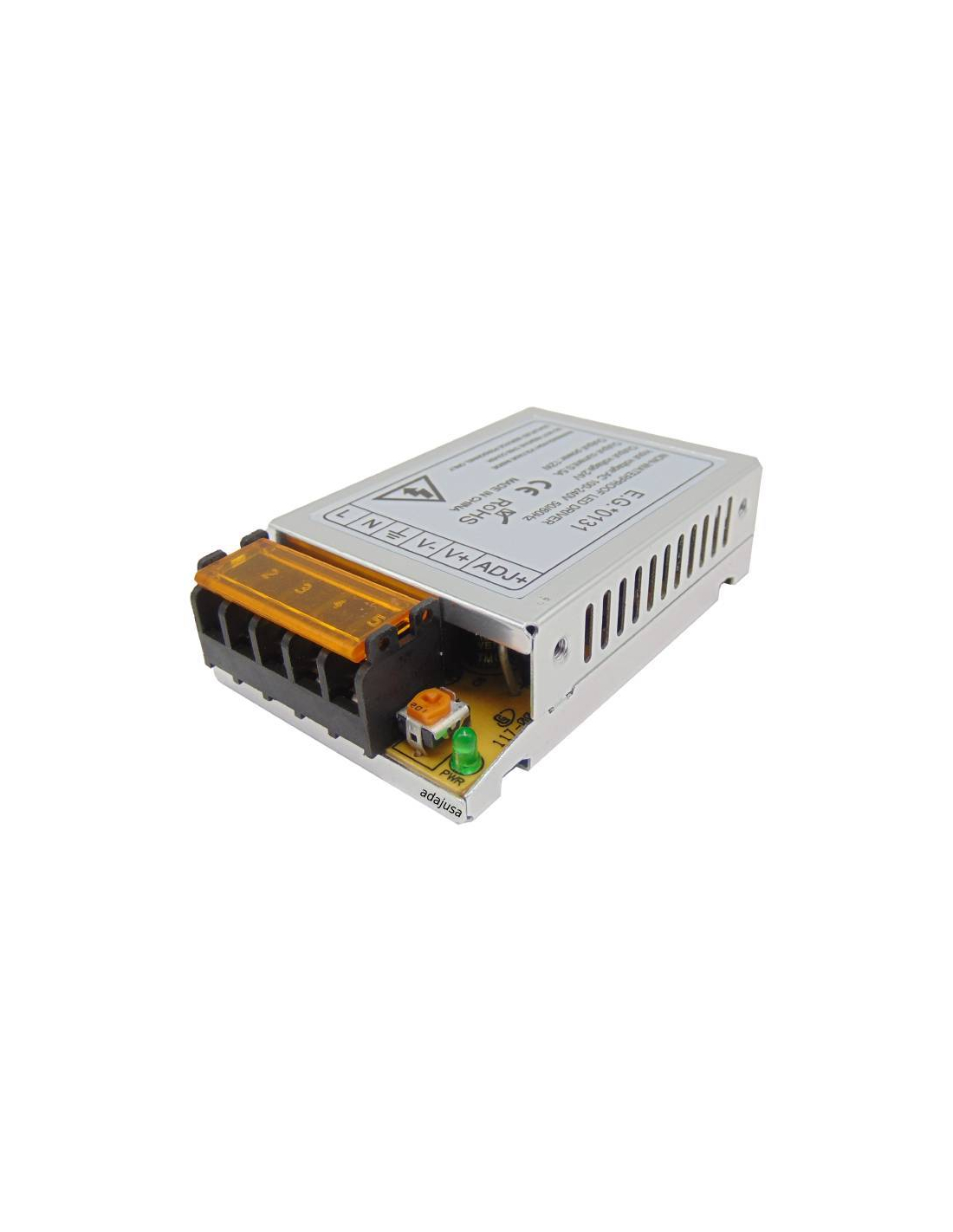

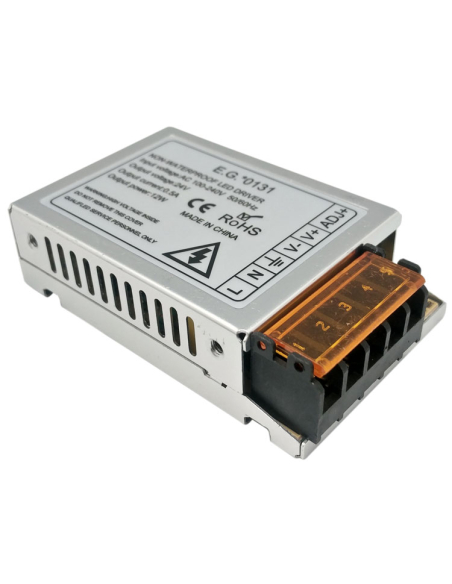

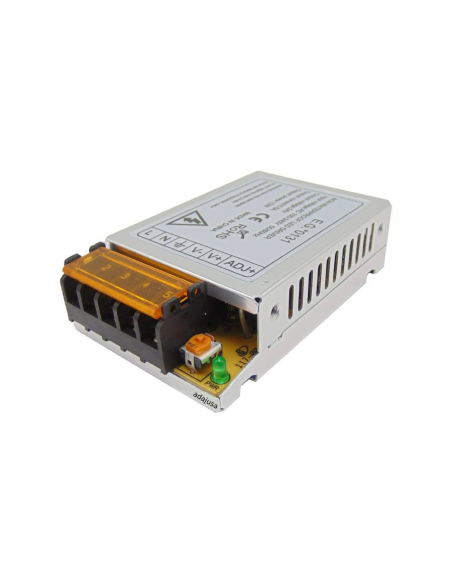

Power supply industrial stabilized, single output of 12Vdc 1.25A, switched type of 15W power. Supply voltage 100-230Vac, protected against overload and short circuit.

Metallic box for industrial use, for mounting on bottom panel by means of screws. High performance and reliability required in industrial use.


Reference: 0119


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Power supply industrial stabilized single output 12Vdc, rated current 1.25A, and 15W power. Supply voltage 100-230Vac.

The power supply is mounted in a very robust metal box for industrial use, for mounting on panel bottom by means of screws. High performance and reliability required for industrial use.

With a high overload capacity and protected against short circuits at the output. Automatic reset against overloads and short circuits.


Technical characteristics:

  • Manufacturer/Supplier: Euroconnex
  • Part number: 0119
  • Mode of operation: Switched
  • Mounting: Cabinet bottom or frame. Fastening by means of screws

OUTPUT
  • Output voltage: 12Vdc
  • Nominal output current: 1,25 A
  • Output current range: 0 -1,25A
  • Rated output power: 15W
  • Ripple and noise: 120mVpp
  • Voltage tolerance: ± 5%
  • Line regulation: ±0.5% Line regulation: ±0.5% Line regulation: ±0.5% Line regulation: ±0.5% Line regulation: ±0.5%
  • Load regulation: ±1% Load regulation: ±1% Load regulation: ±1% Load regulation: ±1
  • Configuration, rise time: 100ms, 50ms/230Vac 100ms,50ms/115Vac at full load
  • Standby time: 20ms/230Vac 10ms/115Vac at full load

INPUT
  • Input Voltage: 100 - 240Vac
  • Frequency range: 47 - 63Hz
  • Efficiency: 80% efficiency
  • Current: 0,3A 230Vac 0,5A/115Vac
  • Input current: Cold start 30A 230Vac
  • Leakage current

PROTECTION
  • Overload: Above 105% of rated power. Automatic reset
  • Short circuit: Automatic reset

OTHERS
  • Air convention cooling
  • Power LED indicator
  • No load power consumption
  • Operating temperature: 0℃ to +40℃
  • Operating humidity: 20% to 90% RH
  • Operating conditions: -20℃ to +85℃,10% to 95%RH
  • CE ROHS standard
  • Dimensions: 78x47x22mm
  • Protection degree: IP00





Professional use material, install in compliance with the regulations in force at the place of installation.
Attention: This item is not waterproof, keep away from water or wet surfaces.
