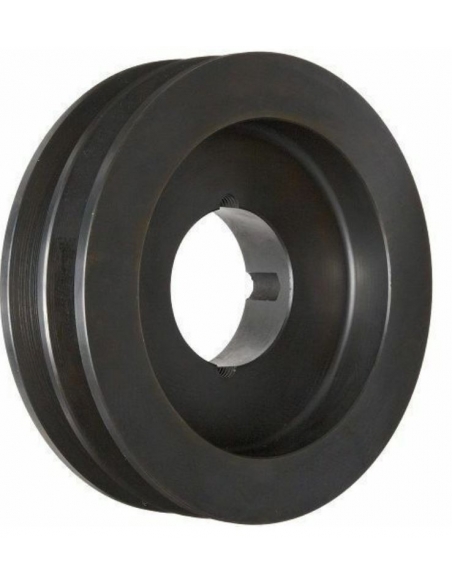

SPZ 160x2 V-belt pulley T2012 taper slots

€62.06 Tax included

€51.29 tax excl.

Pulley for trapezoidal belts Ø160mm, 2 slots. Machined for conical bushing - taper lock T2012. Made of cast steel and valid for all belts with "V" profile type Z and SPZ. Manufactured according to ISO4183 - DIN2211.

  • Type of straps: Profile in "V" type Z and SPZ.
  • Diameter: 160mm.
  • number of strap slots: 2.
  • Taper: T2012.

Imagen representativa para fines ilustrativos, el artículo suministrado corresponderá a las especificaciones indicadas.

No queries yet, leave the first!


Pulley for trapezoidal belts profile in "V", for mechanical transmission. Made of cast iron and steel, and according to DIN2211 - ISO4183.

Machined trapezoid pulley for conical bushing "Taper Lock".

Specifications:

  • Type: trapezoid profile in "V".
  • Models: Z and SPZ.
  • Material: cast steel.
  • Primitive diameter: 160mm.
  • Number of slots: 2.
  • Type of conical bushing - taper: T2012
  • Manufacturing standard: DIN2211 - ISO4183.


Note: The taper (conical bushing) is not included in the supply.

Dimensions:

  • (Dp): 160
  • (Od): 164
  • (F): 28
  • (L): 32
  • (M): 4
  • (N): 100
  • Taper: 2012



Material for professional use, install in compliance with the regulations in force at the place of installation.
