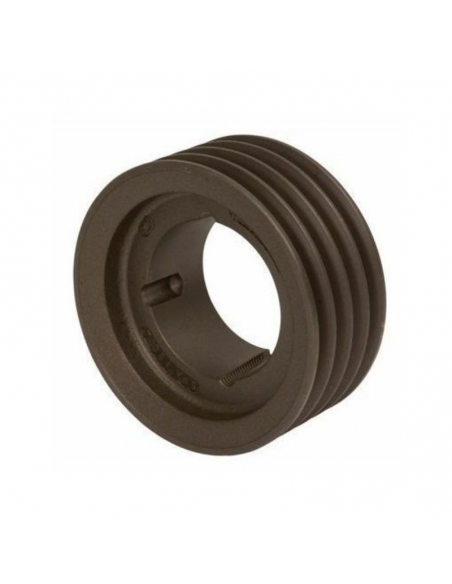

Pulley for trapeze straps SPB 1000x4 Plug Slot T4040

€1,480.34 Tax included

€1,223.42 tax excl.

Pulley for trapeze straps 1000mm, 4 slots for belts. Machined for tapered bushing - T4040 lock cap. Made of cast steel and valid for all belts with "V" type B and SPB profile. Manufactured according to ISO4183 - DIN2211.

  • Belt type: "V" type B and SPB profile.
  • Diameter: 1000 mm.
  • Number of belt slots: 4.
  • Taper: T4040

Imagen representativa para fines ilustrativos, el artículo suministrado corresponderá a las especificaciones indicadas.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pulley for trapezoidal belts profile in "V", for mechanical transmission. Made of cast iron and steel, and according to DIN2211 - ISO4183.

Machined trapezoid pulley for conical bushing "Taper Lock".

Specifications:

  • Type: trapezoid profile in "V".
  • Models: B and SPB.
  • Material: cast steel.
  • Primitive diameter: 1000mm.
  • Number of slots: 4.
  • Type of conical bushing - taper: T3535
  • Manufacturing standard: DIN2211 - ISO4183.


Note: The taper (conical bushing) is not included in the supply.


Dimensions:

  • (Dp): 1000
  • (Od): 1007
  • (F): 82
  • (J): 954
  • (k): 10
  • (L): 102
  • (M): 10
  • (N): 210
  • Taper: 4040



Material for professional use, install in compliance with the regulations in force at the place of installation.
