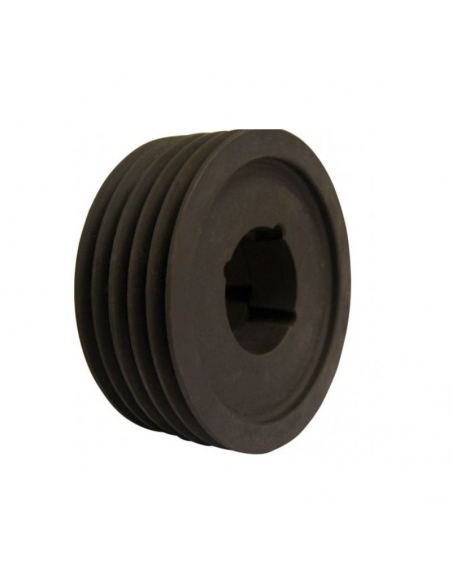

Pulley for trapezoidal SPB 500x5 plug slot T3535

€606.69 Tax included

€501.40 tax excl.

Pulley for trapezoidal belts Ø500mm, 5 grooves for belts. Machined for conical bushing - taper lock T3535. Made of cast steel and valid for all belts with profile in "V" type B and SPB. Manufactured according to ISO4183 - DIN2211.

Reference: POLE-SPB-500X5-T3535

  • Type of straps: Profile in "V" type B and SPB.
  • Diameter: 500 mm.
  • number of strap slots: 5.
  • Taper: T3535

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pulley for "V" profile V-belts, for mechanical transmission. Manufactured in cast iron and steel, and according to DIN2211 - ISO4183.

Machined V-belt pulley for tapered bushing "Taper Lock".

Technical characteristics:

  • Type: "V" profile trapezoidal.
  • Models: B and SPB.
  • Material: cast steel.
  • Primitive diameter: 500mm.
  • Number of grooves: 5
  • Type of taper bushing - taper: T3535
  • Manufacturing standard: DIN2211 - ISO4183.


Note: The taper (taper bushing) is not included in the scope of supply.


Dimensions:

  • (Dp): 500
  • (Od): 507
  • (F): 101
  • (J): 457
  • (L): 89
  • (M): 12
  • (N): 175
  • Taper: 3535



Material for professional use, to be installed in compliance with the regulations in force at the place of installation.
