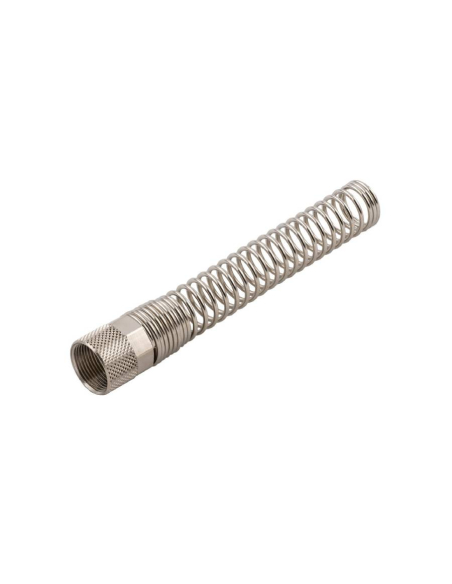

Fixing or locking nut with spring for 6/4 diameter tube, compatible with series 1000 quick fitting, nickel-plated brass nut and AISI 304 stainless steel spring. The locking nut allows you to connect thermoplastic tubes for pneumatic applications with extreme security. and fluidic. Locking can be done manually or with a key.
It is very useful in a multitude of applications such as compressed air, pneumatic automation, industrial water circuits, inert gases, vapors, fluids, vacuum, etc. The pressure and temperature are determined based on the tube used, therefore these values are defined based on the characteristics of the tube itself.
Mounting:
Technical characteristics:
- Manufacturer: Aignep .
- Reference: 1710 6/4
- Tube diameter: 6/4
- Fluid and liquids: Compatible with the connection type
- Nut Material: Nickel Plated Brass
- Spring material: AISI 304 stainless steel - EN 1.4301
- Connection tubes: Material PA6, PA11, PA 12, Polyethylene, Polyurethane (*) , PTFE and FEP
- Specific measurements for polyurethane tube: 8/5 - 8/5.5, 12/9
- Thread regulations:
- Conical gas conforming to ISO 7.1, BS 21, DIN 2999
- Cylindrical gas according to ISO 228 Class A
- Metric according to ISO R/262.
(*) use 90 to 98 Shore, for maximum performance 98 Shore A is recommended.
Dimensions:
For more information you can download the technical sheet by clicking on the "Attachments" tab .
Material for professional use, install in compliance with the regulations in force at the installation site.
