Needle roller bearings with ribs without inner ring single row NK 05 12 TN 5x10x12 ISB - ADAJUSA
Needle roller bearings with ribs without inner ring single row NK 05 12 TN 5x10x12 ISB - ADAJUSA

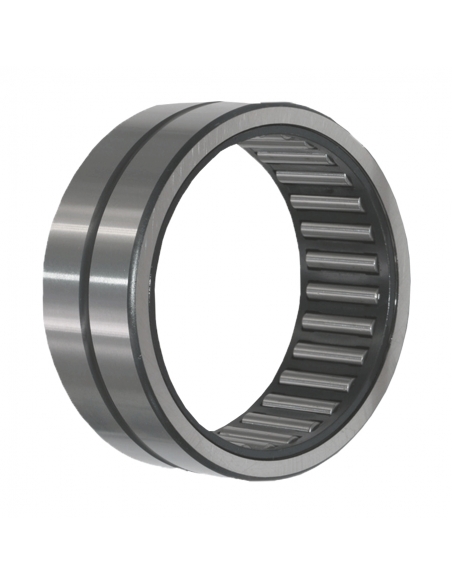

Needle roller bearings NK 5/12 5x10x12 - ISB

€8.49 Tax included

€7.02 tax excl.

Needle roller bearings (needle sleeve) single row with flanges and without inner ring, dimensions 5x10x12mm. NK needle roller bearings without an inner race, the needle roller and outer ring, form a self-retaining unit, using this bearing, for when the shaft can be hardened and ground.

Reference: NK 5/12 TN

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!


The non-removable needle roller bearings, needle roller and outer ring form a self-retaining unit. These bearings are suitable where limited radial construction space is available.

Needle roller bearings are used for rolling bearings, when the shaft can be hardened and ground.

NK ... TN bearings are light series, with lock rings without bore and lubrication groove.

Dimensions: Ø5xØ10x12mm .

For other references or measures consult.


Characteristics:

  • Material: hardened steel.
  • Dimensions
    • fw: 5mm
    • D: 10mm
    • C: 12mm
  • Load coefficients (N)
    • Dynamic C: 2850
    • Dynamic Static C0: 2520
  • Maximum rpm: 35150

Material for professional use, install in compliance with the regulations in force at the place of installation.
