Circuit breaker motor circuit breaker 20 to 25 A GV2ME22 - Schneider

€61.27 Tax included

50.64 tax excl.

GV2ME22

Three-phase motor circuit breaker circuit breaker for protection of electric motors. The regulation of the circuit breaker motor circuit breaker is between 20 and 25 A. The installation of a circuit breaker motor circuit breaker makes it possible to prevent the breakdown of electric motors, both single-phase and three-phase, due to overload, phase failure or short circuit.

Reference: GV2ME22

Esquema eléctrico disyuntor magnetotérmico

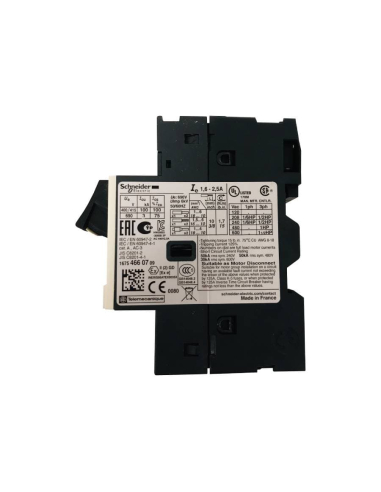

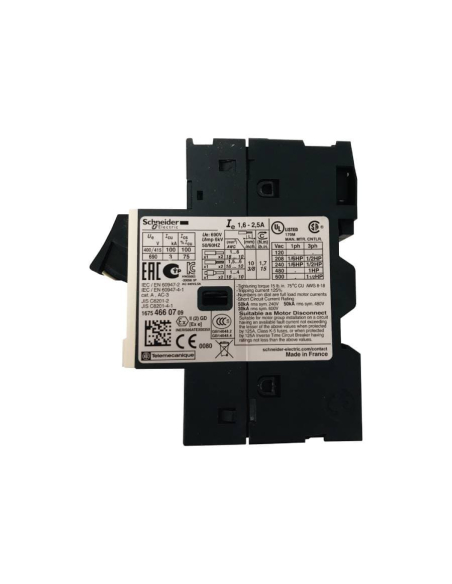

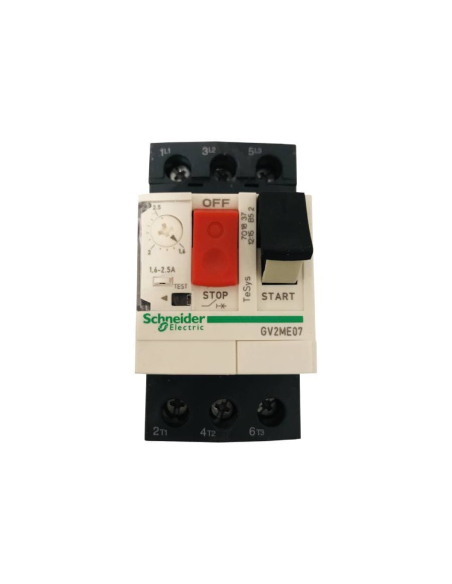

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Out of stock

1 question about the product

Privacy

Shipments

Returns

Circuit breaker motor circuit breaker for motor protection circuits by thermal disconnection (adjustable) or against short circuits (magnetic). Possibility of installation of front and side auxiliary contacts. High cutting capacity.

The installation of a circuit breaker motor circuit breaker in the power circuit of an electric motor, both three-phase and single-phase, allows to prevent breakdowns in the motor due to overload, in three-phase motors, it also allows to prevent the breakdown in the electric motor due to loss of a phase, preventing the motor from working in 2 phases.

Types of protection:

Short circuits (Magnetic)
Overload (Thermal)
Phase failure

Characteristics:

Manufacturer: Schneider Electric
Range: Tesys
Reference: GV2ME22
Maximum operating voltage (Ue): 690 V 50/60Hz
Adjustment Range (Thermal Protection): 20 to 25 A
Magnetic trigger intensity: 327A
Trigger type: Thermal and magnetic
breaking capacity (Icu): 100kA
Motor power: 11kW at 400/415 Vac, 15kW at 500 Vac
Poles: 3
Frequency: 50/60 Hz
Category of use: AC-3 according to IEC 60947-1. Category A according to IEC 60947-2
Drive: By pushbuttons
Fastening: din-rail
Degree of protection: IP-20 IK-04

To expand the information you can download the technical sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the place of installation.

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

Data sheet GV2ME22

Download (139.73KB)
