Modular contactor 25A 2Poles open 230Vac - Tracon

Name: Modular contactor 25A 2Poles open 230Vac - Tracon
Brand: TRACON
SKU: SHK2-25
Price: 10.4665 EUR
Availability: InStock

€10.47 Tax included

€8.65 tax excl.

Modular electrical contactor with 2 normally open poles (NO) with a capacity of 25A in category AC-1/AC-7a. Coil voltage 230Vac. For domestic applications, to control home automation systems, domestic motors, heating, lighting, ventilation and general uses. Size 1 module (18mm).

Reference: SHK2-25

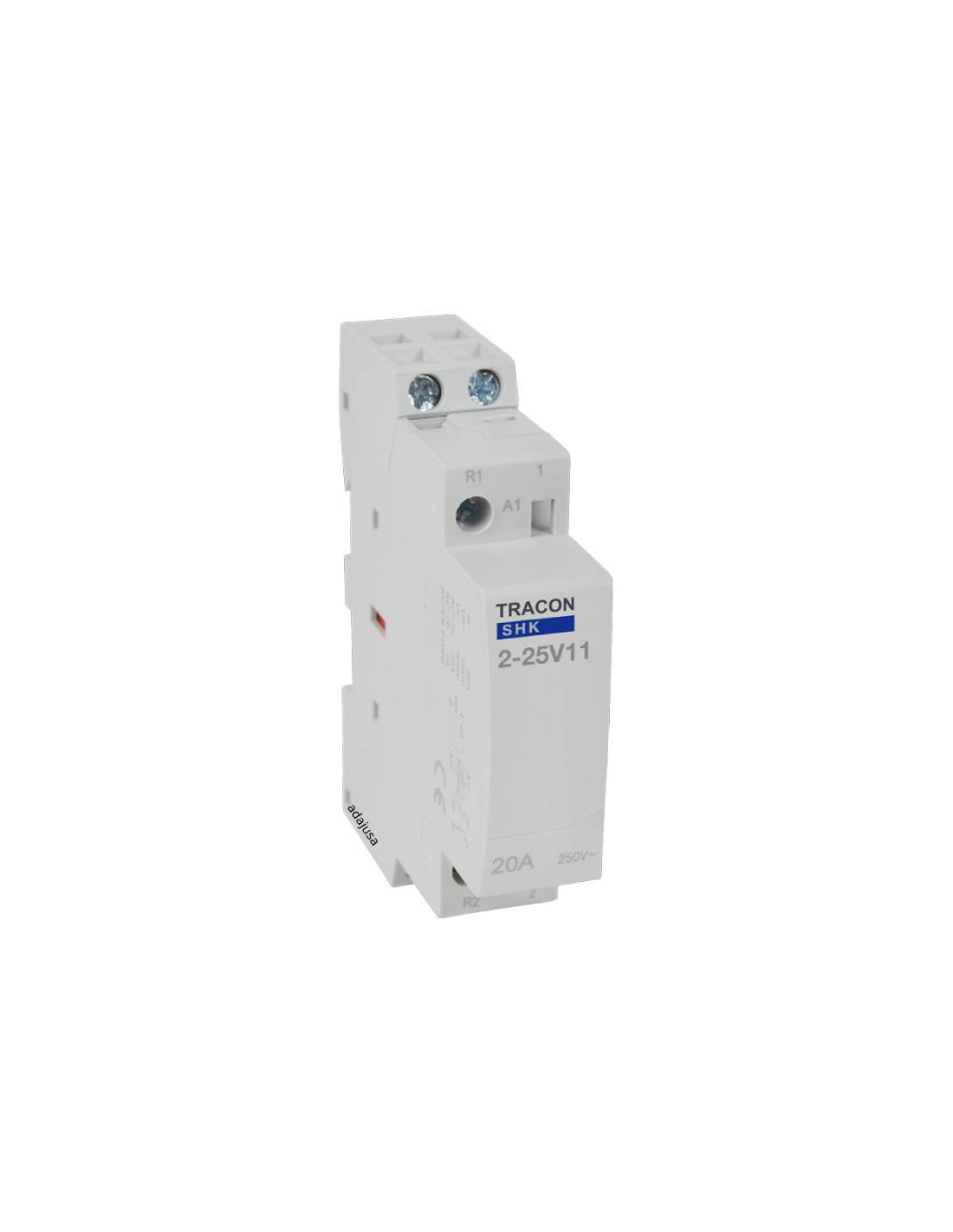

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Open single-phase modular contactor (2 poles), 25A in category AC-1/AC-7a, the contactor coil voltage is 230Vac. The main application of modular contactors is the control of loads in the domestic field, it allows the control of domestic systems, home automation, heating, lighting and air conditioning, it can also be used in industrial and general use applications.

Fixing via DIN rail and size 1 module (18mm).

Characteristics:

Manufacturer/Supplier: Tracon
Reference: SHK2-25
Number of contacts (poles): 2
Contact status: Normally open NO (2NO)
Rated voltage: 230Vac 50/60Hz
Nominal current in AC1/AC7a: 25A
Maximum contactor power in AC1/AC7a 230V: 5 kW
Maximum contactor power in AC3/AC7b 230V: 1.5 kW
Nominal insulation voltage (Ui): 500Vac
Electrical life: > 30000 cycles
Mechanical life: > 1000000 cycles
Operating temperature: -25ºC...+55ºC
Protection grade: IP20
Conductor section: 1 - 6mm²
Width size: 18mm (1 module)

Material for professional use, install in compliance with the regulations in force at the installation site.

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

Anexo instruções utilização elec

Download (414.22KB)

Annexe mode d'emploi elec.

Download (410.39KB)

Annex instructions for use elec.

Download (410.3KB)

Allegato istruzioni l'uso elec

Download (406.25KB)

Anhang Gebrauchsanweisung elec

Download (412.12KB)
