Block 4 front 3NO 1NC contacts for TR1K Series mini contactors

Name: Block 4 front 3NO 1NC contacts for TR1K Series mini contactors
Brand: TRACON
SKU: TR5KN31
Price: 5.9169 EUR
Availability: OutOfStock

€5.92 Tax included

€4.89 tax excl.

Block of 4 auxiliary contacts, 3 open contacts and 1 closed contact (3NO + 1NC) for front mounting on TR1K series contactors.

Reference: TR5KN31

ESUQEMATR5KN31

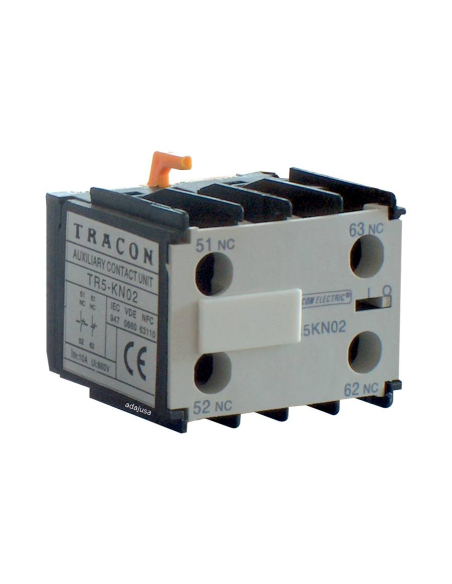

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Out of stock

No queries yet, leave the first!

Privacy

Shipments

Returns

Block of 4 auxiliary contacts for front mounting on mini contactor, the camera has 3 open contacts and 1 closed contact (3NO + 1NC).

This contact block is valid for TR1K series mini contactors.

Characteristics:

Manufacturer/Supplier: Tracon
Reference: TR5KN31
Contacts : 3 open contacts and 1 closed contact (3NO + 1NC)
Mounting mode: Front
Rated operating voltage (Ue): 660V
Rated insulation voltage (Ui): 690V
Thermal current rating (Ith): 10A
Nominal operating current (Ie): 2A
Working temperature: -25ºC to +50ºC
Protection grade: IP20

Dimensions:

TR5DIMENSIONS

Material for professional use, it must be installed by qualified personnel, respecting the regulations in force at the installation site.

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

Anexo instruções utilização elec

Download (414.22KB)

Annexe mode d'emploi elec.

Download (410.39KB)

Annex instructions for use elec.

Download (410.3KB)

Allegato istruzioni l'uso elec

Download (406.25KB)

Anhang Gebrauchsanweisung elec

Download (412.12KB)
