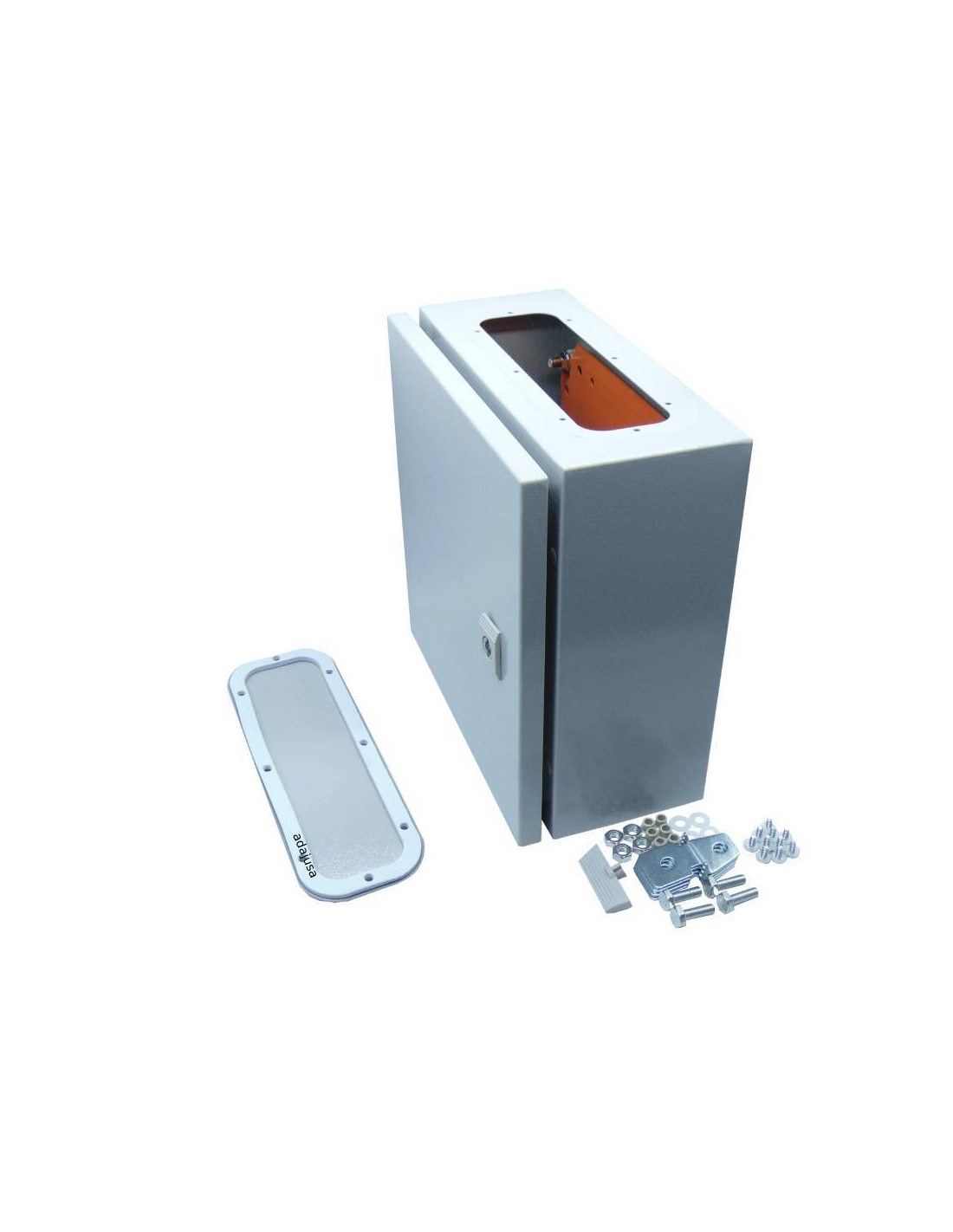

Electrical cabinet 600x500x200 mm TFE Series
Electrical cabinet 600x500x200 mm TFE Series
Electrical cabinet 600x500x200 mm TFE Series
Electrical cabinet 600x500x200 mm TFE Series
Electrical cabinet 600x500x200 mm TFE Series
Electrical cabinet 600x500x200 mm TFE Series

Electrical cabinet 600x500x200 mm TFE Series

€134.88 Tax included

€111.47 tax excl.

Sheet metal wall electrical cabinet (envelope) with mounting plate, specially designed for electrical distribution panels, machinery cabinets, automation and control cabinets, air conditioning and air conditioning, etc. The opening direction of the door can be changed. IP55 protection grade.

Plate and mounting brackets included.


Reference: TFE605020


Exterior dimensions:

  • Height: 600mm
  • Width: 500mm
  • Depth: 200mm



Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


These electrical cabinets are manufactured thinking about guaranteeing a long useful life of their electrical assemblies. They have an easy-open closing system, smooth turning of the door and a maximum opening to improve the scope of work in their assemblies, easily removable door and the possibility of changing the opening direction. Electrical cabinet manufactured under CE regulations and with IP55 protection degree.

Characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference: TFE605020
  • Dimensions: 600x500x200
    • Height: 600mm
    • Width: 500mm
    • Depth: 200mm
  • Material: Sheet steel
  • Color: Gray RAL 7035
  • Protection grade: IP55
  • Door with 2 hinges
  • Number of closures: 2
  • Closure type: Quarter turn, in polyamide
  • Fixation: Wall
  • Steel mounting plate included in delivery
  • Wall mounting brackets included in delivery
  • Regulations: CE, EN62208


The supply includes:

  • Cupboard
  • Mounting plate
  • Lock
  • Inlet plate and gaskets
  • Mounting Brackets
Adajusa TFE sheet metal cabinets breakdown





Material for professional use, install in compliance with the regulations in force at the installation site.
