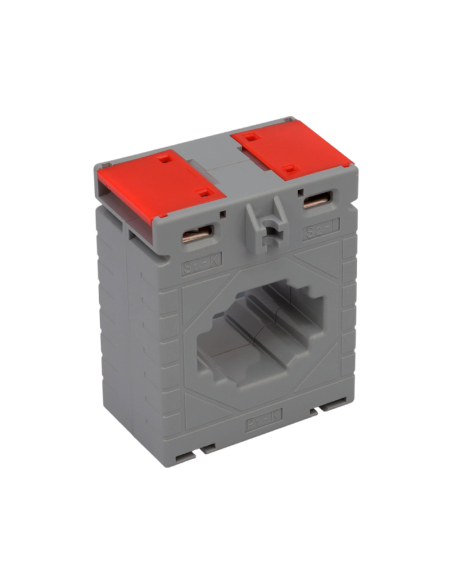

Current transformer 200/5A size 40 AV40SH Series
Current transformer 200/5A size 40 AV40SH Series

Current transformer 200/5A size 40 AV40SH Series

€14.91 Tax included

€12.32 tax excl.

Window type current transformer size 40 for use with measurement and control instruments. Encapsulated transformer for mounting on plate or frame, with cable or bus bar . Accuracy class 0.5. Current transformation ratio 200/5A.


Reference: AV40200SH


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Current transformer, with 200/5A ratio, for use with measurement and control elements. Window type transformer, the conductor passes through the central hole and can be a cable or bar. Supplied with mounting accessories.

The usual application is for measurement and control instruments, providing a transformation ratio of 200/5A, that is, when a current of 200A flows through the central conductor, 5A will flow through its secondary.

This current transformer is not suitable for safety applications.




Technical characteristics:
  • Manufacturer/Supplier: TRACON
  • Reference: AV40200SH
  • Ratio: 200/5A
  • Type: Window
  • Accuracy class: 0.5
  • Secondary power: 5VA
  • Nominal voltage: 660Vac
  • Nominal insulation voltage (Ui): 720V
  • Nominal thermal current (Ith): 50xIn
  • Nominal dynamic current (Idin): 2.5xIth
  • Safety factor: FS 5
  • Driver diameter: 30mm
  • Bar width: 40mm
  • Ambient temperature: -5ºC to 45ºC
  • Weight: 500g
  • Use: indoor
  • Standards: EN 60051, EN 61010








Professional use material, install in compliance with the regulations in force at the installation site.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Control and protection...
Electronic control relays

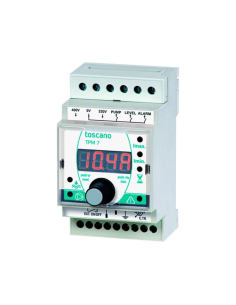

Control and protection relay TPM7-PUMP for motors and pumps 0.6 to 40A - Toscano
